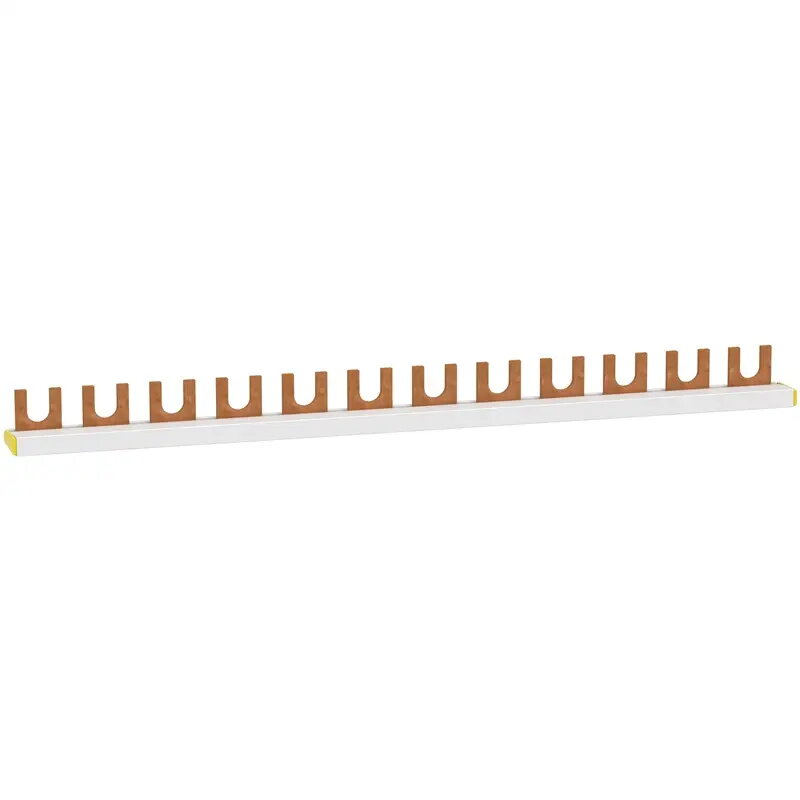

Schneider Acti9 Lite Busbar R9XFH112, 1P, 12 Modules, 10mm²

The Schneider Acti9 Lite R9XFH112 is a high-quality 1-phase comb busbar engineered for streamlined power distribution within electrical distribution boards. Designed to support modular devices, this busbar facilitates efficient and secure electrical connections, ensuring a professional and organized installation. With its robust construction and precise engineering, it serves as a reliable component for modern electrical systems, helping to reduce wiring complexity and improve overall panel safety.

Advantages

The primary benefit of using this busbar is the significant reduction in installation time and effort compared to traditional wiring methods. By providing a solid, pre-formed connection path, it minimizes the risk of loose connections and enhances the structural integrity of the electrical assembly. Its compact design allows for a clean layout, which simplifies future maintenance and troubleshooting tasks within the distribution board.

Suitable for

• Residential electrical distribution boards
• Commercial building power panels
• Modular device interconnection
• Professional electrical installations

When it may not be suitable

This busbar is specifically designed for 1-phase systems and is not compatible with 3-phase electrical configurations. It should not be used in applications requiring a higher current capacity than 63 A or in environments where the physical dimensions of the 12-module layout do not align with the specific panel configuration.

Key specifications

• Number of poles: 1P
• Number of modules: 12
• Cross-section: 10 mm²
• Rated current: 63 A
• Length: 220 mm

How to use

To install the busbar, ensure that the main power supply to the distribution board is completely disconnected. Align the teeth of the busbar with the terminals of the modular devices. Insert the busbar securely into the device terminals and tighten the terminal screws to the manufacturer's recommended torque settings to ensure a firm electrical contact. Verify that all connections are secure before restoring power to the system.

What to consider before purchase

• Verify the phase compatibility of your electrical system
• Ensure the number of modules matches your device layout
• Check the physical space available in the distribution board
• Confirm that the rated current meets your load requirements

Usage recommendations

Always adhere to local electrical codes and safety regulations during installation. It is recommended to use this busbar only with compatible Schneider Acti9 modular devices to ensure optimal performance and safety.
