SCHNEIDERE recessed distribution board Easy9 EU EZ9EUA212 2x12 modules IP40 IK07 white with transparent door

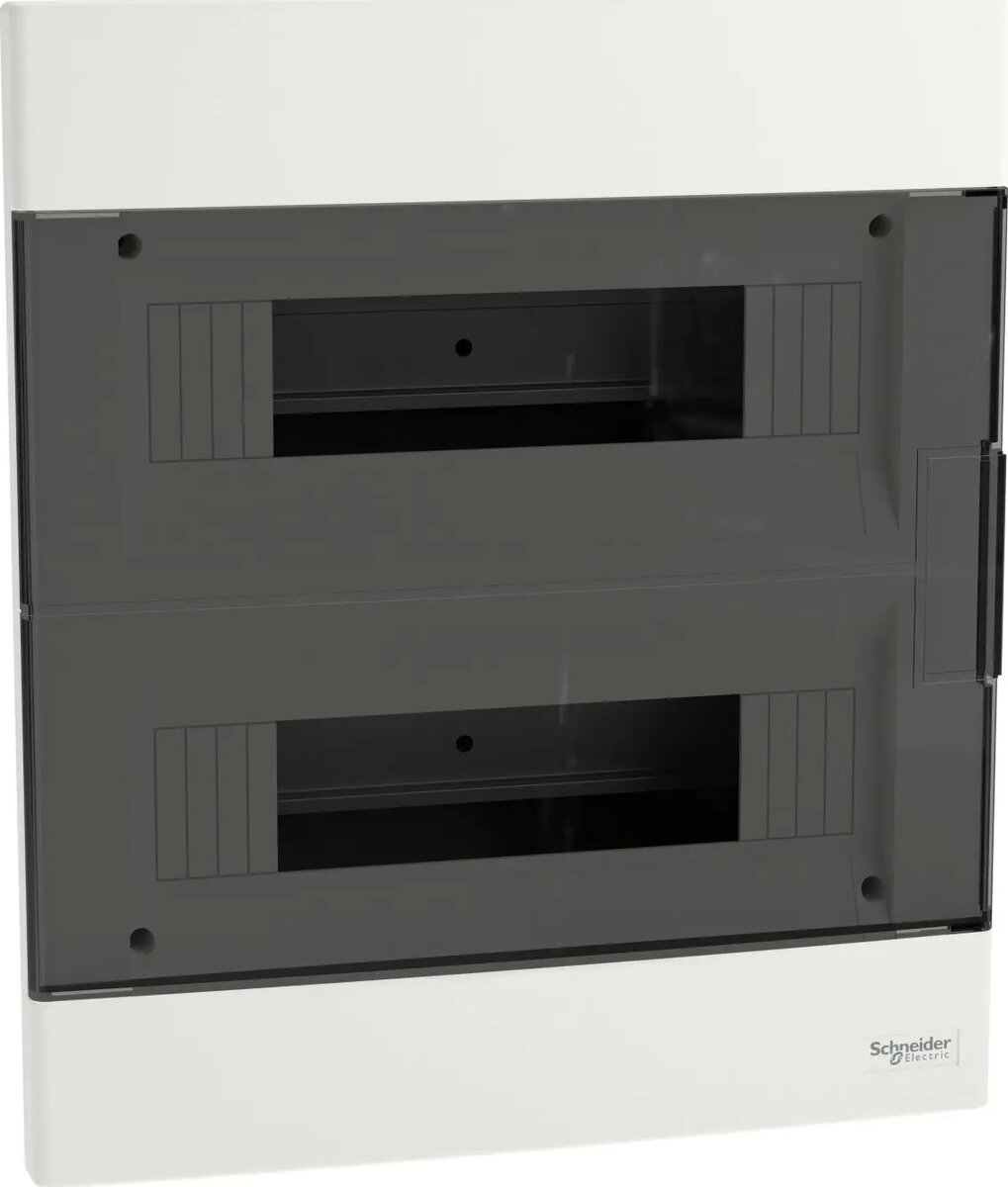

The SCHNEIDERE recessed distribution board Easy9 EU EZ9EUA212 is a flush-mounted enclosure designed to accommodate consumer units and DIN-rail devices. It provides two rows of 12 module spaces each (24 modules total) and features a white body with a transparent front door that allows installers and users to view switches and indicators without opening the cabinet. The enclosure has an IP40 protection rating against solid objects and an IK07 impact resistance rating, intended for indoor residential and light commercial electrical installations.

Advantages

This recessed distribution board offers organized space for circuit breakers, residual current devices and control modules while maintaining a compact flush appearance. The transparent door improves circuit visibility for quick checks, and the IK07 impact resistance helps protect internal components from mechanical shocks. The IP40 rating provides basic protection against solid intrusions appropriate for indoor environments.

Suitable for

• Residential electrical installations for housing breakers and RCDs
• Small offices and light commercial spaces requiring concealed distribution
• New builds and renovation projects where a flush-mounted board is preferred

Key specifications

• Module capacity: 2 rows × 12 modules (24 modules total)
• Mounting type: recessed / flush-mounted
• Protection rating: IP40 (protection against solid objects >1 mm)
• Impact resistance: IK07
• Color and door: white enclosure with transparent door for visual access
• Intended environment: indoor use (residential and light commercial)

How to use

Install the recessed distribution board into a prepared wall opening ensuring the enclosure is level and securely fixed to structural supports. Fit DIN-rail devices such as circuit breakers and RCDs into the available module spaces following applicable wiring standards and local electrical codes. Connect incoming and outgoing conductors to the appropriate terminals, observe correct phase and neutral arrangements, and ensure protection devices are rated for the intended circuits. Close the transparent door to protect internal components while retaining visibility.

Usage recommendations

Verify compliance with local electrical regulations and use a qualified electrician for installation and testing. For safe operation, choose breakers and RCDs with ratings suitable for the connected circuits and maintain clearance around the enclosure for ventilation and access.
