Mounting with Insulation Stop for Busbar 1–2 Poles SCHROFF 20100030

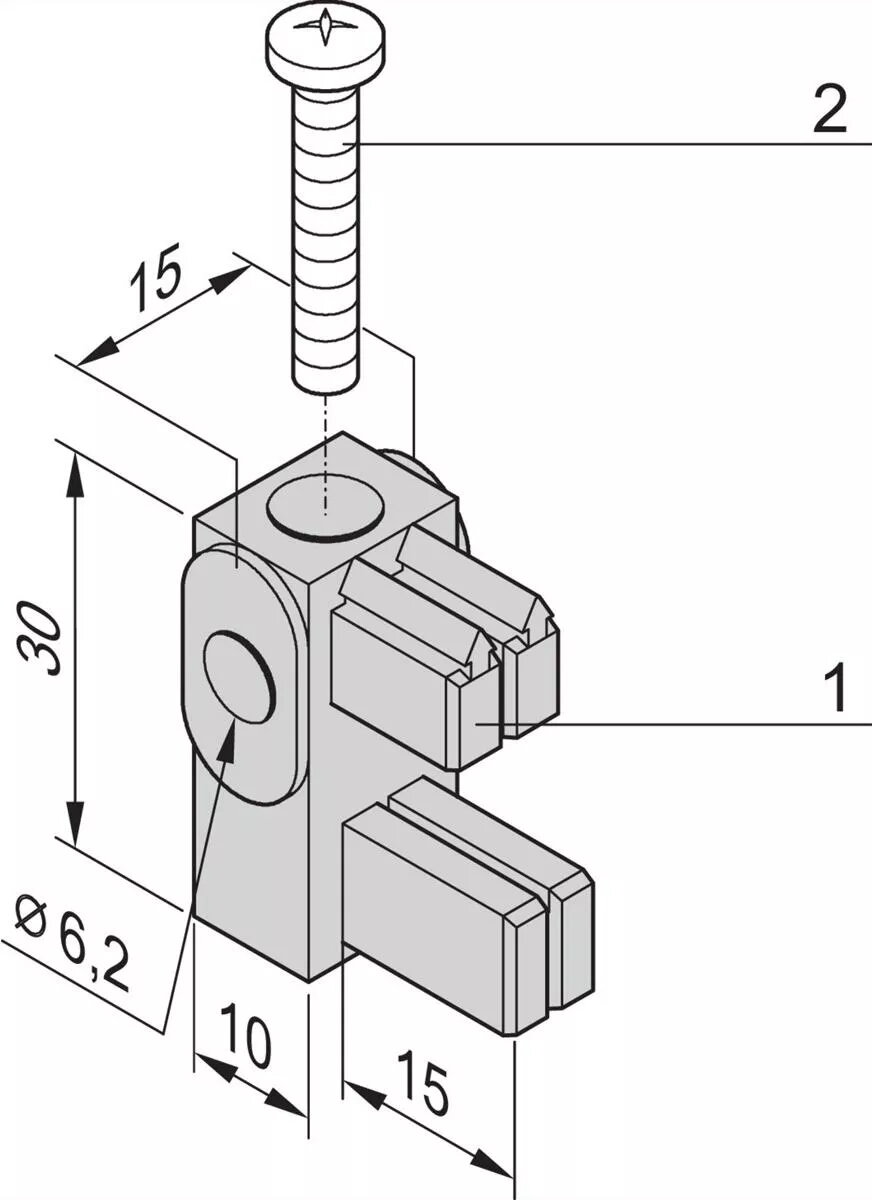

Mounting with Insulation Stop for Busbar 1–2 Poles SCHROFF 20100030 is a dedicated fixing solution designed to secure and insulate short busbar segments in electrical cabinets, switchgear and industrial enclosures. The component combines a mechanical mounting point with an integrated insulation stop to help maintain electrical separation and reduce risk of accidental contact on 1–2 pole busbar assemblies. It is intended for equipment-level installation where compact, reliable busbar fixing and defined insulation termination are required.

Advantages

The SCHROFF mounting with insulation stop provides a compact integrated solution that simplifies busbar routing and termination while providing a physical barrier to exposed conductive parts. Its design reduces the need for separate insulating sleeves or additional fixation hardware, enabling faster assembly and consistent insulation positioning. The component supports organised wiring and contributes to safe enclosure layouts by helping to maintain required clearances between live parts and grounded structures.

Suitable for

• Securing short busbar runs of 1–2 poles inside electrical cabinets
• Mounting and insulating busbar terminations in switchgear
• Use in industrial control enclosures where compact busbar fixation is needed
• Applications requiring defined insulation stops to prevent accidental contact

Key specifications

• Intended for busbar assemblies with 1–2 poles
• Combined mounting and insulation stop function
• Designed for use in electrical cabinets, switchgear and industrial enclosures
• Compact form factor suitable for space-constrained installations

How to use

Position the mounting with insulation stop on the panel or enclosure rail at the required location for the busbar run. Align the busbar so that the pole(s) sit against the integrated insulation stop, then secure the mounting to the enclosure using appropriate fasteners for the panel material. Ensure the busbar is fastened according to the assembly practice for the specific installation and that any electrical connections are tightened to the required torque. Verify that the insulation stop fully covers exposed conductive edges and that clearance distances comply with applicable electrical standards.

Usage recommendations

Use this mounting together with compatible busbar sizes and follow enclosure manufacturer guidance as well as local electrical codes. Inspect the insulation stop after installation for correct seating and absence of damage, and avoid modifying the part in a way that could compromise its insulating or mechanical properties.
