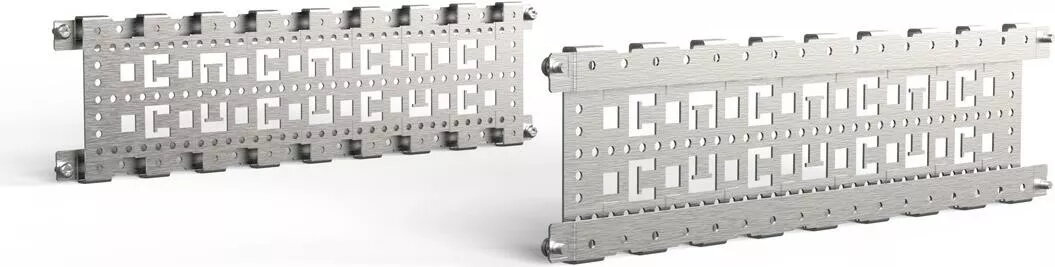

Depth Support SCHROFF 3-row 600T model 23130081

The SCHROFF 3-row 600T depth support model 23130081 is a structural component engineered for use with compatible SCHROFF enclosures and subracks. It provides reinforcement across three mounting rows in 600T systems, improving chassis rigidity and ensuring secure placement of heavy modules. The design supports alignment of cards and modules during installation and transport, helping maintain mechanical stability inside electronic cabinets and racks.

Advantages

This depth support offers robust mechanical reinforcement of the subrack frame, reducing deformation under load and during transit. It enables stable mounting of heavier modules by distributing forces across a broader area of the enclosure, which helps prevent misalignment of connectors and cards. The component is compatible with standard 600T mounting configurations and is manufactured to SCHROFF quality standards to ensure consistent fit and performance within matching systems.

Suitable for

• Strengthening subracks and enclosures based on 600T dimensions
• Securing heavy electronic modules and card cages
• Improving chassis rigidity for systems subject to vibration or transport
• Maintaining alignment of connectors and front panels during installation

Key specifications

• Configuration: three mounting rows for 600T systems
• Function: structural reinforcement and depth support inside subracks
• Compatibility: designed for use with SCHROFF enclosures and compatible 600T subrack installations
• Primary benefit: improved mechanical stability and alignment for mounted modules

How to use

Install the depth support into the subrack according to the enclosure manufacturer’s mounting instructions, aligning the three rows with the corresponding mounting rails or standoffs. Secure the support with appropriate fasteners in the recommended positions to ensure even load distribution. After mounting, proceed to install electronic modules or card assemblies, verifying that connectors and front panels are aligned and that the support engages the chassis as intended. Routine checks after transport or heavy usage are recommended to confirm fastener torque and positioning.

Usage recommendations

Use compatible SCHROFF mounting hardware and follow enclosure-specific installation guides to ensure correct fit and load distribution. When installing heavy modules, tighten fasteners incrementally and inspect alignment under load. For environments with significant vibration or frequent transport, perform periodic inspections to verify continued structural integrity.
