Rack bracket SCHROFF 19" Angle Type F without grip holes for stainless steel seal 4U O.GR. 2pcs

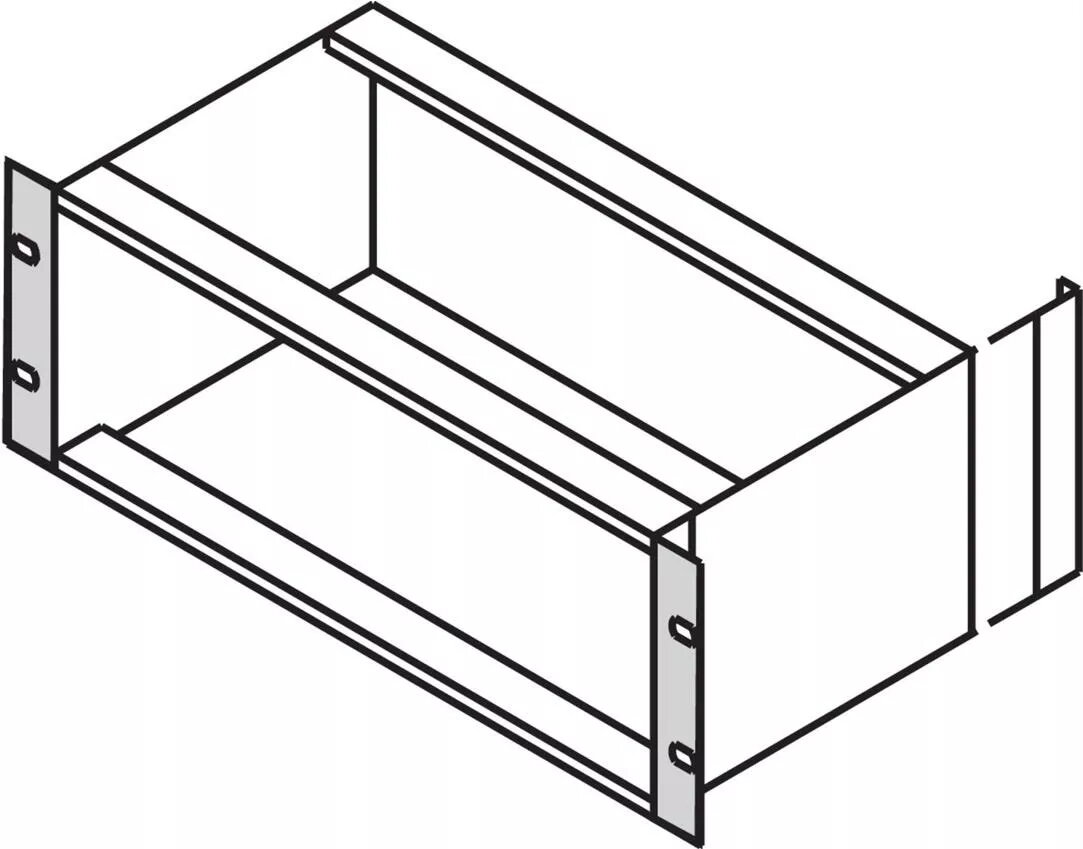

Pair of SCHROFF 19" rack angle brackets, Type F, without grip holes, supplied as two pieces for mounting equipment occupying 4U of rack height. These angle brackets are designed to allow secure fastening to 19" mounting rails while providing a provision for a stainless steel seal; the absence of grip holes keeps the front surface smooth for sealing and tamper evidence. Manufactured to fit standard 19" racks, the brackets are suitable for environments where sealed access or visible tamper control is required.

Advantages

These SCHROFF 19" angle brackets provide a robust metal mounting interface for rack-mounted equipment with a consistent 4U height. The Type F design without grip holes ensures compatibility with stainless steel seals and reduces potential points for accidental snagging or cable interference. Supplied as a matched pair, the brackets simplify installation and maintain alignment across the mounted unit. The metal construction delivers stable support and long-term dimensional integrity in standard rack systems.

Suitable for

• Mounting 4U devices in 19" server or network racks
• Applications requiring sealed or tamper-evident rack access
• Secure installations in data centers, telecom cabinets, and industrial racks
• Retrofit or replacement of existing angle brackets in compatible rack frames

Key specifications

• Form factor: 19" rack angle bracket, Type F
• Mounting height: 4U per bracket pair
• Design: without grip holes to enable stainless steel seal application
• Quantity: set of 2 matching brackets
• Material characteristics: metal construction suitable for rack mounting (corrosion resistance dependent on finish)

How to use

Position the two angle brackets on the front mounting rails of a compatible 19" rack at the required U positions. Secure each bracket to the rack rails using appropriate rack screws or fastening hardware for the rack type. Mount the equipment onto the brackets, ensuring the unit occupies the intended 4U space and that alignment is correct before final tightening. After installation, apply the stainless steel seal through the designated sealing point or over the bracket interface according to the seal manufacturer's instructions to provide tamper evidence.

Usage recommendations

Verify rack rail compatibility and screw type prior to installation; use torque values recommended for rack hardware to avoid deformation. For sealed applications, follow stainless steel seal instructions to ensure proper placement and tamper visibility. If corrosion resistance is required, confirm the bracket finish or consider additional protective coating consistent with the installation environment.
