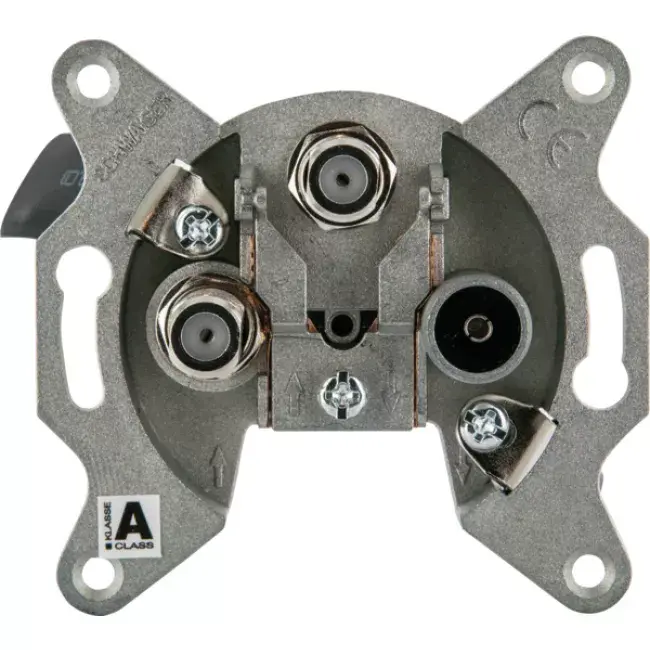

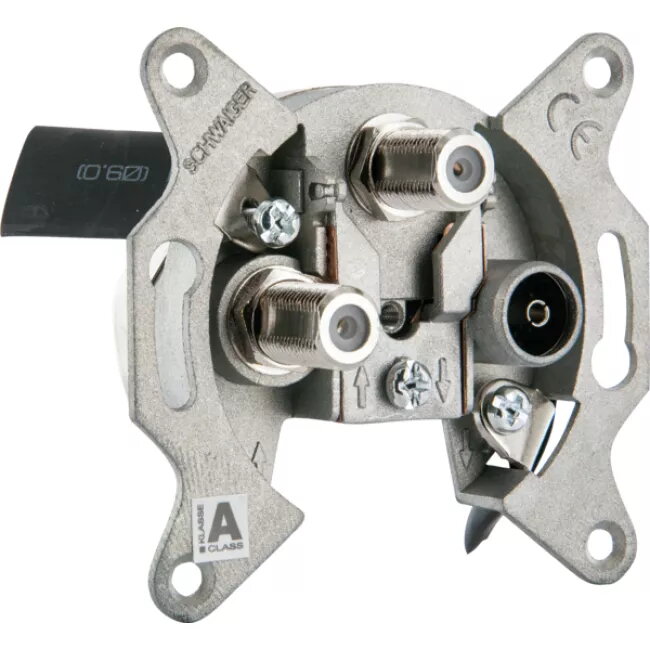

Socket outlet SAT TV Radio Schwaiger DSE652 531

The Schwaiger DSE652 531 socket outlet integrates SAT, TV and Radio connections into a compact wall-mounted unit suitable for residential and professional installations. With a narrow width of 70 mm and a shallow depth of 22 mm, the outlet is intended for space-saving installation in standard flush-mounted boxes or surface-mounted housings where a combined coaxial termination for satellite, terrestrial television and FM/DAB radio is required.

Advantages

This combined SAT TV Radio socket outlet offers a consolidated connection point for multiple coaxial signals, reducing the need for separate plates and saving space on the wall. The compact dimensions and flat profile simplify installation in tight cavities and behind furniture. The device is supplied as a single socket outlet in display packaging, making it convenient for stock handling and on-site selection by professionals and DIY users alike.

Suitable for

• Residential living rooms and bedrooms requiring combined SAT, TV and radio connections
• Hotel rooms or hospitality areas where multiple coaxial services are provided
• Small commercial premises and offices with shared coaxial distribution
• Retrofit and renovation projects where wall space is limited

Key specifications

• Functions: Satellite (SAT), Terrestrial TV, FM/DAB Radio
• Dimensions (W x D x H): 70 mm x 22 mm x 66 mm
• Mounting type: wall outlet suitable for standard installation boxes or surface housings
• Connections: coaxial termination points for SAT, TV and Radio

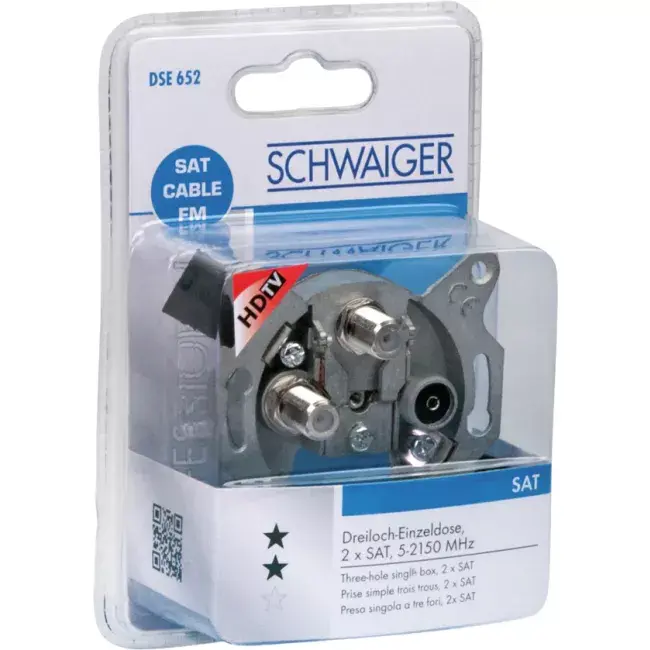

• Packaging: single socket outlet in display packaging

How to use

Install the socket outlet into the appropriate flush-mounted box or compatible surface housing following local electrical and installation regulations. Terminate the incoming coaxial cables for satellite, terrestrial television and radio onto the corresponding connectors on the rear of the outlet, ensuring secure screw or push-fit connections as designed. After wiring, attach the outlet to the box and fix the cover plate. Test each service (SAT, TV, Radio) with the respective receiver or radio to verify signal continuity and correct termination.

Usage recommendations

Use high-quality coaxial cables and maintain proper shielding and grounding for satellite and terrestrial installations. If signal levels are weak or multiple outlets are used in one installation, consider the use of amplifiers or distribution amplifiers and consult a qualified installer to avoid signal loss or interference.
