LCD Console ATEN 17.3" Widescreen DVI/HDMI

Name: LCD Console ATEN 17.3" Widescreen 30140670
Brand: Secomp
SKU: 1926125
Price: 1409.99 EUR
Availability: InStock

JBL – powerful sound always with you

JBL speakers and headphones for pure and deep sound!

LCD Console ATEN 17.3" Widescreen DVI/HDMI Full HD

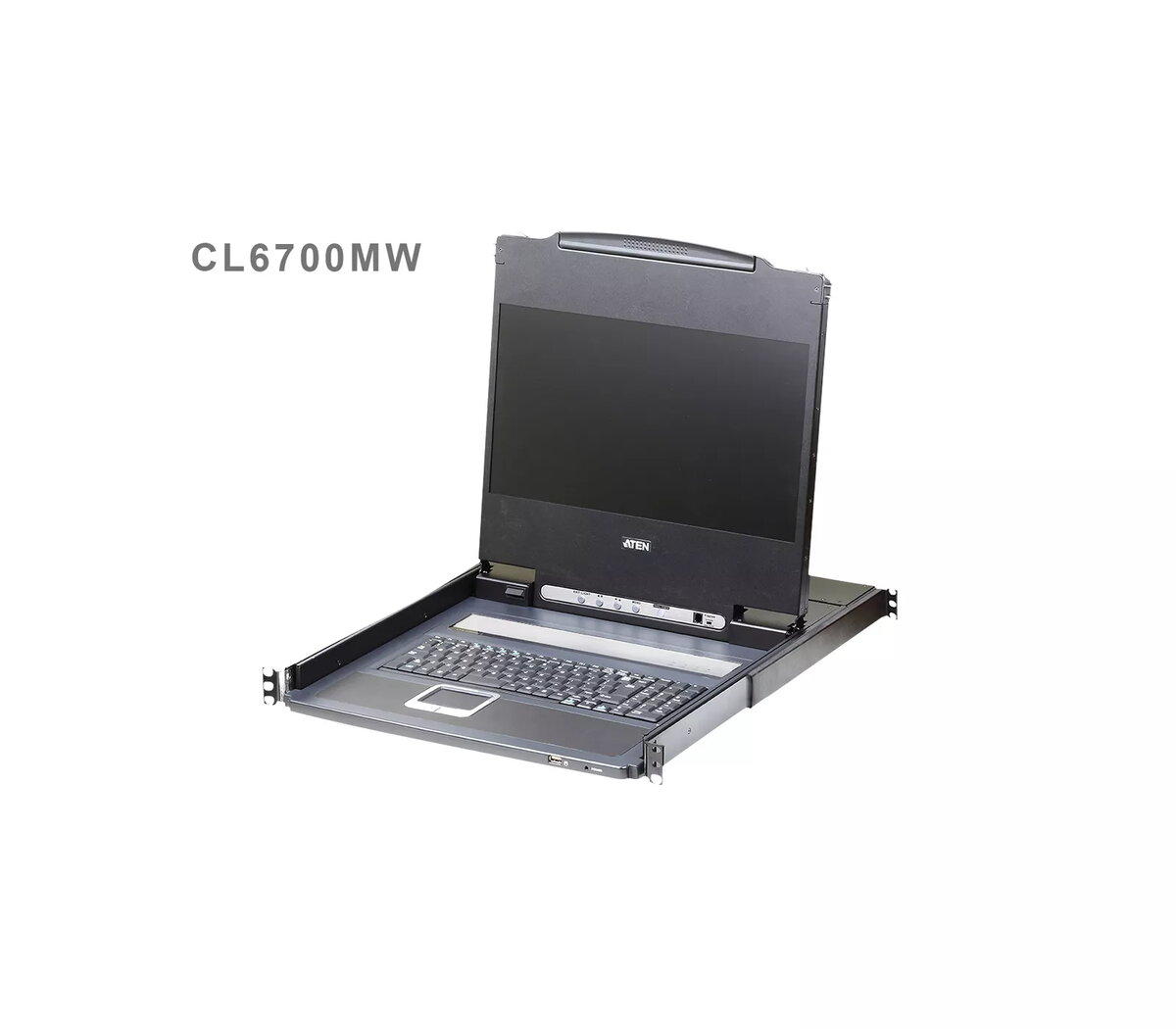

LCD Console ATEN 17.3" Widescreen DVI/HDMI Photo 1

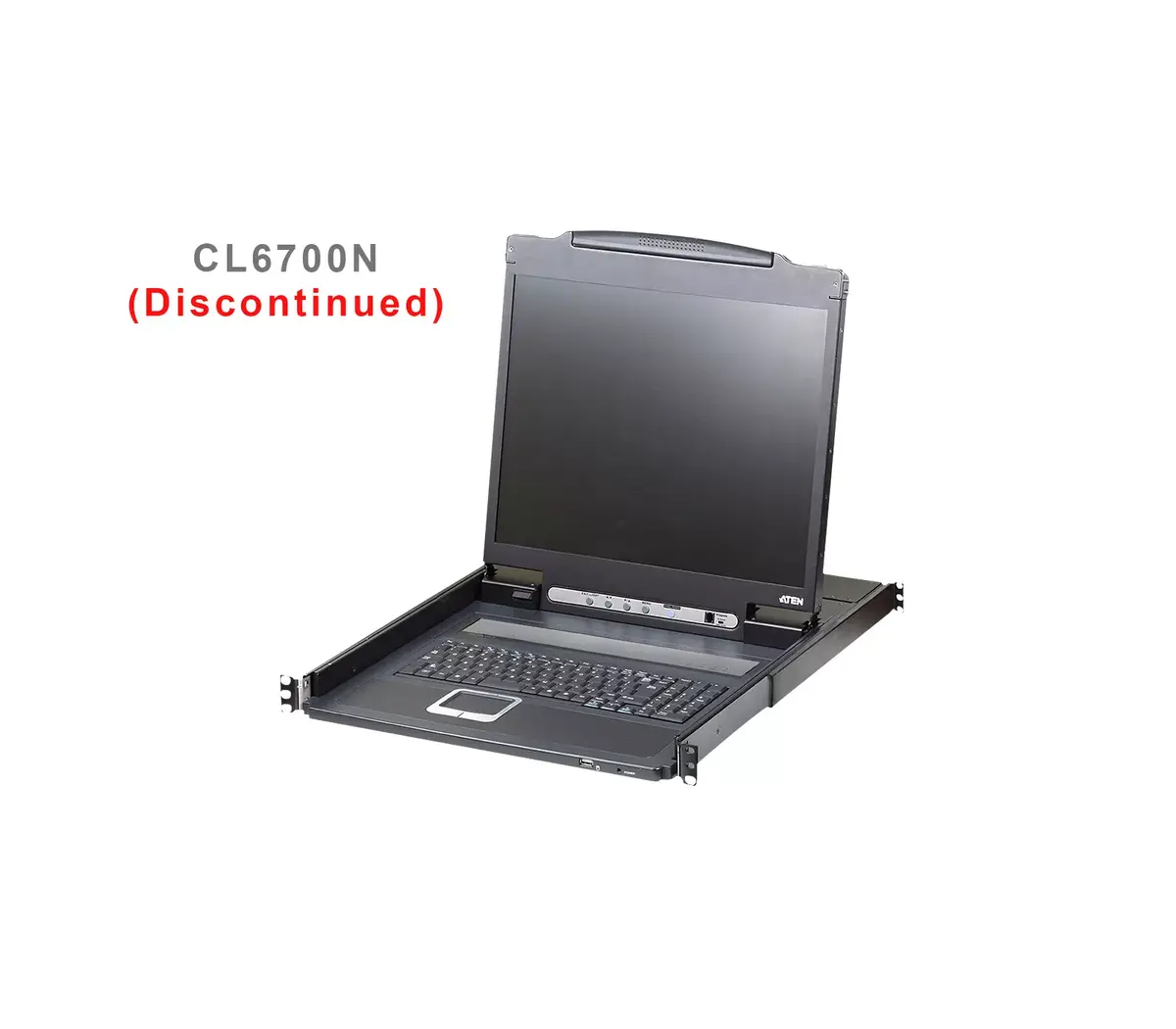

LCD Console ATEN 17.3" Widescreen DVI/HDMI Photo 2

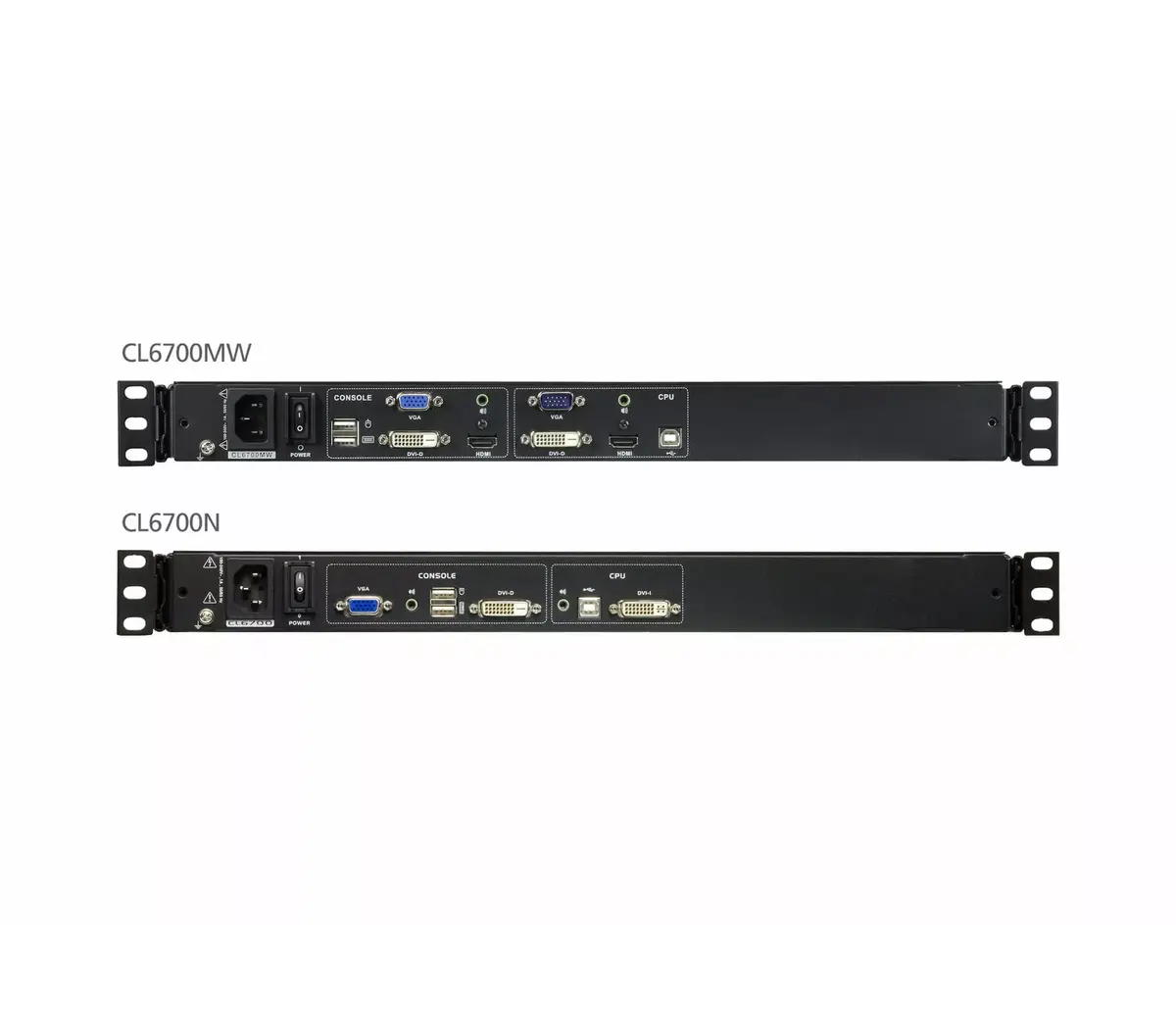

LCD Console ATEN 17.3" Widescreen DVI/HDMI Photo 3

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The ATEN 17.3" Widescreen LCD Console features a Full HD resolution of 1920 x 1080 pixels, ensuring clear and vibrant visuals. It supports DVI-D, HDMI, and VGA video ports, making it versatile for various setups. With a USB keyboard and mouse port, it offers easy connectivity. The console is housed in a durable metal casing and fits in a 1U rack space, making it ideal for data centers. Its AC power source supports a wide input voltage range of 100-240 V.

Available for order: 5 pcs.

Warranty: 2 Years

SKU: 1926125

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

13.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

13.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

16.07.2026 {{selectedOffer.courierDeliveryString}}

From 12.49 € (Weight: 15.72 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Locker

16.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Leasing for legal entities

Find out more Hide details

Leasing for legal entities: from 49.07 euros per month

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The CL6700 LCD console integrates a 17.3" LED-backlit widescreen panel, full keyboard and touchpad in a 1U rack-mountable sliding housing with audio support. Designed to provide front-end access to compatible KVM switches, the module closes flat and slides into the rack, saving space in data centers and server rooms. Kit contents include the CL6700 console with standard rack-mount kit, a DVI-D/USB/Audio KVM cable (1.8 m), a power cord, a firmware upgrade cable and user instructions. The unit supports DVI-D, HDMI and VGA inputs and offers Full HD 1920 x 1080 resolution with AC power input 100–240 V.

Advantages

The ATEN 17.3" widescreen LCD console provides clear Full HD visuals and a compact 1U form factor for efficient rack use. Integrated keyboard and touchpad reduce the need for separate peripherals while the sliding housing allows quick access to multiple servers. Multiple video input options (DVI-D, HDMI, VGA) and USB peripheral support ensure compatibility with various systems. The metal casing and included rack-mount kit provide durable, tool-free installation in professional environments.

Suitable for (tasks / use cases)

Server management in data centers and server rooms
Front-end access to KVM switches for IT maintenance
Space-constrained rack environments requiring a 1U console
Environments needing Full HD monitoring and multimedia audio support

Key specifications

Panel size: 17.3" widescreen LED-backlit LCD
Resolution: Full HD 1920 x 1080
Video ports: DVI-D, HDMI, VGA
Peripheral ports: USB keyboard/mouse support
Form factor: 1U rack-mountable sliding console with metal housing
Power: AC 100–240 V
Included accessories: KVM cable (DVI-D/USB/Audio, 1.8 m), power cord, firmware upgrade cable, rack-mount kit, user instructions

How to use

Install the CL6700 module into a 1U rack slot using the supplied rack-mount kit and secure it according to the instructions. Connect the console to a compatible KVM switch or directly to a host using the provided DVI-D/USB/Audio cable; use HDMI or VGA cabling if required by the host. Connect the power cord to an appropriate AC source (100–240 V). Slide the module out to access the keyboard, touchpad and display. Use standard keyboard and mouse controls to operate connected systems and switch video input sources as needed.

Usage recommendations

For reliable operation, use the supplied KVM cable and ensure firmware is updated via the included firmware upgrade cable. Keep ventilation clear around the 1U unit and follow rack weight and mounting guidelines. Use compatible KVM switches for full functionality of hotkey and switching features.

Specifications

Mouse port type:: USB
Keyboard port type:: USB
Video port type:: DVI-D/HDMI/VGA
Weight:: 11.62 kg
Number of computers controlled:: 1
Product colour:: Black

All features

Ports & interfaces

USB connector type:: USB Type-A, USB Type-B
VGA (D-Sub) ports quantity:: 2
DVI-D ports quantity:: 2
Keyboard port type:: USB
Mouse port type:: USB
Video port type:: DVI-D/HDMI/VGA
Number of computers controlled:: 1
HDMI ports quantity:: 2
Console ports:: 3.5mm headphone, DVI-D, HDMI, USB A, VGA (D-Sub)
USB 2.0 Type-B ports quantity:: 1

Performance

Maximum resolution:: 1920 x 1080
HD type:: Full HD
DDC2B support:: Yes
DDC/DDC2 supported:: Yes
Video bandwidth:: 60 Hz

Design

Rack mounting:: Yes
LED indicators:: Y
Product colour:: Black
Rack capacity:: 1U
Housing material:: Metal

Display

Display:: LCD
Display diagonal: iagonal of the visible part of the screen expressed in centimeters and inches.: 17.3 "
Built-in display:: Yes

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.: 19.4 W
Power source:: AC
Input voltage:: 100-240
Input current:: 1
AC input frequency:: 50 - 60

Operational conditions

Operating relative humidity (H-H):: 0 - 80
Storage temperature (T-T):: -20 - 60
Operating temperature (T-T):: 0 - 40

Other features

Compatibility:: KE6920R, KE6920T, KE6922R, KE6922T, CE611, CE620, KE6900AR, KE6900AT, KE6940AR, KE6940AT, KE6910, KE6910R, KE6910T, KE6912, KE6912R, KE6912T, KE6900ST, KE6900, KE6900R, KE6900T, KE6940, KE6940R, KE6940T, 2L-5001U, 2L-5002U, 2L-5003U, 2L-7D02DH, 2L-7D02U, 2L-7D02UH, 2L-7D03U, 2L-7D05U, 2L-5001U, 2L-5002U, 2L-5003U, 2L-7D02DH, 2L-7D02U, 2L-7D02UH, 2L-7D03U, 2L-7D05U, CN9600, CS1308, CS1316, CS1768

Packaging data

Package weight:: 14670 g
Package depth:: 718 mm
Package height:: 135 mm
Package width:: 668 mm

Weight & dimensions

Weight:: 11.62 kg
Height:: 44 mm
Width:: 589.2 mm
Depth:: 480 mm

Logistics data

Master (outer) case height:: 135 mm
Master (outer) case width:: 668 mm
Master (outer) case gross weight:: 14670 g
Master (outer) case length:: 718 mm
Products per master (outer) case:: 1 pc(s)
Master (outer) case net weight:: 11620 g

Packaging content

Manual:: Yes

System requirements

Windows operating systems supported:: Y
Mac operating systems supported:: Y
Linux operating systems supported:: Y

Hide Show all

Instructions

mmo_36072481_1627030906_2408_30023.pdf

secomp-30140670-1926125.pdf

Description

Instructions

mmo_36072481_1627030906_2408_30023.pdf

secomp-30140670-1926125.pdf

Machine translation. Load original

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

Customer reviews

Show all reviews

Customer questions

FAQ

How much does the LCD Console ATEN 17.3" Widescreen DVI/HDMI cost, and is it available for purchase?

The price is 1,409.99 € (valid at the time of publication and already includes all taxes). The item is available for order — 5 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 13.07.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Bank transfer, Leasing for legal entities. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All Secomp products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized Secomp service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: mouse port type, keyboard port type, video port type, weight, number of computers controlled, product colour, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.

Where can I download the instructions for LCD Console ATEN 17.3" Widescreen DVI/HDMI?

You can download the instructions in PDF format from the “Instructions” section on the product description page. The file contains complete information about installation, setup, and usage.
