Siemens 3LD2044-0TK53 3-Pole 16A Rotary Disconnect Switch with Door Coupling

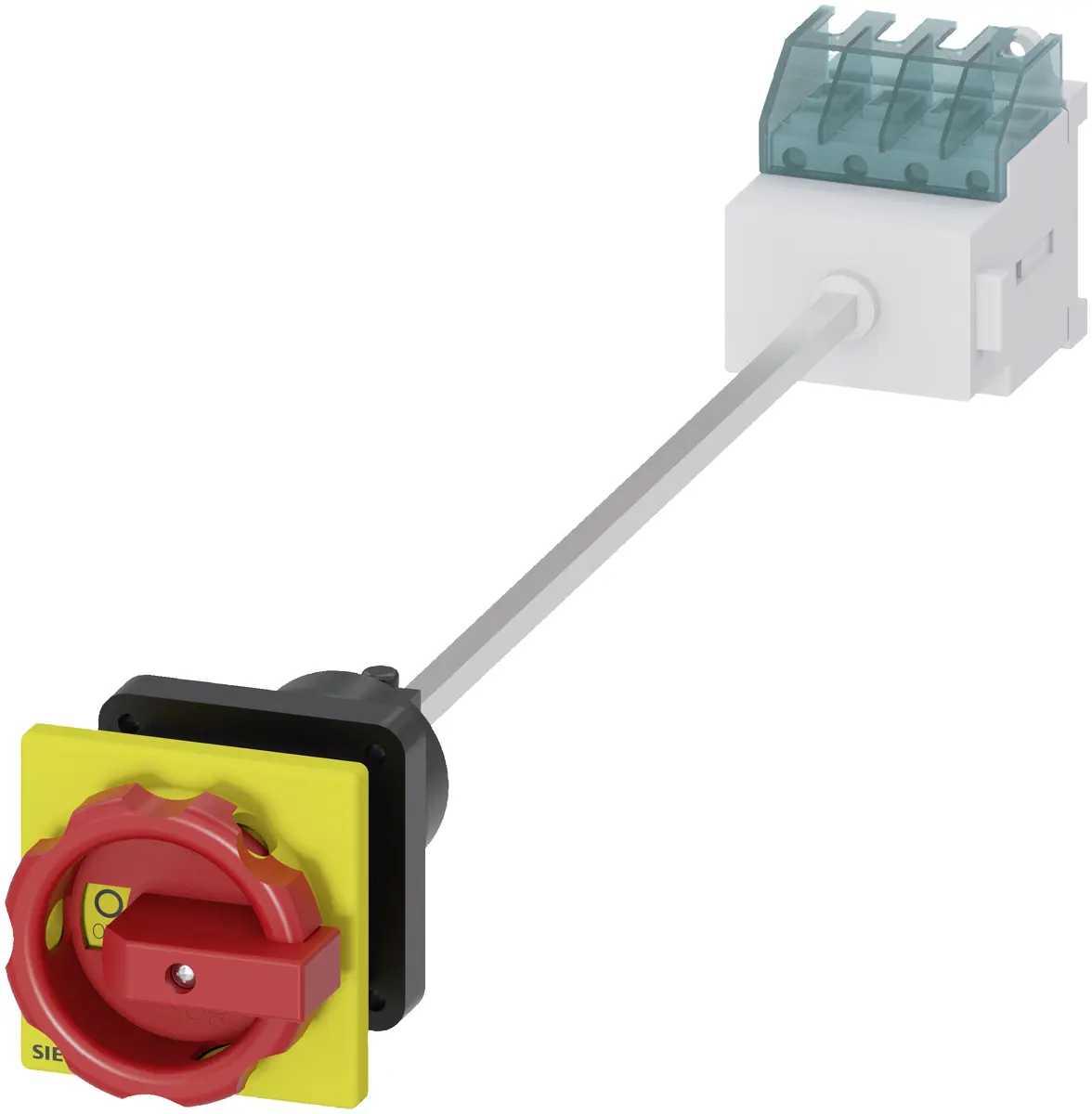

The Siemens 3LD2044-0TK53 is a robust 3-pole rotary disconnect switch engineered for reliable power isolation in demanding electrical environments. Rated for 16A, this device serves as a critical safety component, allowing for the secure disconnection of machinery and electrical circuits during maintenance or emergency situations. The unit features a distinctive yellow and red door-coupling handle, which ensures high visibility and intuitive operation for personnel. With an IP65 protection rating, the switch is effectively shielded against dust ingress and water jets, making it suitable for installation in harsh industrial settings.

Advantages

This rotary disconnect switch offers exceptional durability and safety, providing a clear visual indication of the power status through its high-contrast handle design. The door-coupling mechanism allows for external operation while the electrical components remain safely enclosed within the control panel. Its compact design facilitates easy integration into existing systems without requiring significant space, while the high ingress protection rating ensures long-term reliability even in environments exposed to moisture or debris. The robust construction supports frequent switching operations, maintaining consistent performance over the product's lifespan.

Suitable for

• Industrial machinery power isolation
• Control panel emergency shutdown systems
• Maintenance lockout procedures
• Electrical distribution boards

This switch may not be suitable for high-voltage applications exceeding its rated capacity or for environments requiring specific explosion-proof certifications. It is also not intended for use in circuits where the current load consistently exceeds 16A, as this could lead to overheating or premature failure of the internal contacts.

Key specifications

• Number of poles: 3
• Rated current: 16A
• Protection rating: IP65
• Handle color: Yellow/Red
• Mounting type: Door coupling
• Weight: 0.425 kg

How to use

The switch is designed for mounting on the door of a control cabinet, with the switching mechanism connected to the internal electrical circuit. To operate, rotate the handle to the desired position to either connect or disconnect the power supply. The handle is designed to be easily accessible and can be locked in the off position to ensure safety during maintenance tasks. Ensure that the installation is performed by a qualified professional in accordance with local electrical regulations to guarantee proper alignment and secure connection of the door coupling.

What to consider before purchase

• Verify that the 16A rating is sufficient for your specific load requirements.
• Ensure the door-coupling depth is compatible with your enclosure dimensions.
• Confirm that the IP65 rating meets the environmental demands of your installation site.
• Check the physical space available within the control panel for mounting the switch body.

Usage recommendations: Regularly inspect the handle and the enclosure seal to ensure the IP65 protection remains intact. Periodically test the switching mechanism to confirm smooth operation and verify that all terminal connections remain tight to prevent electrical resistance issues.
