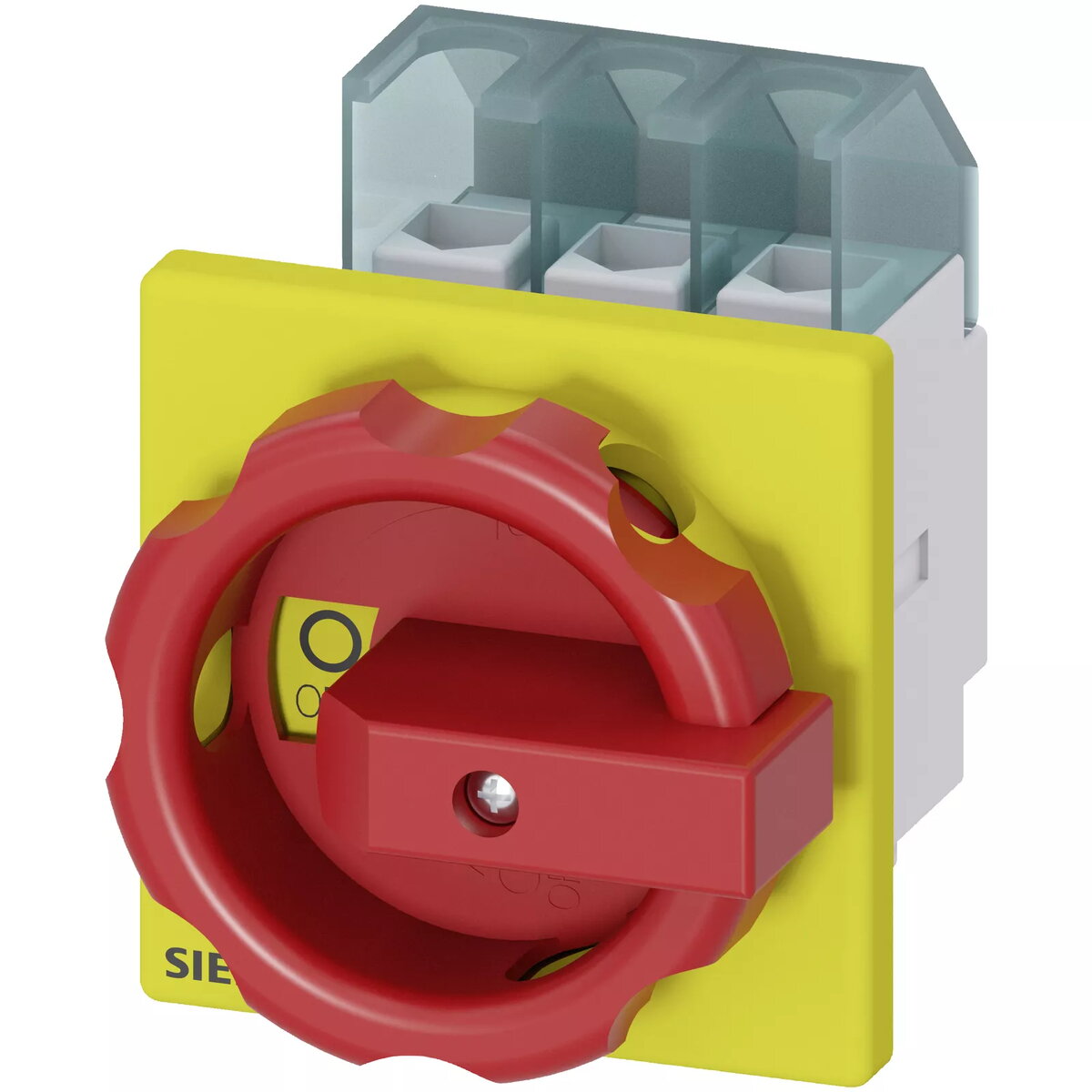

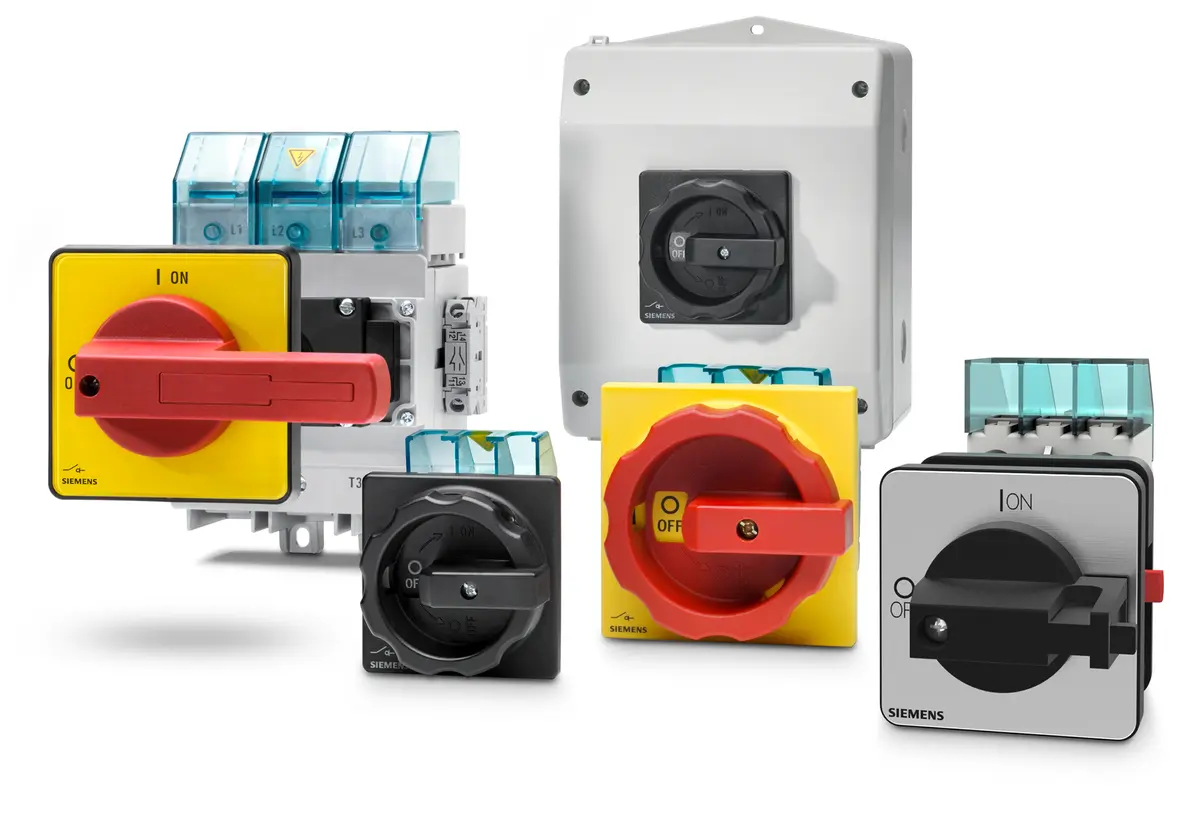

Siemens 3LD Switch Disconnector 3P 690 V IP65 640 A

Nominal current output:

25 A

Minimum order quantity:

1 pc(s)

AC input frequency:

50 - 60

Construction type: The way in which the product is constructed.

Fixed built-in technique

Breaking capacity:

640 A

Number of modules:

1

Coil voltage:

690 V

Coil voltage (max):

6000 V

Battery included:

No

Maximum order quantity:

1 pc(s)

Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.

CE

Main circuit connection type:

Frame clamp

Number of auxiliary NC contacts:

0

Number of auxiliary NO contacts:

0

Control element type:

Short rotary handle

Rated continuous current (Iu):

25 A

Number of auxiliary change-over contacts:

0

Integrated motor drive:

No

Optional motor drive:

No

Rated operational power (AC-3, 400V):

8 kW

Number of modular spacings:

3

Design

Certification:

CSA, UL, VDE, EAC, CE, LRS

Product colour: The colour e.g. red, blue, green, black, white.

Multicolour

International Protection (IP) code: The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".

IP65

Features

Number of poles:

3P

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

0.2 kg

Height: The measurement of the product from head to foot or from base to top.

84 mm

Width: The measurement or extent of something from side to side.

67 mm

Depth: The distance from the front to the back of something.

92.5 mm

Packaging data

Package weight: Weight of the packaged product.

203 g

Package depth: The distance from the front to the back of the packaging.

92 mm

Package height: The distance from the top to the bottom of the packaging.

70 mm

Package width: The distance from one side of the packaging to the other.

80 mm
