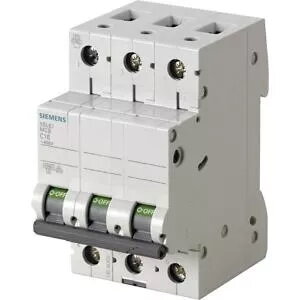

Siemens 5SL6340-7 circuit breaker 3

Minimum order quantity:

1 pc(s)

Mounting depth: The distance between where the back of the device is mounted to (usually the wall) and the front of the device.

70 mm

Ambient temperature range:

-25 - 45

Overvoltage category:

CAT III

Battery included:

No

Pollution degree:

2

Total power loss:

9.9 W

Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.

RoHS, CE

Number of modular spacings:

3

Voltage type:

AC

Release characteristic:

C

Connectable solid conductor cross-section:

0.75 - 25

Connectable stranded conductor cross-section:

0.75 - 25

Switching neutral conductor:

No

Rated short-circuit breaking capacity (Icn, EN 60898, 230V):

6 kA

Rated short-circuit breaking capacity (Icn, EN 60898, 400V):

6 kA

Rated short-circuit breaking capacity (Icu, IEC 60947-2, 400V):

6 kA

Rated short-circuit breaking capacity (Icu, IEC 60947-2, 230V):

6 kA

Current limiting class:

Class 3

Additional equipment:

Yes

Design

International Protection (IP) code: The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".

IP20

Power

Rated current:

40 A

Input frequency: The frequency (Hz) which is required to power the product.

50

Rated voltage:

400 V

Packaging data

Package weight: Weight of the packaged product.

458.5 g

Package depth: The distance from the front to the back of the packaging.

96 mm

Package height: The distance from the top to the bottom of the packaging.

84 mm

Package width: The distance from one side of the packaging to the other.

54 mm

Features

Number of poles:

3
