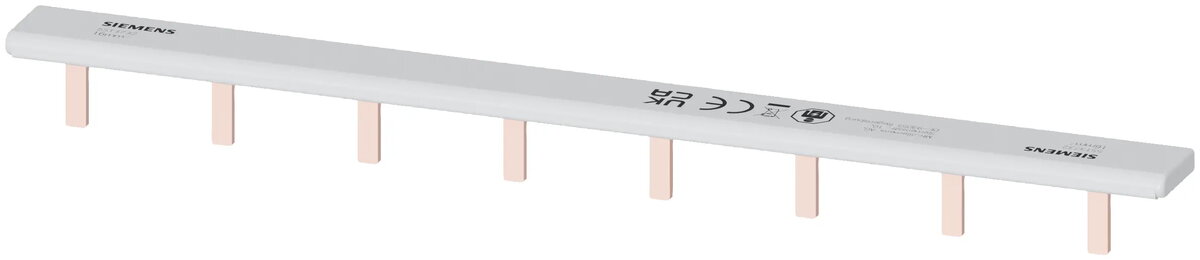

Siemens 5ST3732 Pin Busbar, 1-Phase, 10mm², Length 214mm

The Siemens 5ST3732 is a high-quality 1-phase pin-type busbar engineered for efficient and reliable power distribution within electrical switchboards. With a cross-section of 10mm² and a total length of 214mm, this component is designed to facilitate secure electrical connections for modular devices, including miniature circuit breakers and residual current devices. It serves as a professional solution for bridging multiple DIN-rail mounted components, ensuring a clean, organized, and safe installation environment.

Advantages

This busbar offers significant benefits for electrical installations by providing a standardized and touch-safe method for power distribution. Its design allows for easy and convenient installation, reducing the time required for wiring complex switchgear. The busbar can be cut to the desired length, offering flexibility for various panel configurations. Furthermore, the integrated touch protection enhances safety during both the installation process and subsequent maintenance, minimizing the risk of accidental contact with live parts.

Suitable for

• Connecting multiple miniature circuit breakers in a single row
• Power distribution in residential and commercial electrical switchboards
• Bridging residual current devices with modular components
• Professional electrical installations requiring DIN-rail mounted equipment

When it may not be suitable

This busbar is specifically designed for 1-phase systems and cannot be used for 3-phase power distribution. It is also not suitable for applications requiring a cross-section larger than 10mm² or for installations where the total length exceeds the capacity provided by the 214mm bar, unless multiple bars are correctly joined according to manufacturer guidelines.

Key specifications

• Phase configuration: 1-phase
• Cross-section: 10mm²
• Total length: 214mm
• Type: Pin-type busbar
• Safety features: Integrated touch protection
• Compatibility: Suitable for miniature circuit breakers and residual current devices

How to use

To use the Siemens 5ST3732, first ensure that the power supply to the switchboard is completely disconnected. Measure the required length for your specific configuration and cut the busbar if necessary, ensuring that the end caps are properly re-applied to maintain touch safety. Insert the pins into the terminals of the modular devices mounted on the DIN rail. Tighten the terminal screws securely to ensure a low-resistance electrical connection. Verify that all connections are firm and that the busbar is correctly seated before restoring power.

What to consider before purchase

• Verify that your electrical system is 1-phase
• Check if the 10mm² cross-section meets the current requirements of your circuit
• Ensure the 214mm length is sufficient for the number of devices you intend to bridge
• Confirm compatibility with your specific brand and model of circuit breakers

Usage recommendations

Always ensure that the installation is performed by a qualified electrician in accordance with local electrical codes and safety regulations. Regularly inspect the connections for any signs of thermal stress or loosening over time.
