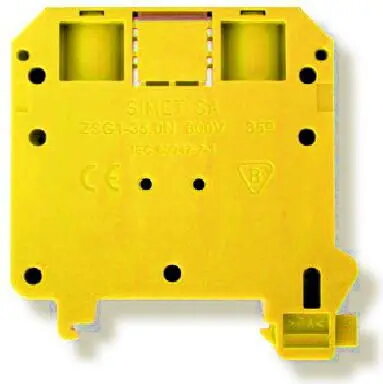

Terminal connector Simet ZSG1-35.0Nz two-conductor 35 mm² yellow (11721314)

Simet ZSG1-35.0Nz is a two-conductor terminal connector designed for use with 35 mm² conductors. Supplied in yellow, this connector provides a compact insulated termination for power distribution and cable splicing. Its construction is intended for reliable electrical contact and basic insulation in industrial and residential installations, junction boxes, distribution panels and machinery where secure conductor joining is required.

Advantages

The connector accepts two separate conductors of up to 35 mm², allowing a secure clamped connection without soldering. Its insulated body reduces the risk of accidental contact and improves safety in confined electrical spaces. The color coding (yellow) helps with visual identification during installation and maintenance. The component is designed for straightforward mounting and stable mechanical retention of conductors under typical installation conditions.

Suitable for

• Power distribution boards and electrical panels
• Splicing and terminating 35 mm² conductors in junction boxes
• Industrial machinery power connections
• Residential main feeders and service terminations

Key specifications

• Conductor capacity: up to 35 mm² per conductor pair
• Number of conductors: two conductors
• Insulation: molded insulated housing
• Color: yellow for visual identification
• Connection type: screw/clamp style termination for stranded or solid conductors
• Application environment: indoor electrical panels, junction boxes, machinery enclosures

How to use

Prepare conductor ends by stripping insulation to the recommended length for the connector. Insert each conductor into the corresponding port and tighten the clamping screw or terminal until the conductor is held firmly without excessive deformation. Verify mechanical retention by a gentle pull test and ensure insulation covers exposed conductive parts. Mount the connector in the panel or junction box following standard electrical practices and local regulations.

Usage recommendations

Use the connector only with conductors within the specified cross-section range and follow torque recommendations for clamping screws. Do not use in locations exposed to water or corrosive atmospheres unless installed within suitable enclosures. For critical or high-current applications, confirm compatibility with conductor type (stranded or solid) and consult local electrical codes for proper installation practices.
