Busbar connector Simet SW3F 10 57M63A — 3-phase fork-type, 63A, 57 modules, conductor 10 mm²

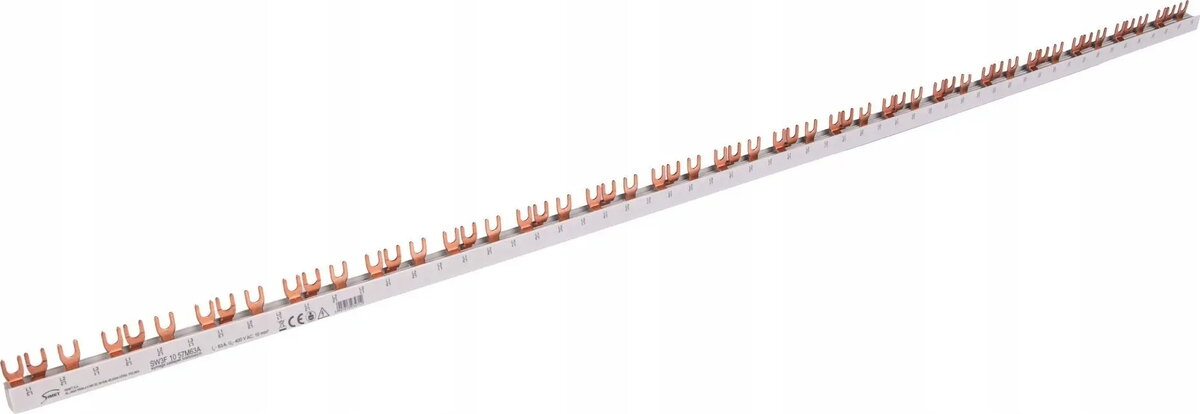

Simet SW3F 10 57M63A is a 3-phase fork-type busbar connector designed for use in distribution boards and switchgear. Intended for panel wiring and phase interconnection, the connector is rated for 63 A, fits 57-module enclosures and accepts conductors up to 10 mm². The product delivers secure conductive coupling between adjacent modules and helps maintain consistent electrical continuity across phases in compact electrical installations.

Advantages

The fork-type construction provides a straightforward mechanical connection that simplifies installation in multi-module enclosures. The connector’s 63 A rating and compatibility with 10 mm² conductors make it suitable for common residential and light commercial circuits. Designed to fit 57-module panels, it reduces the need for custom adaptors and ensures a compact layout in distribution systems. Materials and geometry are optimized for reliable contact under nominal load conditions.

Suitable for

• Phase interconnection in residential and small commercial distribution boards
• Busbar linking in 57-module enclosures
• Electrical panel wiring where 10 mm² conductors are used
• Applications requiring a compact 3-phase fork connector rated to 63 A

Key specifications

• Configuration: 3-phase fork-type connector
• Current rating: 63 A
• Compatible enclosure size: 57 modules
• Maximum conductor cross-section: 10 mm²
• Application area: distribution boards and switchgear busbar connections

How to use

Install the busbar connector by aligning the fork ends with the corresponding terminal points or busbar strips inside the distribution enclosure, ensuring the connector is seated in the allocated module positions. Strip the conductor to the appropriate length, insert the conductor into the connector clamp or terminal, and secure it according to the panel’s fastening method. Verify tightness and correct seating before energizing the circuit. Follow applicable national wiring regulations and switchgear manufacturer instructions during installation.

Usage recommendations

Use the connector only within its rated current and conductor size limits. Regularly inspect electrical connections for tightness and signs of corrosion or overheating. When modifying or expanding the panel, confirm that the connector remains compatible with the enclosure layout and that all protective devices and clearances meet applicable standards.
