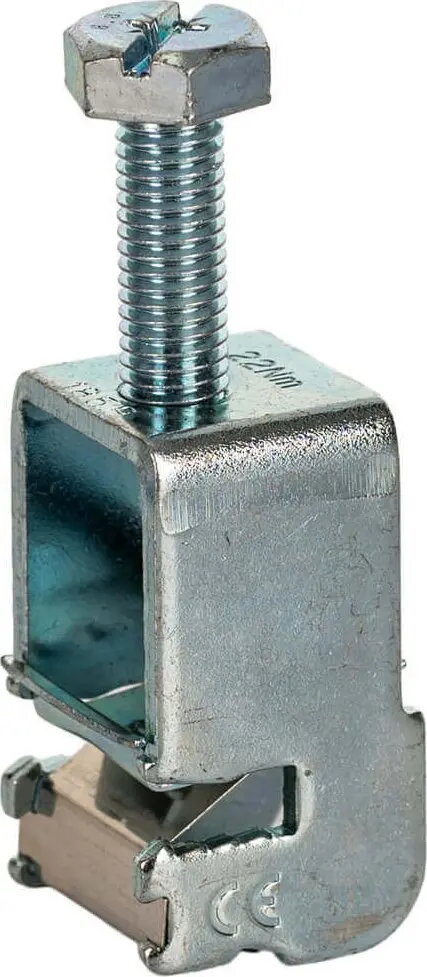

Simet ZS 185 S-5 Busbar Terminal for 5mm Busbar, 50-185 mm2

The Simet ZS 185 S-5 is a professional-grade busbar terminal engineered for secure and efficient electrical connections in power distribution systems. Specifically designed for integration with 5mm thick busbars, this terminal accommodates a wide range of conductor cross-sections from 50 mm2 to 185 mm2. Its robust construction ensures long-term reliability and optimal conductivity, making it an essential component for demanding industrial and commercial electrical infrastructure.

Advantages

This terminal offers exceptional mechanical strength and electrical performance, ensuring that connections remain stable even under heavy load conditions. The design facilitates quick and precise installation on standard busbar systems, reducing assembly time while maintaining high safety standards. Its high-quality metal composition provides excellent resistance to environmental factors and mechanical stress, ensuring consistent performance throughout the lifecycle of the electrical installation.

Suitable for

• Industrial power distribution cabinets
• Commercial electrical switchgear
• Main power supply busbar systems
• Heavy-duty electrical infrastructure projects

When it may not be suitable

This terminal is specifically engineered for 5mm thick busbars and is not compatible with busbars of different thicknesses. It is also not intended for use with conductors outside the specified 50-185 mm2 range, as this may compromise the integrity of the connection.

Key specifications

• Busbar thickness compatibility: 5 mm
• Conductor cross-section range: 50-185 mm2
• Material: High-conductivity metal
• Application: Power distribution systems

How to use

To install the terminal, ensure the power supply is disconnected for safety. Slide the terminal onto the 5mm busbar at the desired position. Insert the appropriate conductor into the terminal opening and tighten the clamping mechanism to the manufacturer's recommended torque settings to ensure a secure and low-resistance connection. Verify that the conductor is firmly held in place before restoring power to the system.

What to consider before purchase

• Verify the thickness of your existing busbar system is exactly 5 mm.
• Ensure the conductor cross-section falls within the 50-185 mm2 range.
• Check the available space in the electrical cabinet for proper installation.
• Confirm the torque requirements for your specific installation environment.

Usage recommendations

Always use calibrated tools for tightening the terminal to prevent damage to the busbar or the conductor and to ensure compliance with electrical safety standards.
