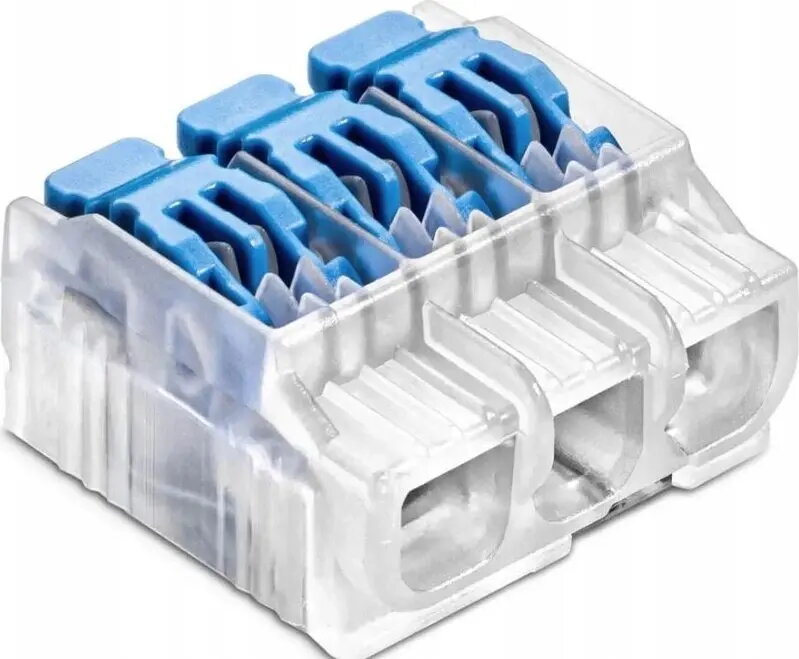

Connector/Quick-Release Terminal Simet Ideal SCL3 B10 — opened for wires and conductors, 3x 0.2–4 mm², 32 A, pack of 10, transparent/blue

Opened quick-release connector Simet Ideal SCL3 B10 accepts three conductors with cross-sections from 0.2 to 4 mm² and a rated current up to 32 A. The transparent housing and blue actuator provide visible conductor insertion and a simple manual release mechanism. The connector is reusable and designed for tool-free connection of solid, stranded and flexible wires in residential and light commercial electrical installations.

Advantages

The connector offers tool-free operation with a spring-actuated clamp that secures conductors reliably while allowing quick release when needed. Its transparent body enables visual verification of proper conductor insertion and contact. Reusability reduces waste and supports rapid changes or repairs. The compact design fits into junction boxes and tight spaces commonly found in household and small commercial wiring tasks.

Suitable for

• Connecting and branching electrical conductors in residential wiring
• Temporary or permanent repairs of lighting and power circuits
• Panel or junction box connections in light commercial applications
• Prototyping and test setups where frequent reconnection is needed

Key specifications

• Number of conductors per connector: 3
• Supported conductor cross-section: 0.2–4 mm²
• Rated current: 32 A
• Body material: transparent insulating plastic
• Actuator color: blue for manual release
• Connection type: quick-release spring clamp, tool-free
• Wire types supported: solid, stranded, flexible conductors
• Pack quantity: 10 connectors

How to use

Open the blue actuator to expose the spring clamp, insert each conductor fully into its respective opening until the conductor is visible through the transparent housing, then release the actuator to lock the conductor in place. For removal, lift the actuator to release the clamp and withdraw the conductor. Ensure the conductor insulation is stripped to the appropriate length so only bare conductor enters the clamp. Follow applicable electrical standards and disconnect power before working on circuits.

Usage recommendations

Use the connector within its specified conductor size and current rating. Verify tight, visible contact through the transparent body after insertion. Avoid using the connector in permanently damp or outdoor locations unless additional protection is provided. For high-vibration installations, check connections periodically. When installing multiple connectors in junction boxes, allow adequate space for heat dissipation and secure mounting.
