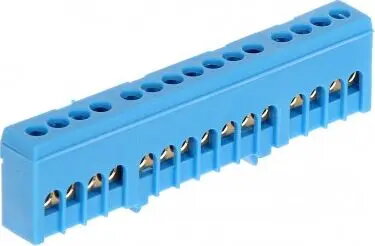

Connection DIN Rail Terminal Block Simet LP-870N-15FS for TS35 Rail

Simet LP-870N-15FS is a connection DIN rail terminal block designed for mounting on a TS35 rail. It provides a compact, single-point connection solution for control cabinets and distribution panels, enabling secure and organized wiring for industrial and electrical installations where DIN-rail mounting is required.

Advantages

The terminal block offers stable mechanical fixation on TS35 rails and reliable electrical contact to maintain circuit continuity under normal operating conditions. Its compact footprint supports space-efficient wiring layouts and simplifies cable routing inside enclosures. The design facilitates quick installation and removal during maintenance or system changes while maintaining consistent connection quality.

Suitable for

• Industrial control cabinets and automation panels
• Distribution boards and electrical switchgear
• Machine enclosures and panel wiring harnesses
• Field junctions requiring DIN-rail mounting

Key specifications

• Mounting type: TS35 DIN rail compatible
• Function: single connection/terminal block for secure electrical linking
• Construction: compact modular housing for space-efficient installation
• Connection method: screw or clamp type terminal (as per product family design)
• Application area: industrial and commercial electrical installations

How to use

Mount the terminal block onto a TS35 DIN rail by snapping it into place until it locks securely. Route the conductors to the terminal, strip the insulation to the appropriate length, insert the wire into the terminal point and tighten the connection according to recommended torque values for the chosen connection method. Ensure all connections are correctly secured and that wiring follows the panel layout and safety guidelines before re-energizing the circuit.

Usage recommendations

Use appropriate wire sizes and recommended torque for the terminal type, follow local electrical codes, and verify compatibility with the panel’s voltage and current requirements. For reliable long-term performance, inspect and retighten connections periodically and avoid overloading the terminal beyond its rated capacities.
