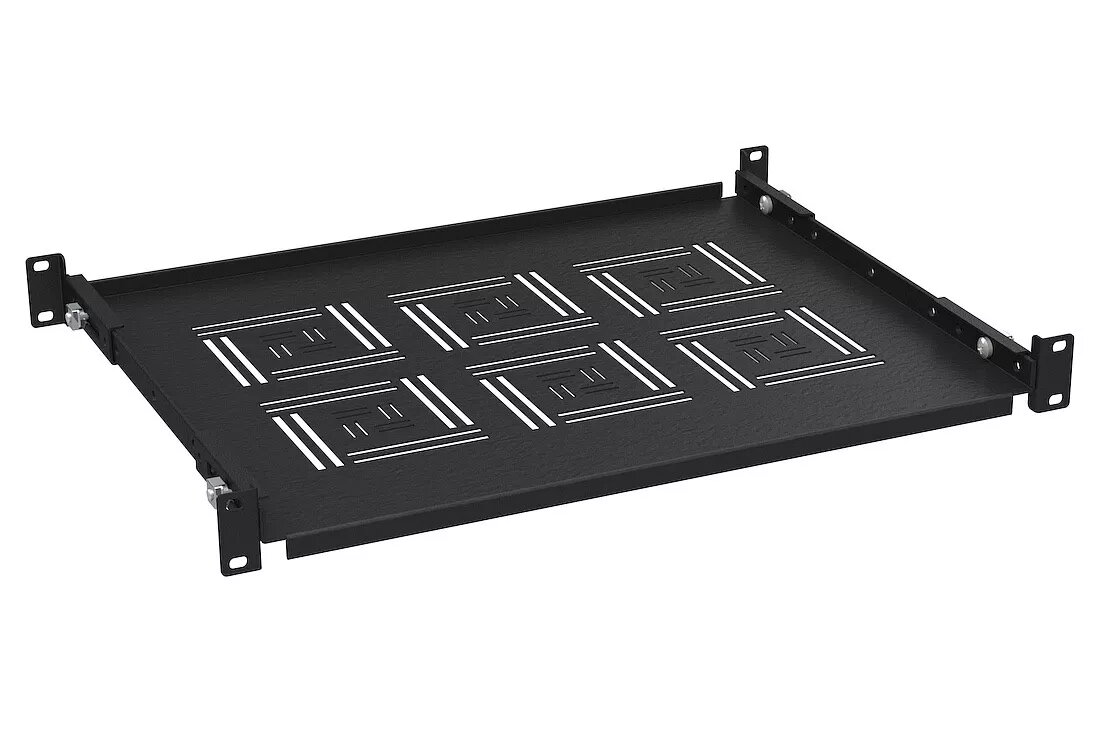

Rack Mounting Bracket SOLARIX UP-13-B 19" 1U 350mm for Front and Rear Rails

Rack mounting bracket SOLARIX UP-13-B 19" 1U 350mm is a compact mounting accessory designed to attach to both front and rear 19-inch rack rails. It occupies one U of rack height and provides a stable horizontal platform for small network devices, patch panels, cable management trays or other accessories that require shallow mounting depth. The bracket is compatible with standard 19" server racks, network cabinets and telecom enclosures and is intended for use where a short 350 mm depth is sufficient.

Advantages

The bracket offers universal compatibility with front and rear rails on standard 19" racks and saves space by using a single 1U height. Its 350 mm depth is suitable for compact devices and allows neat installation in crowded cabinets. The rigid construction ensures secure support for mounted equipment and helps keep patching and small devices stable during maintenance or cable changes.

Suitable for

• Mounting compact network devices that fit within 1U and 350 mm depth
• Installing small patch panels or keystone modules
• Supporting accessory trays, cable organizers or monitoring modules
• Temporary mounting during installations or maintenance tasks

Key specifications

• Form factor: 19" 1U rack mounting bracket
• Mounting depth: 350 mm
• Compatibility: fits front and rear 19" rack rails
• Intended use: supports small devices, patch panels and accessory trays
• Installation position: horizontal, occupies one rack unit (1U)

How to use

Install the bracket by aligning its mounting holes with the front and/or rear rails of a standard 19" rack at the chosen U position. Secure the bracket using appropriate rack screws and cage nuts compatible with your cabinet rails. After fastening, place the equipment or panel on the bracket and attach it as required to prevent movement. Verify that the mounted device does not exceed the 350 mm depth and that airflow and cable routing remain unobstructed.

Usage recommendations

For stable and safe installation, use correct rack fasteners and check weight limits of the chosen rack position. Reserve this 1U bracket for devices and panels that match its 350 mm depth and consider additional support for heavier items. Maintain proper cable management to avoid strain on mounted equipment.
