SonicWall SWS14-24 02-SSC-2467

Name: Managed L2 Gigabit Ethernet Switch 02-SSC-2467
Brand: SonicWall
SKU: 6030146
Price: 671.99 EUR
Availability: InStock

EcoFlow – energy without limits

Powerful EcoFlow stations for energy anywhere!

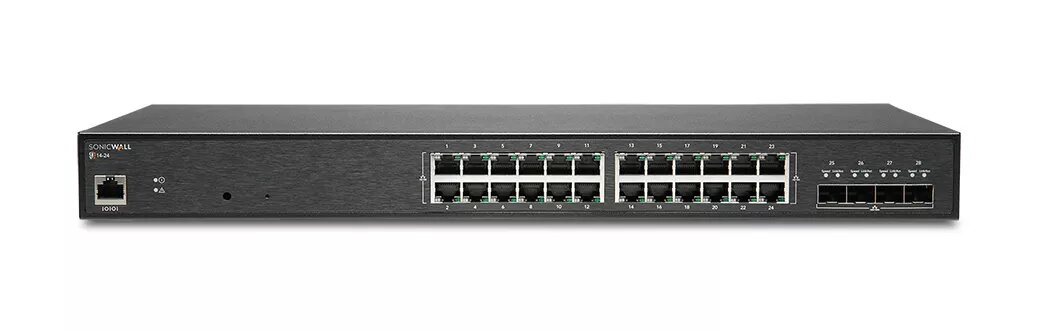

Managed L2 Gigabit Ethernet Switch SonicWall SWS14-24 — 24×10/100/1000 RJ-45, 1U, 128 Gbit/s

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

SonicWall SWS14-24 is a managed Layer‑2 Gigabit Ethernet switch with 24 RJ‑45 10/100/1000 ports and an RJ‑45 console port. It supports IEEE 802.1ab, 802.1p and 802.1x standards, a 32,000‑entry MAC address table and 128 Gbit/s switching capacity. Rack‑mountable 1U form factor for SMB and enterprise access-layer deployments and network segmentation.

Available for order: 2 pcs.

Warranty: 2 Years

SKU: 6030146

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

15.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

15.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

20.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.00 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

20.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Leasing for legal entities

Find out more Hide details

Leasing for legal entities: from 23.39 euros per month

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

SonicWall SWS14-24 is a managed Layer‑2 Gigabit Ethernet switch designed for access-layer deployments in small and medium-sized businesses and enterprise networks. The unit provides 24 RJ‑45 10/100/1000 ports and an RJ‑45 console port in a 1U rack-mountable form factor. Supporting IEEE 802.1ab (LLDP), 802.1p (traffic prioritization) and 802.1x (port-based network access control), the switch includes a 32,000-entry MAC address table and a switching capacity of 128 Gbit/s to accommodate increasing device density and bandwidth needs.

Advantages

The SonicWall SWS14-24 combines managed Layer‑2 features with Gigabit connectivity in a compact 1U chassis, enabling network segmentation and centralized control. Its support for standard IEEE protocols facilitates interoperability with existing infrastructure while the large MAC table and high switching capacity help maintain performance under heavy traffic. Rack-mountable design and console access simplify integration into standard equipment racks and managed network environments.

Suitable for

Access-layer connectivity in SMB and enterprise office networks
Network segmentation and VLAN deployments
Wired device consolidation where multiple Gigabit ports are required
Rack-mounted setups requiring 1U switches with console management

Key specifications

Ports: 24 × 10/100/1000 RJ‑45 ports; 1 × RJ‑45 console port
Switching capacity: 128 Gbit/s
MAC address table size: 32,000 entries
Layer: Managed Layer‑2 functionality
Supported standards: IEEE 802.1ab (LLDP), IEEE 802.1p (QoS), IEEE 802.1x (port-based access control)
Form factor: 1U rack-mountable

How to use

Install the SonicWall SWS14-24 in a standard 19-inch rack using the supplied mounting brackets or appropriate rack hardware. Connect uplink and access devices to the RJ‑45 Gigabit ports and use the console port for initial configuration if required. Configure VLANs, QoS priorities and 802.1x authentication through the switch management interface to segment traffic and enforce access control. Monitor MAC table utilization and traffic loads to ensure ports and switching capacity meet operational requirements.

Usage recommendations

Place the switch in a temperature-controlled equipment rack with adequate ventilation and ensure firmware is kept current. Use structured cabling and quality Cat5e/Cat6 cables for Gigabit links, and plan VLAN and 802.1x settings before deployment to streamline configuration. For higher aggregation or uplink bandwidth needs, pair the unit with compatible SonicWall switches or routers offering 10 Gigabit connectivity as required by network growth.

Specifications

Basic switching RJ-45 Ethernet ports type:: Gigabit Ethernet (10/100/1000)
Weight:: 1.8 kg
Basic switching RJ-45 Ethernet ports quantity:: 24
10G support:: Yes
Switch type:: Managed
Networking standards:: IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x
Product colour:: Black

All features

Ports & interfaces

Console port:: RJ-45
Basic switching RJ-45 Ethernet ports type:: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity:: 24
SFP+ module slots quantity:: 4

Management features

MIB support:: MIB-II
Switch layer:: L2
System event log:: Yes
Switch type:: Managed

Design

Rack mounting:: Yes
Form factor:: 1U
Product colour:: Black

Certificates

Certification:: FCC Class A, ICES Class A, CE (EMC Class A, LVD, RoHS), C-Tick, VCCI Class A, UL cUL, TUV/GS, CB, Mexico UL DGN notification, WEEE, REACH, BSMI, KCC/MSIP, ANATEL

Power

Input current:: 0.7
AC input frequency:: 50 - 60
AC input voltage:: 100 - 240
Power consumption (max):: 36 W
Power supply included:: Yes

Operational conditions

Operating relative humidity (H-H):: 10 - 95
Storage temperature (T-T):: -40 - 70
Operating temperature (T-T):: 0 - 40
Heat dissipation:: 122.8 BTU/h

Logistics data

Harmonized System (HS) code:: 85176990

Network

Networking standards:: IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x
Port mirroring:: Yes
IP routing:: Yes
Auto MDI/MDI-X:: Yes
Number of VLANs:: 4096
VLAN support:: Yes
10G support:: Yes
Copper ethernet cabling technology:: 10BASE-T, 100BASE-TX, 1000BASE-LX, 1000BASE-SX, 1000BASE-T
Virtual LAN features:: Tagged VLAN

Data transmission

MAC address table:: 32000 entries
Switching capacity:: 128 Gbit/s
Jumbo frames support:: Yes

Performance

Internal memory:: 512 MB
Mean time between failures (MTBF):: 1273866 h
Flash memory:: 128 MB

Weight & dimensions

Weight:: 1.8 kg
Height:: 200 mm
Width:: 440 mm
Depth:: 44 mm

Security

Security algorithms:: HTTPS, 802.1x RADIUS, SNMP, SSH
IGMP snooping:: Yes
DHCP features:: DHCP client, DHCP relay, DHCP snooping

Multicast features

Multicast support:: Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE):: No
