Air compressor STANLEY 8215250STN596 — portable 5 L tank, 1100 W (1.5 HP), 10 bar, 180 L/min

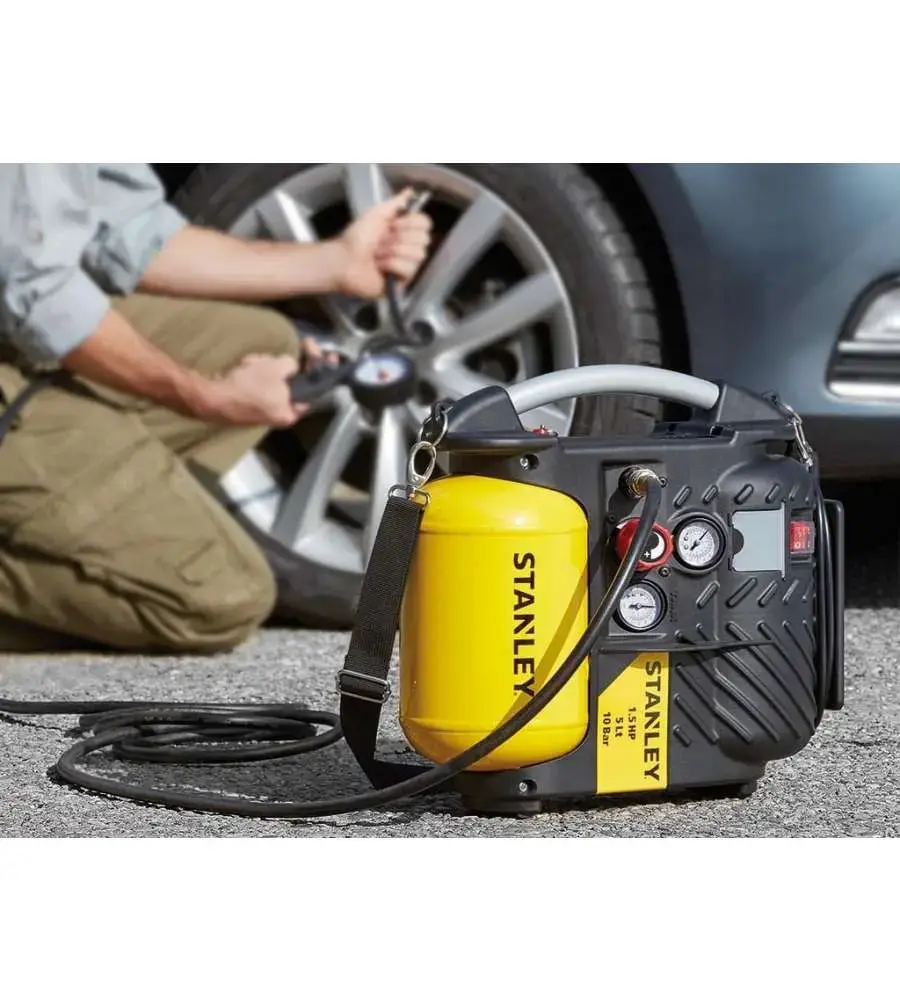

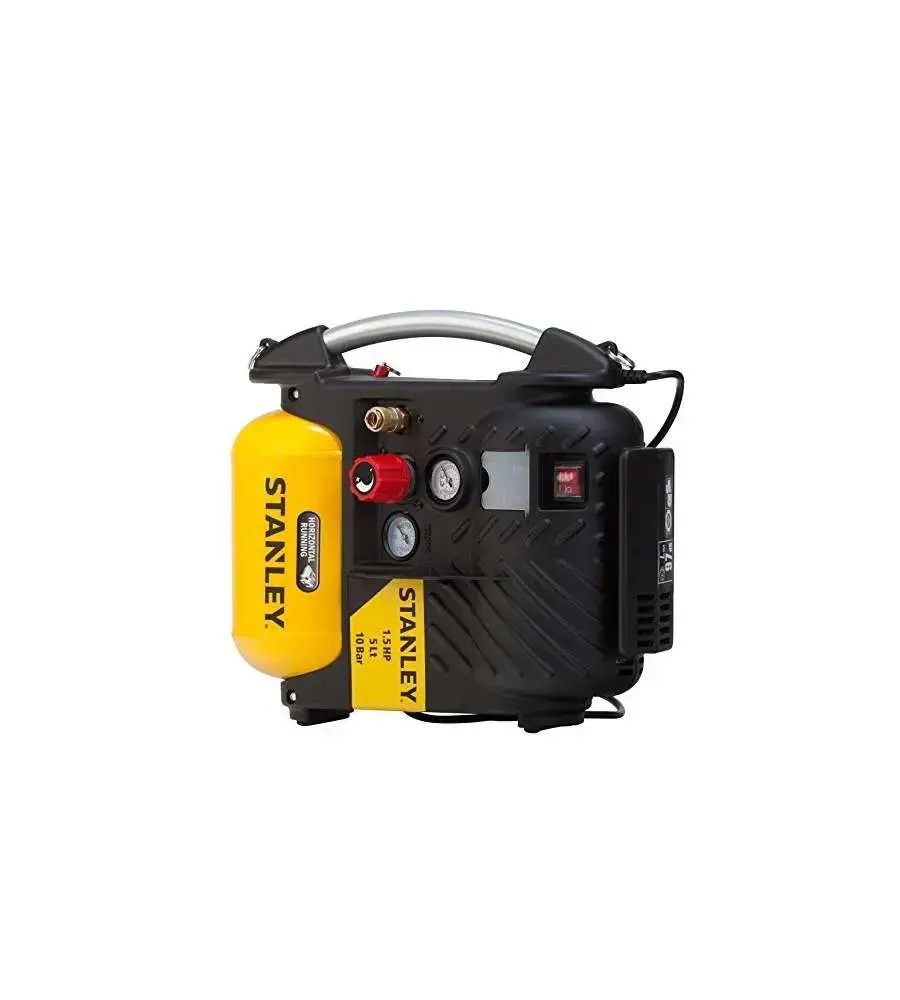

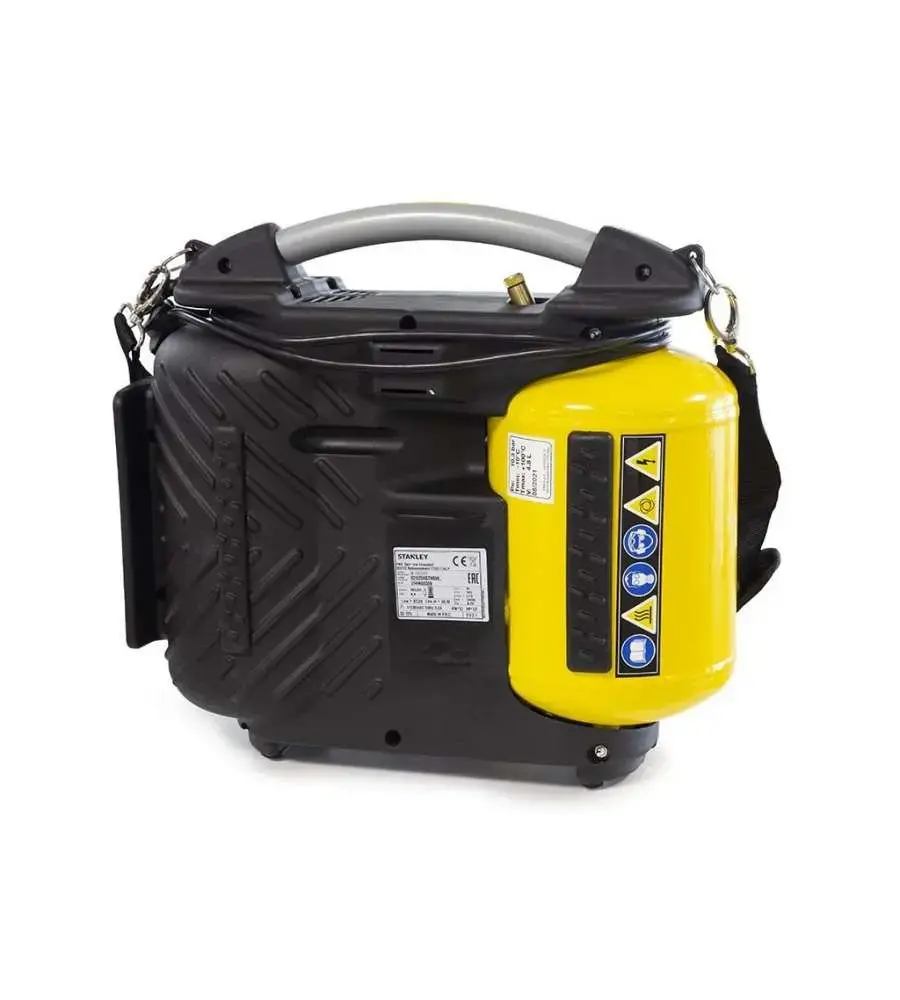

Portable STANLEY air compressor with a 5 L tank, 1100 W (1.5 HP) motor and a built-in pressure gauge. The unit is AC-powered (230 V, 50 Hz) and delivers up to 10 bar maximum operating pressure with an intake capacity of 180 L/min at 3400 RPM. The compressor weighs 9.5 kg and features a shoulder strap for easier transport. Do not exceed the maximum operating pressure.

Advantages

The compact design and 5 L tank provide a balance of portability and short work cycles. The built-in pressure gauge allows quick monitoring of output pressure. The 1100 W (1.5 HP) motor and 180 L/min intake capacity support a range of light pneumatic tasks while the shoulder strap and moderate weight make the unit easy to carry.

Suitable for

• Tyre inflation
• Airbrushing and paint touch-ups
• Light pneumatic tools (nailers, staplers)
• Inflatable equipment and sports gear

Key specifications

• Tank capacity: 5 L
• Motor power: 1100 W (1.5 HP)
• Maximum operating pressure: 10 bar
• Intake capacity: 180 L/min
• Pump speed: 3400 RPM
• Power supply: AC 230 V, 50 Hz
• Weight: 9.5 kg
• Dimensions (H×W×D): 390 × 430 × 210 mm
• Built-in pressure gauge: Yes
• Lubrication: dry (no oil required)

How to use

Place the compressor on a stable, level surface and connect it to a 230 V, 50 Hz mains outlet. Check the built-in pressure gauge and set the desired pressure using the regulator if applicable. Attach the hose or tool, start the motor and allow the tank to fill. Monitor the pressure while operating and stop the compressor when the task is complete. Follow standard safety practices for pneumatic equipment and disconnect power before performing maintenance.

Usage recommendations

Do not exceed the maximum operating pressure of 10 bar. Use the compressor for light, intermittent tasks suited to a 5 L tank and 180 L/min intake capacity. Allow the motor to cool during extended use and store the unit in a dry environment.
