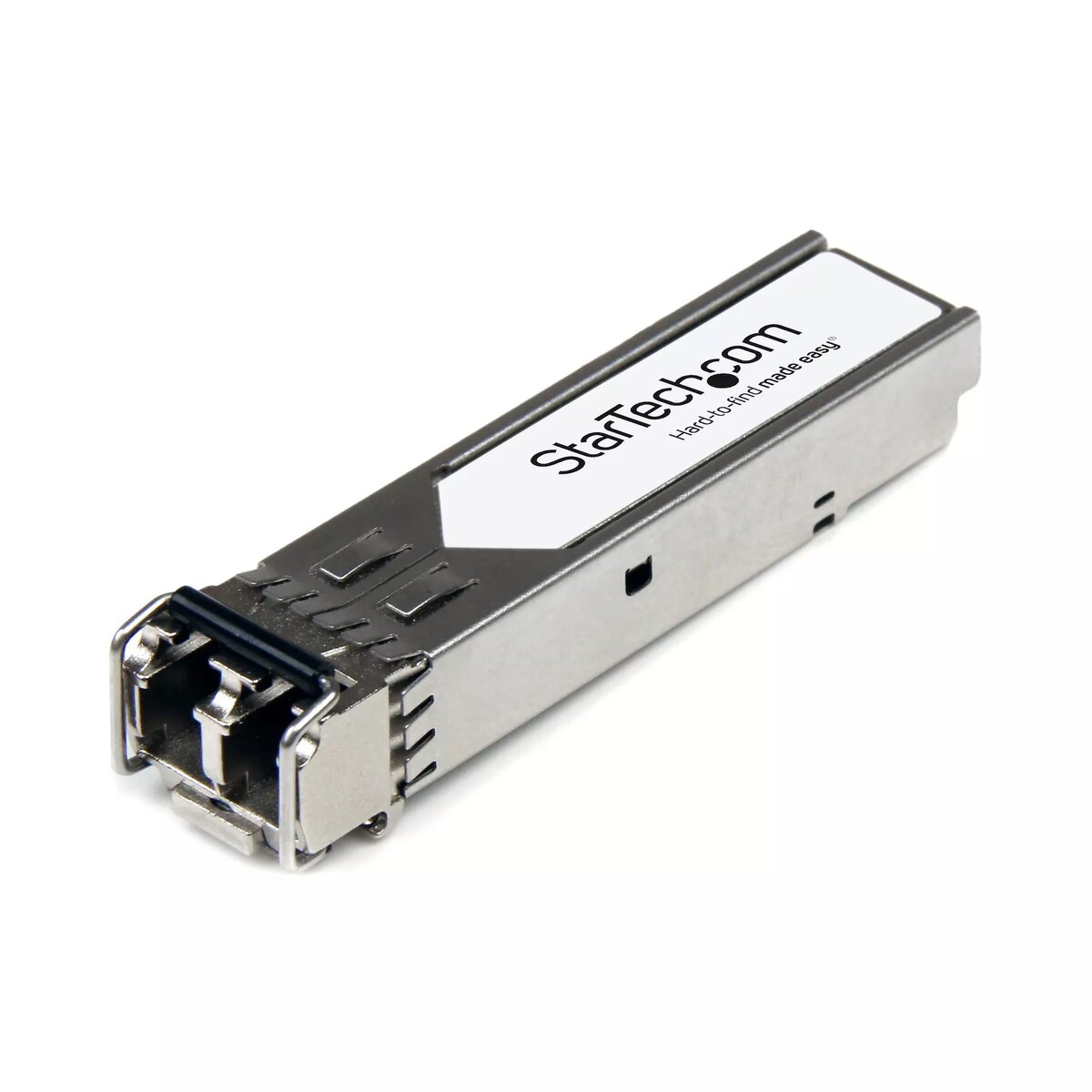

SFP+ Module StarTech.com 10G-SFPP-SR

Name: SFP+ Module StarTech.com 10G-SFPP-SR 10G-SFPP-SR-ST
Brand: StarTech
SKU: 2143182
Price: 51.99 EUR
Availability: InStock

Aquaphor

Filters you can trust. Pure water every day.

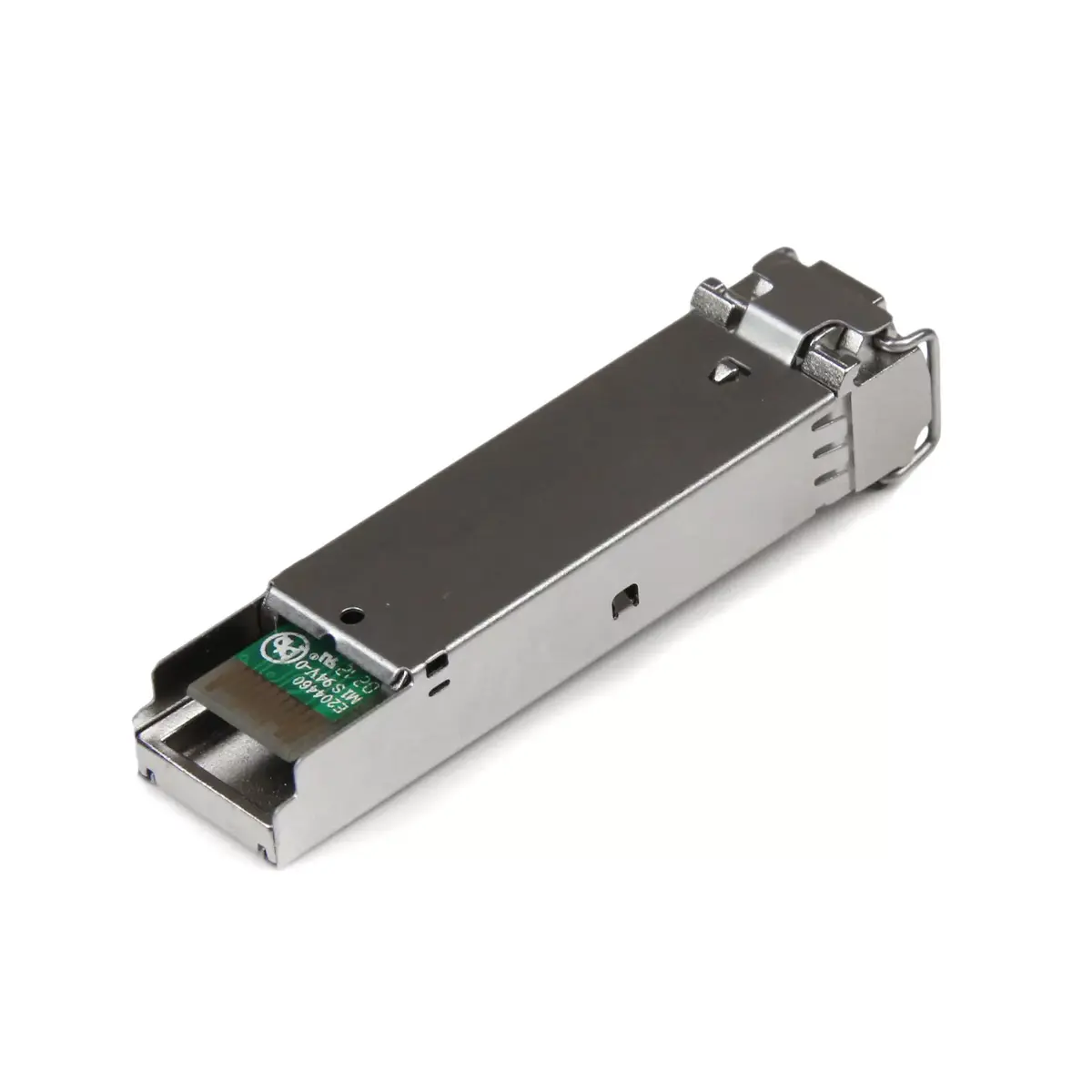

SFP+ Module StarTech.com 10G-SFPP-SR Photo 3

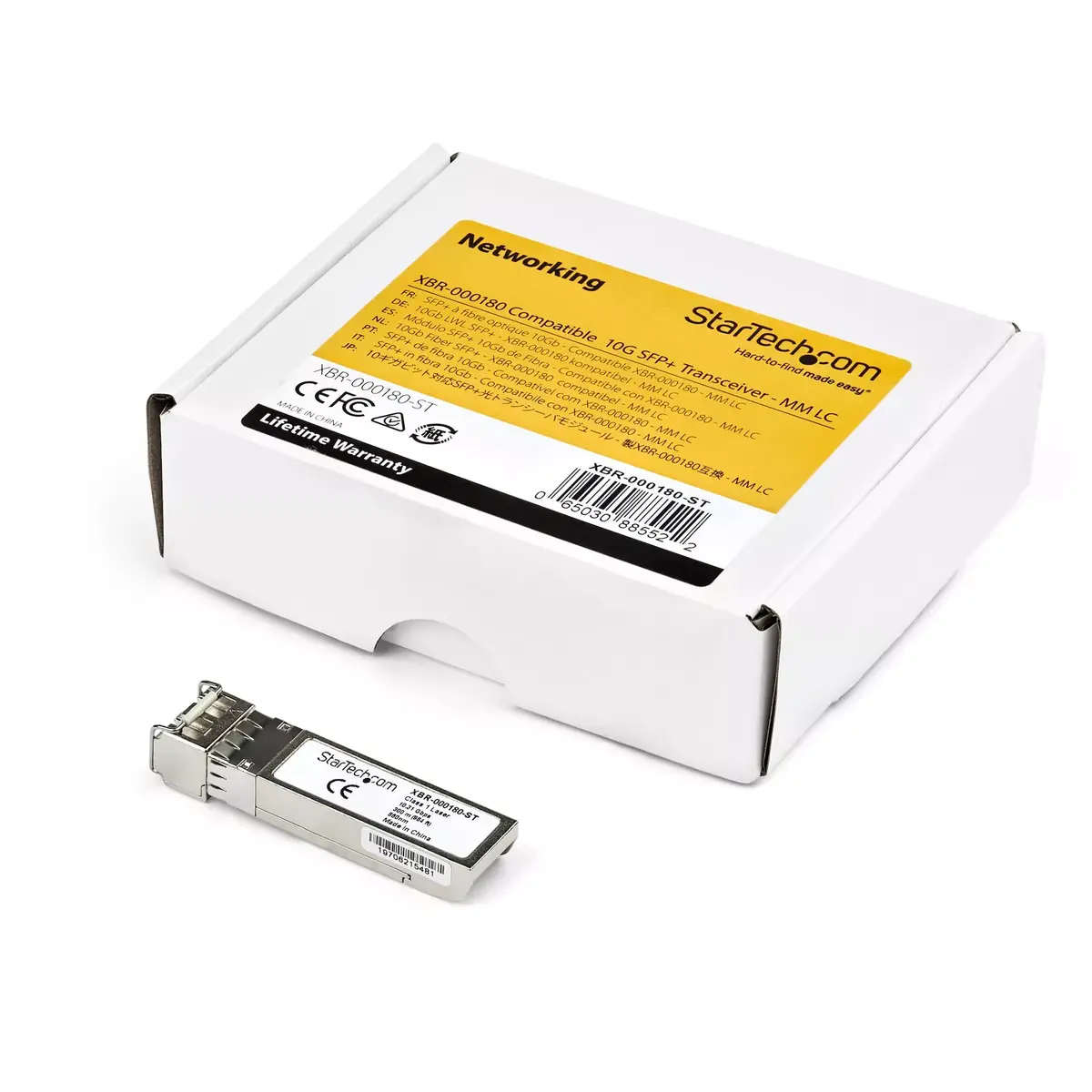

SFP+ Module StarTech.com 10G-SFPP-SR Photo 4

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The StarTech.com 10G-SFPP-SR SFP+ module is designed for 10GbE multimode fiber connections. It supports a maximum data transfer rate of 10 Gbit/s over distances up to 200m at 850nm. This reliable transceiver features DDM for monitoring and has a low power consumption of 1W. Compatible with Brocade devices, it ensures high performance and durability with an MTBF of over 498 million hours.

Available at price 51.99 €: 2 pcs.

Total available for order: 6 pcs.

Warranty: 2 Years

SKU: 2143182

Manufacturer: StarTech

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

30.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

30.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

03.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.05 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

03.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

Available for private customers at price 65.49 €: 2 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The StarTech.com SFP+ Module 10G-SFPP-SR is a hot-swappable multimode fiber transceiver designed for 10 Gigabit Ethernet connections. It supports 10 Gbps data rates over multimode fiber at an operating wavelength of 850 nm and is compatible with Brocade switches and routers. The module provides reliable short-range fiber connectivity with a maximum reach of up to 200 m (656 ft) and includes Digital Diagnostics Monitoring (DDM) for real-time performance monitoring.

Advantages

This SFP+ module delivers standards-compliant 10GBASE-SR performance with low power consumption and a high MTBF for long-term reliability. Its LC connector and multimode fiber design enable straightforward integration into existing fibre installations, while hot-swappable operation reduces downtime during upgrades or replacements. The product is covered by a lifetime warranty and free multilingual technical support from the manufacturer.

Suitable for

10 Gigabit Ethernet links within data centers
Short-range fiber uplinks between switches and routers
Multimode fiber network segments up to 200 m

Key specifications

Maximum data transfer rate: 10 Gbps
Fiber type: Multimode Fiber (MMF)
Wavelength: 850 nm
Connector: LC
Maximum reach: 200 m (656 ft)
Digital Diagnostics Monitoring (DDM): Yes
MTBF: 498,745,585 hours
Weight: 0.02 kg
Color: Silver

How to use

Insert the hot-swappable SFP+ module into an available SFP+ port on a compatible switch or router until it latches. Connect LC-terminated multimode fiber cables to the module and the corresponding device ports, observing correct transmit/receive orientation. Verify link status through the host device and use the module’s Digital Diagnostics Monitoring to check real-time parameters such as optical power and temperature.

Usage recommendations

Use this transceiver for short-range 10GbE multimode fiber links and ensure fiber patch cords meet multimode specifications. For optimal performance, verify compatibility with your network equipment (Brocade compatibility is supported) and follow proper fiber handling and ESD precautions during installation.

Specifications

Interface type:: SFP+
Maximum data transfer rate:: 10000 Mbit/s
Weight:: 0.02 kg
Product colour:: Silver

All features

Performance

Interface type:: SFP+
Maximum data transfer rate:: 10000 Mbit/s
Fiber ethernet cabling technology:: 10GBASE
Wavelength:: 850 nm
Fiber optic connector:: LC
Maximum transfer distance:: 200 m
Digital Diagnostics Monitoring (DDM):: Yes
Multi-mode fiber (MMF) supported:: Yes
SFP transceiver standard:: SR

Network

SFP transceiver type:: Fiber optic

Logistics data

Master (outer) case height:: 31 mm
Master (outer) case width:: 90 mm
Master (outer) case length:: 115 mm
Products per master (outer) case:: 1 pc(s)
Harmonized System (HS) code:: 85369010

Certificates

Certification:: CE, FCC, UR

Features

Mean time between failures (MTBF):: 498745585 h
Product colour:: Silver
Compatible products:: 10G-SFPP-SR
Hot-swap:: Yes
Brand compatibility:: Brocade

Packaging data

Package weight:: 50 g
Package depth:: 115 mm
Package height:: 31 mm
Package width:: 90 mm
Number of products included:: 1 pc(s)

Weight & dimensions

Weight:: 0.02 kg
Height:: 12.6 mm
Width:: 58.4 mm
Depth:: 13.9 mm

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.: 1 W
