Copper SFP Transceiver Module StarTech 453154-B21

Name: Copper SFP Transceiver Module StarTech 453154B21ST
Brand: StarTech
SKU: 431351
Price: 31.99 EUR
Availability: OutOfStock

Dreame – powerful cleaning with ease

Dreame vacuums for fast and efficient cleaning!

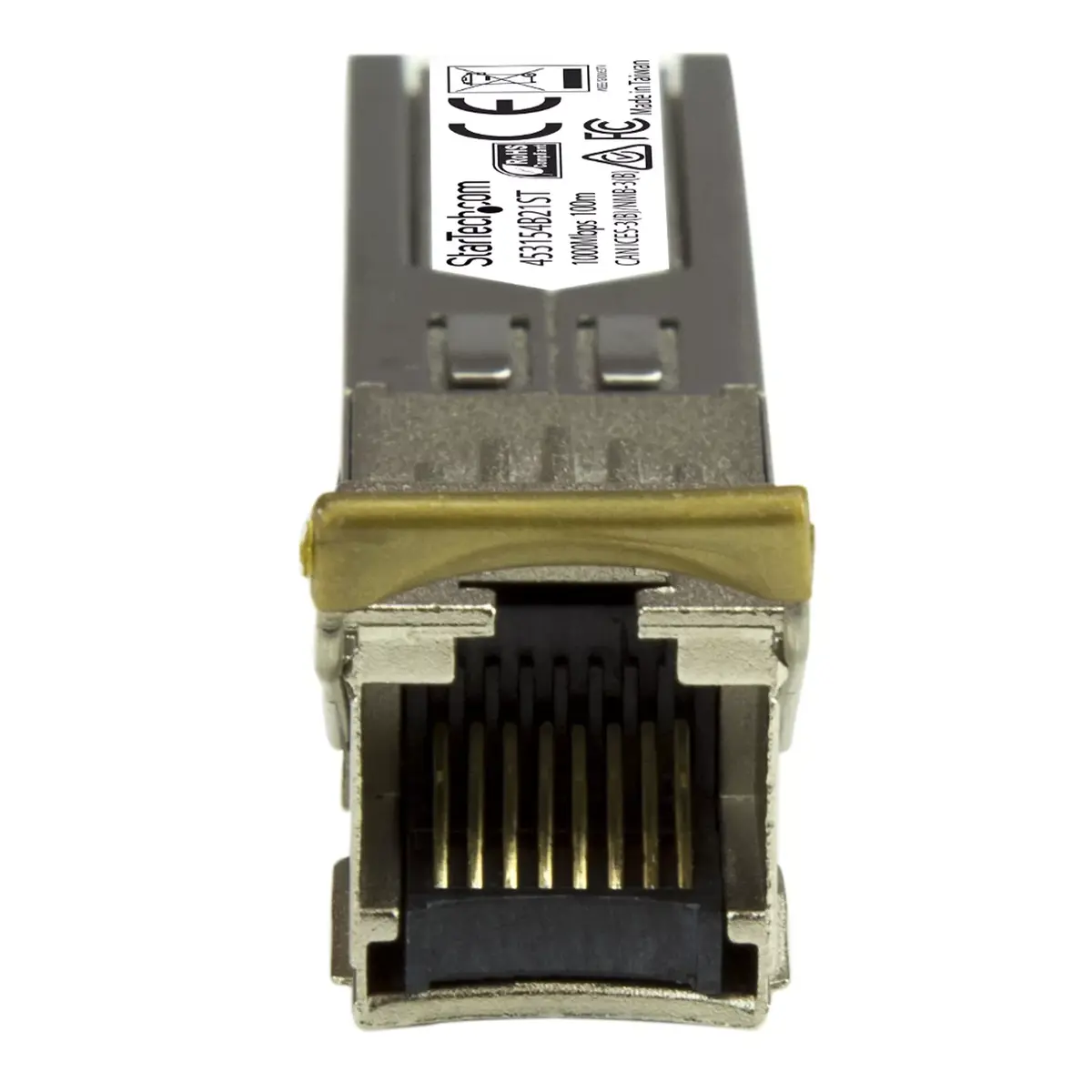

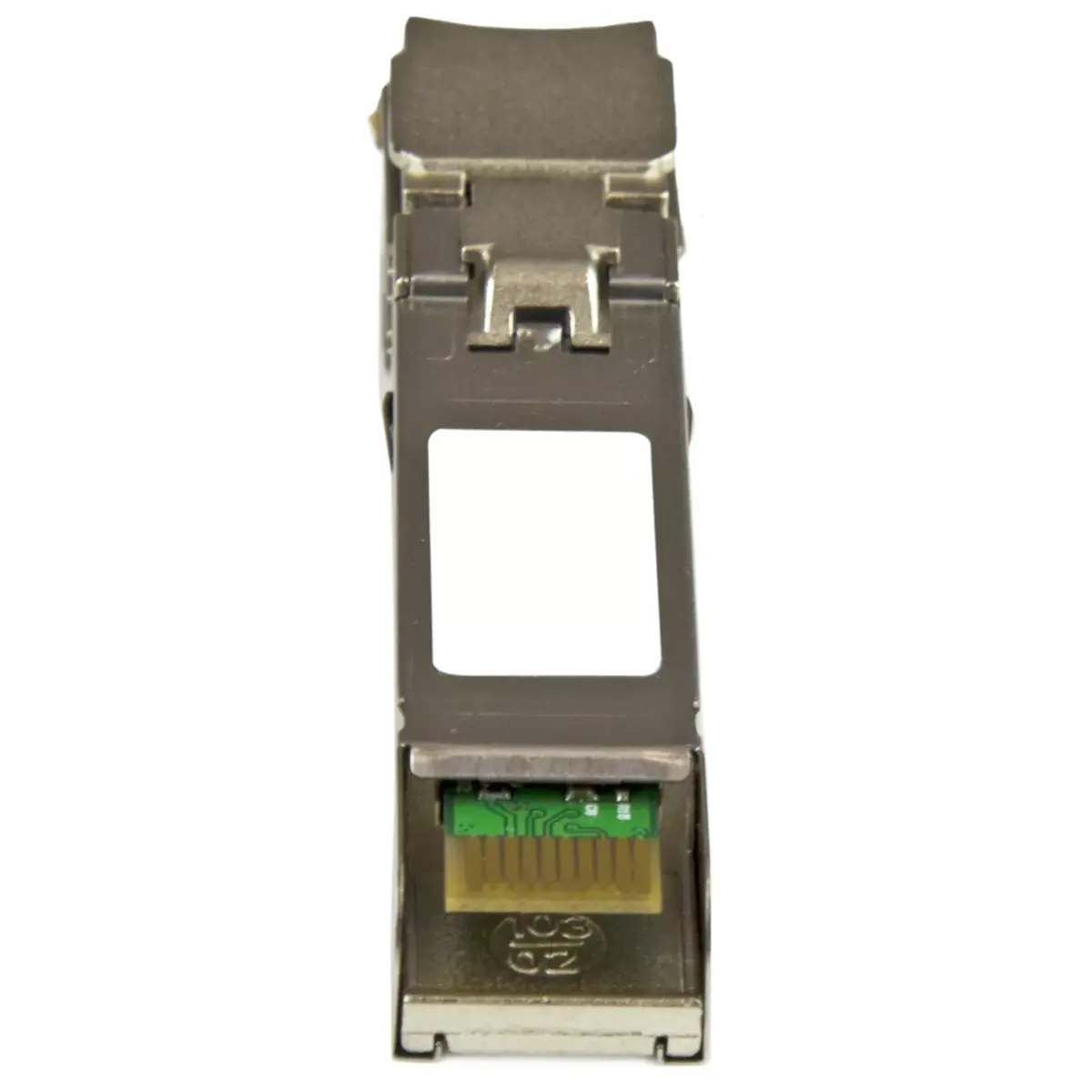

Copper SFP Transceiver Module StarTech 453154-B21 Photo 3

Out of stock.
View similar!

Short description

The StarTech Gigabit Copper RJ45 SFP Transceiver Module is compatible with HPE 453154-B21. It supports 1000BASE-T with a maximum data transfer rate of 1000 Mbit/s. The module features an SFP interface, aluminum housing, and a compact design. With a power consumption of 1.3 W and an MTBF of 805386 hours, it ensures reliable performance. Ideal for connecting devices over Cat6/Cat5e cables up to 100m.

Warranty: 2 Years

SKU: 431351

Manufacturer: StarTech

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The StarTech 453154-B21 compatible Copper SFP Transceiver Module provides reliable 1 GbE connectivity over copper cabling for 1000BASE-T networks. This TAA-compliant SFP module is designed and tested to work with HPE brand switches and routers, supports an RJ45 connection and works up to 100 m (328 ft). It features a compact aluminum housing, low power consumption and hot-swappable operation for minimal network disruption.

Advantages

This copper SFP module supports a maximum data transfer rate of 1000 Mbps and is compatible with standard RJ45 copper cabling, allowing straightforward integration into existing wired networks. With an MTBF of 805,386 hours and power consumption under 1.3 W, it offers energy-efficient and durable performance. The module is TAA compliant and backed by StarTech.com lifetime warranty and multilingual technical support.

Suitable for

Connecting switches, routers and servers to 1000BASE-T copper networks
Extending network connections up to 100 m (328 ft) over Cat5e/Cat6 cable
Hot-swappable upgrades or replacements in data center or enterprise environments

Key specifications

Maximum data transfer rate: 1000 Mbps (1 Gbps)
Type: Copper SFP (RJ45)
Maximum distance: 100 m (328 ft)
Interface: SFP
Connector: RJ45
Power consumption: < 1.3 W
MTBF: 805,386 hours
Compliance: TAA
Colour: Silver
Weight: 0.024 kg

How to use

Insert the Copper SFP transceiver into an available SFP port on a compatible HPE switch or router until it clicks into place. Connect standard Cat5e or Cat6 copper cable with an RJ45 plug to the module and the remote device. The module is hot-swappable, so it can be installed or removed without powering down the host device; verify link status on the host after installation and configure network settings as required by your equipment.

Usage recommendations

Use Cat5e or Cat6 copper cabling for reliable 1 Gbps performance and keep cable runs within 100 m (328 ft). For best results, ensure firmware and device compatibility with HPE equipment and follow standard electrostatic discharge (ESD) precautions when handling the module.

Specifications

Interface type:: SFP
Maximum data transfer rate: The maximum speed with which data can be transmitted from one device to another.: 1000 Mbit/s
SFP transceiver type:: Copper

All features

Logistics data

Products per master (outer) case:: 150 pc(s)
Master (outer) case height:: 289 mm
Master (outer) case length:: 637 mm
Harmonized System (HS) code:: 85369010
Master (outer) case width:: 341 mm

Packaging data

Number of products included: The number of products that are included in the package.: 1 pc(s)
Package weight: Weight of the packaged product.: 56 g
Package height: The distance from the top to the bottom of the packaging.: 33 mm
Package depth: The distance from the front to the back of the packaging.: 122 mm
Package width: The distance from one side of the packaging to the other.: 75 mm

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.: 0.024 kg
Height: The measurement of the product from head to foot or from base to top.: 15.7 mm
Depth: The distance from the front to the back of something.: 74.8 mm
Width: The measurement or extent of something from side to side.: 15.1 mm

Operational conditions

Operating relative humidity (H-H):: 5 - 95
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.: -40 - 85
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.: 0 - 70

Sustainability

Sustainability certificates:: RoHS

Certificates

Certification:: CE, FCC, UL, TAA, UR

Power

Power consumption (typical): Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.: 1.3 W

Features

Mean time between failures (MTBF): Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.: 805386 h
Hot-swap:: Yes
Housing material: What the casing of the product is made of.: Aluminium
Product colour: The colour e.g. red, blue, green, black, white.: Silver

Performance

Digital Diagnostics Monitoring (DDM):: No
Auto-negotiation:: Yes
Auto MDI/MDI-X: A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.: Yes
Ethernet LAN (RJ-45) ports: Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.: 1
Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.: IEEE 802.1ab
Maximum transfer distance: The greatest distance over which the data/signal can be transferred.: 100 m
Interface type:: SFP
Maximum data transfer rate: The maximum speed with which data can be transmitted from one device to another.: 1000 Mbit/s
SFP transceiver type:: Copper
