48-Port 2U Rackmount Cat6 Patch Panel – StarTech CPANEL48, RJ45 UTP, 110 Punch-Down, Gigabit

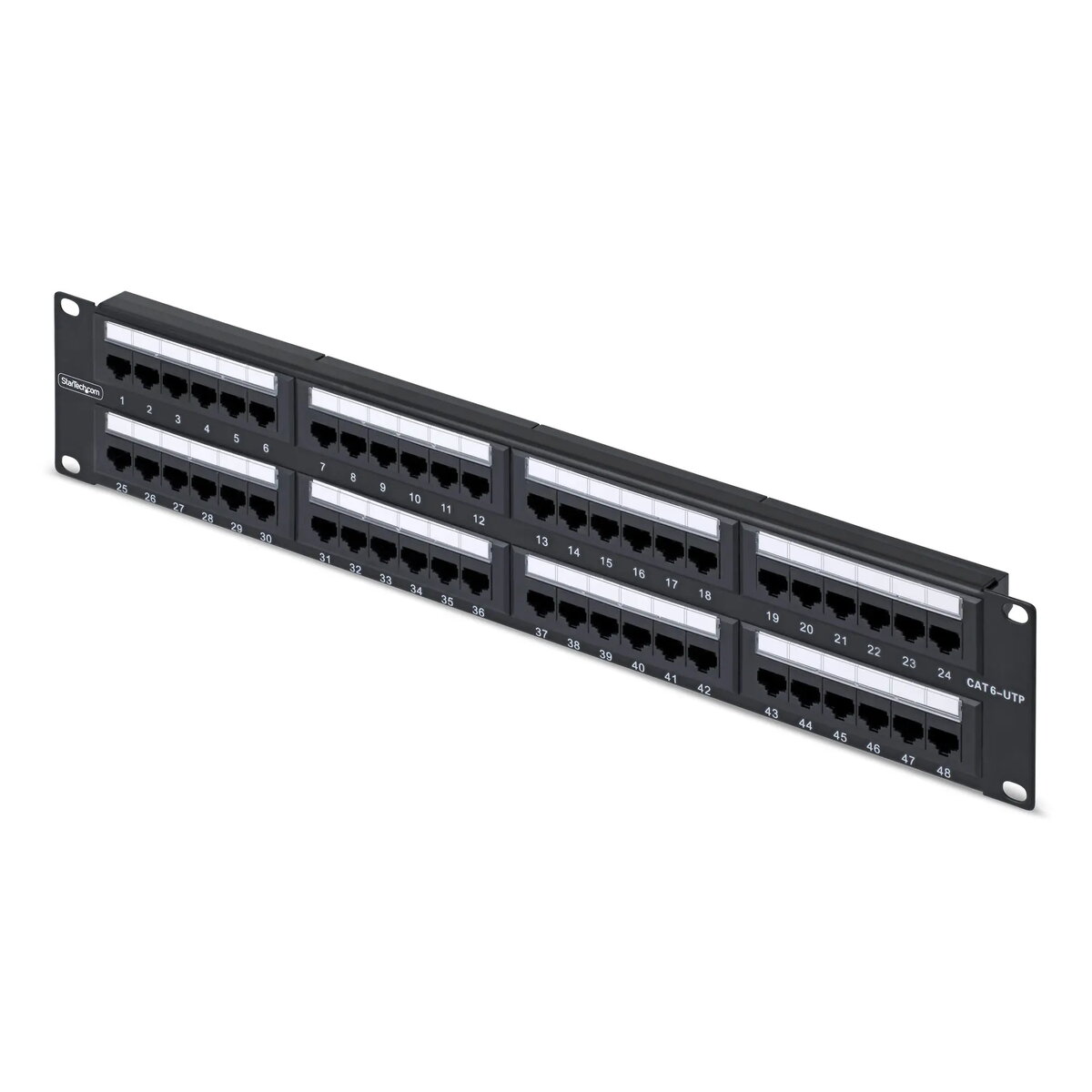

StarTech 48-Port 2U Cat6 Patch Panel CPANEL48 Photo 1

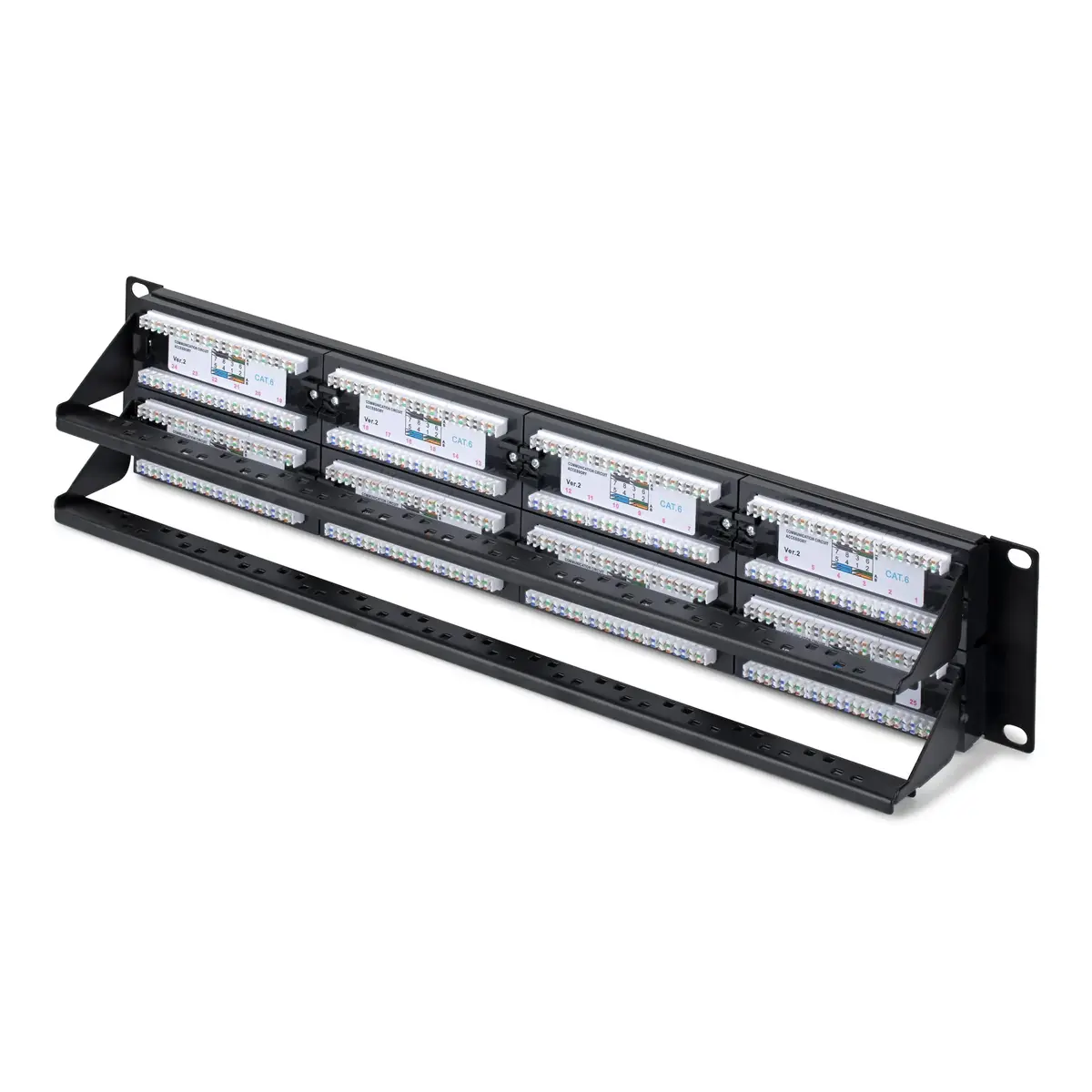

StarTech 48-Port 2U Cat6 Patch Panel CPANEL48 Photo 2

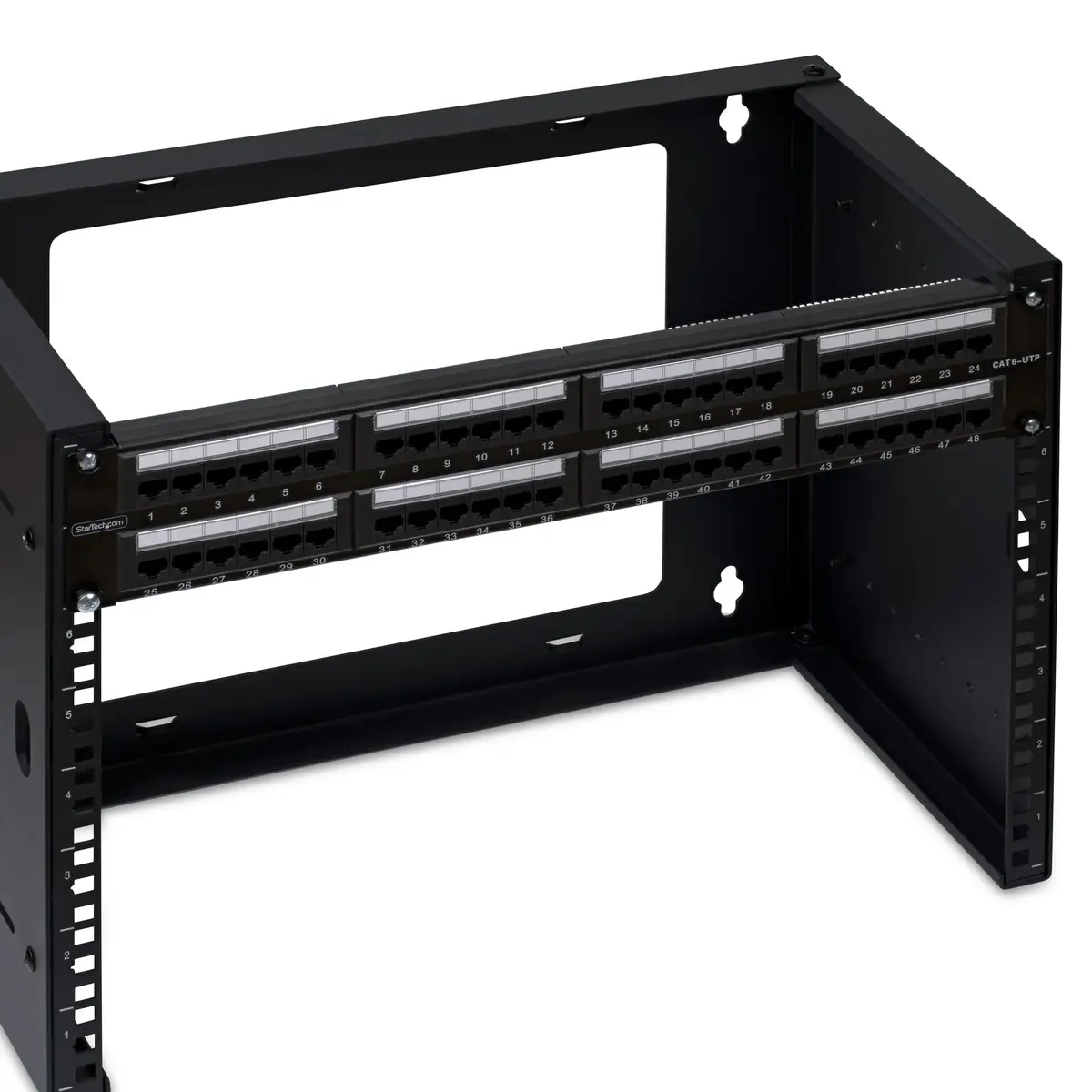

StarTech 48-Port 2U Cat6 Patch Panel CPANEL48 Photo 3

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

48-port 2U rackmount Cat6 patch panel by StarTech (CPANEL48) provides RJ45 UTP connections with 110 punch-down termination for structured network cabling. Supports 10/100/1000Base-T(X) with up to 1000 Mbit/s throughput. Designed for 2U server racks, black finish, RoHS compliant. Dimensions: 89 × 34 × 483 mm. Ideal for consolidating and managing Ethernet runs in data centers and wiring closets.

Available at price 136.99 €: 4 pcs.

Total available for order: 16 pcs.

Warranty: 2 Years

SKU: 11688670

Manufacturer: StarTech

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

19.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

19.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

26.06.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.98 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

26.06.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

Available for private customers at price 152.49 €: 4 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

Organize up to 48 Cat6 cables with a rackmount patch panel designed for high-capacity network installations. This 48-port 2U Cat6 patch panel by StarTech provides RJ45 UTP connections with 110 punch-down termination and supports Gigabit Ethernet speeds. It is intended for 19-inch rack-mounted network equipment in data centers, server rooms, and wiring closets where structured cable management and consistent performance are required.

Advantages

The patch panel delivers high-density connectivity in a compact 2U form factor, with numbered RJ45 ports and color-coded 110 punch-down blocks that support both T568A and T568B wiring standards. A sturdy steel housing with black powder-coat finish and gold-plated contacts ensures mechanical durability and sustained signal integrity. The panel supports 10/100/1000Base-T(X) operation and is compatible with solid and stranded Cat6 and Cat5e cables, simplifying deployment and future upgrades.

Suitable for

Data centers and colocation racks
Enterprise LAN closets and server rooms
Network infrastructure consolidation and cable management
Small to medium business rack installations

Key specifications

Port count: 48 RJ45 ports
Cable type: UTP, supports Cat6 and Cat5e (solid and stranded)
Form factor: 2U rackmount, fits standard 19‑inch racks
Termination: 110 punch-down blocks, color-coded for T568A/T568B
Data rates: 10/100/1000 Mbit/s (Gigabit Ethernet)
Contact finish: Gold-plated RJ45 contacts
Construction: Steel housing with black powder-coated finish
Dimensions (approx.): 89 × 34 × 483 mm

How to use

Mount the patch panel in a standard 19-inch rack occupying 2U of space and route individual Cat6 or Cat5e cables to the rear termination area. Use a 110 punch-down tool to terminate each cable into the corresponding color-coded block following either T568A or T568B wiring. Label ports as needed to match patch cords on the front RJ45 panel for straightforward identification and maintenance. Verify connections and network link speed after installation.

Usage recommendations

For optimal performance, use quality Cat6 cables, maintain proper cable bend radii, and follow structured cabling practices. Keep patch panel labeling consistent with rack documentation and test each link after termination to confirm Gigabit connectivity.

Specifications

Ports quantity:: 48
Weight:: 0.98 kg
Product colour:: Black

All features

Packaging content

Quick start guide:: Yes

Operational conditions

Operating relative humidity (H-H):: 0 - 50
Storage temperature (T-T):: -40 - 85
Operating temperature (T-T):: 0 - 70

Design

Material:: Steel
Product colour:: Black
Mounting:: Rack mounting
Rack capacity:: 2U

Network

Cabling technology:: 10/100/1000Base-T(X)
Maximum data transfer rate:: 1000 Mbit/s
Ports quantity:: 48
Connector(s):: RJ-45
Ethernet interface type:: Gigabit Ethernet, Fast Ethernet
Cable types supported:: Cat6
Cable shielding:: U/UTP (UTP)

Logistics data

Master (outer) case height:: 260 mm
Master (outer) case width:: 530 mm
Master (outer) case length:: 400 mm
Products per master (outer) case:: 10 pc(s)

Packaging data

Package weight:: 1500 g
Package depth:: 120 mm
Package height:: 75 mm
Package width:: 515 mm

Weight & dimensions

Weight:: 0.98 kg
Height:: 34 mm
Width:: 89 mm
Depth:: 483 mm

Certificates

Compliance certificates:: RoHS
