StarTech JD092A-ST SFP+ 10GBASE-SR 10GbE LC 850nm

Name: SFP+ Fiber Transceiver StarTech JD092A-ST JD092A-ST
Brand: StarTech
SKU: 4123791
Price: 20.49 EUR
Availability: InStock

Dreame – powerful cleaning with ease

Dreame vacuums for fast and efficient cleaning!

SFP+ Fiber Transceiver StarTech JD092A-ST — 10GBASE-SR 10GbE Multimode LC 850nm DDM, 300m, Compatible with HPE

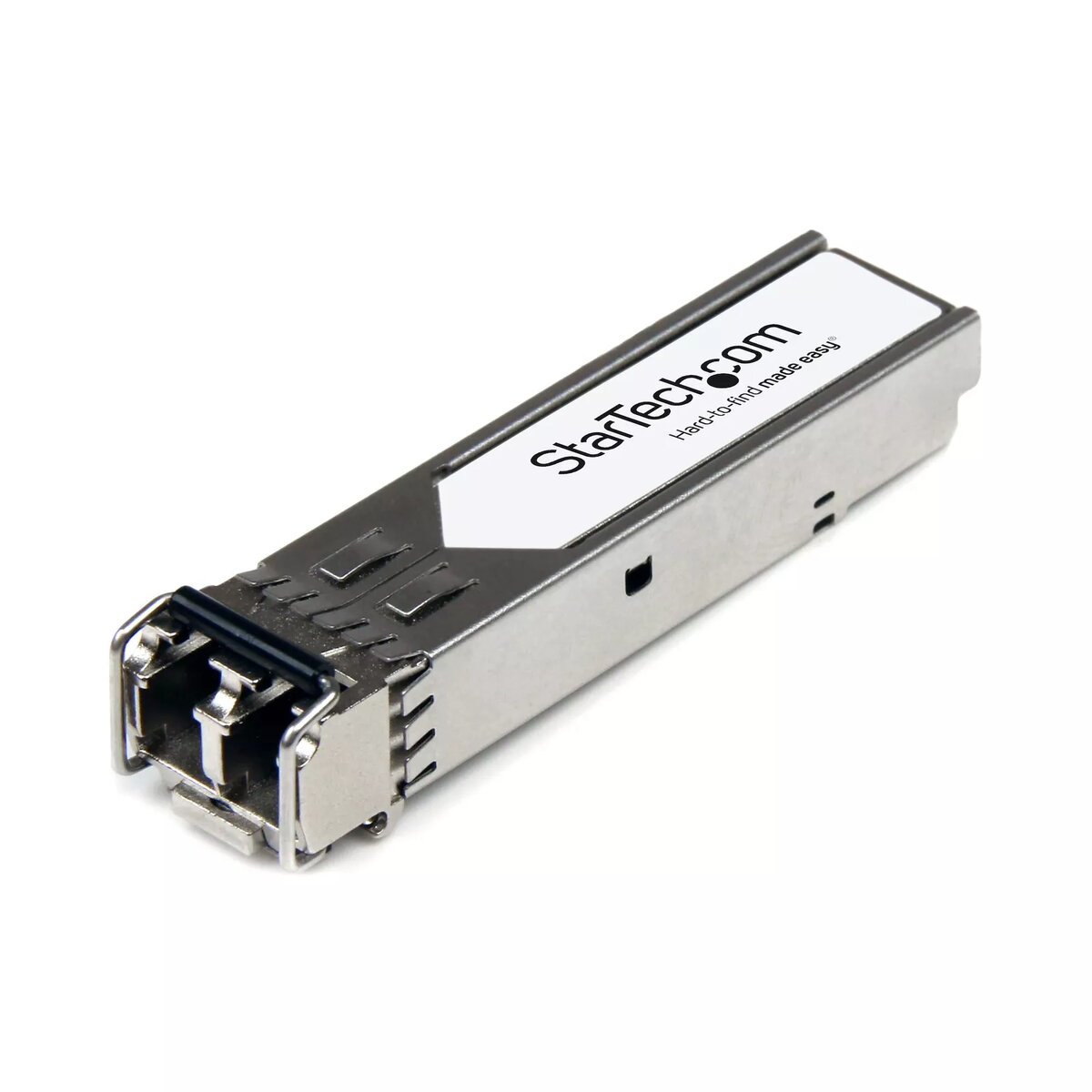

StarTech JD092A-ST SFP+ 10GBASE-SR 10GbE LC 850nm Photo 1

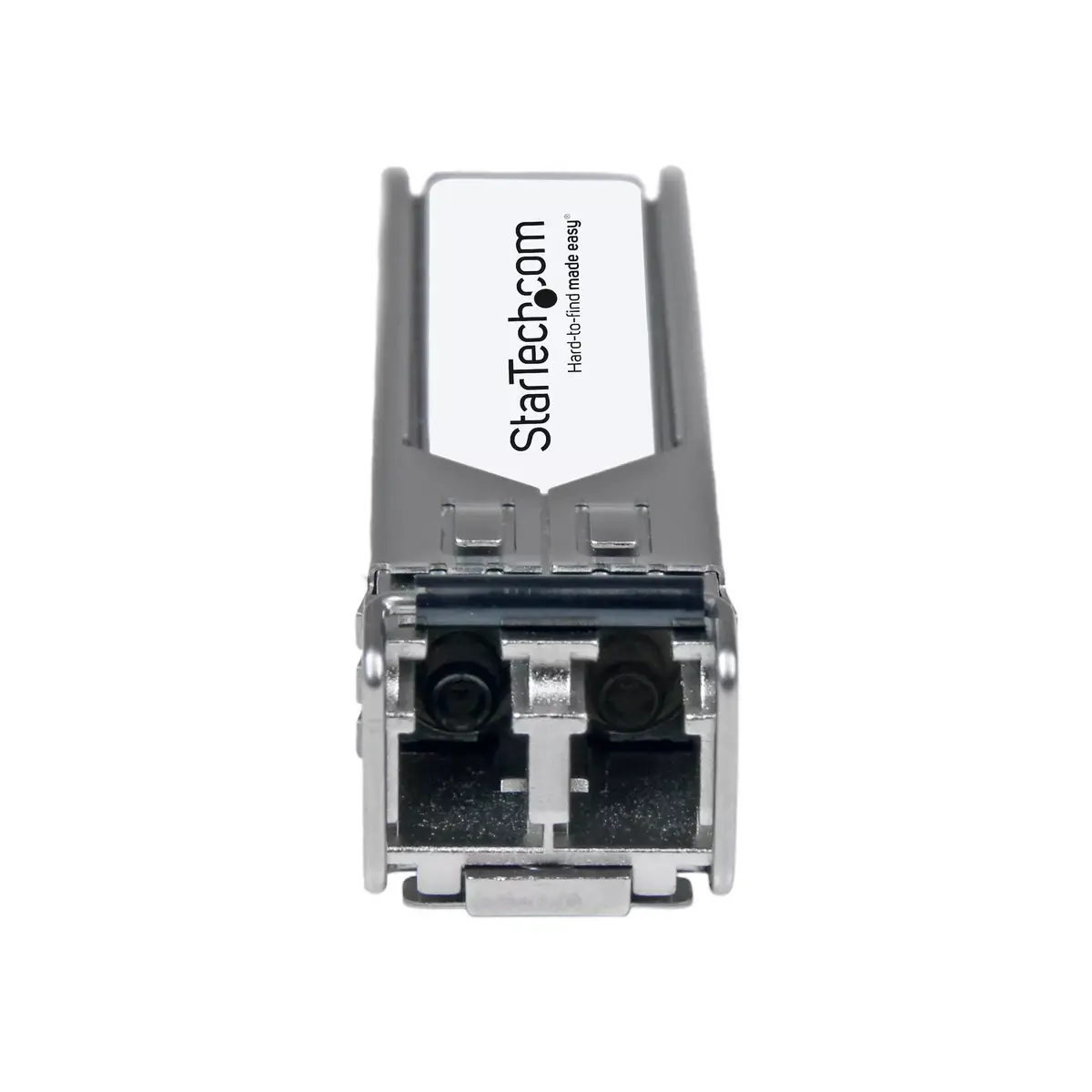

StarTech JD092A-ST SFP+ 10GBASE-SR 10GbE LC 850nm Photo 2

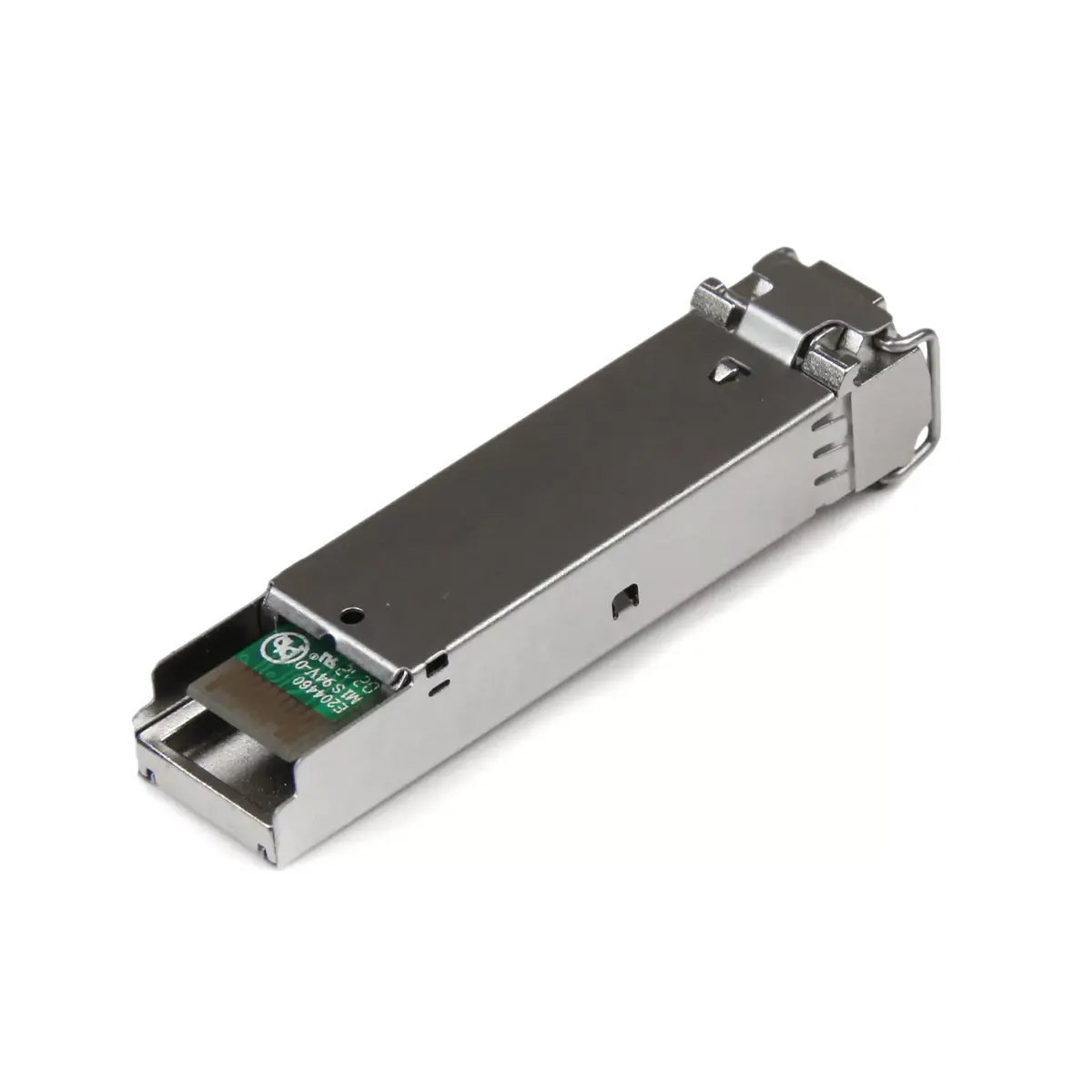

StarTech JD092A-ST SFP+ 10GBASE-SR 10GbE LC 850nm Photo 3

StarTech JD092A-ST SFP+ 10GBASE-SR 10GbE LC 850nm Photo 4

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

Compatible StarTech JD092A-ST SFP+ fiber optic transceiver for 10GBASE-SR links. Multimode 10GbE module with LC connector operating at 850 nm and supporting distances up to 300 m. SFP+ interface with DDM for diagnostics, typical power 1.3 W and compatibility with HPE switches (e.g., 5900, 12500, 5500). Suitable for data center and enterprise fiber uplinks.

Available for order: 8 pcs.

Warranty: 2 Years

SKU: 4123791

Manufacturer: StarTech

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

07.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

07.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

10.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.05 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

10.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The StarTech JD092A-ST SFP+ fiber transceiver is a 10GBASE-SR compatible module designed for multimode fiber links. It provides 10 Gbps connectivity over LC-terminated multimode fiber at an 850 nm wavelength and supports link lengths up to 300 m (984 ft). The module includes digital diagnostics monitoring (DDM) and is intended for use with HPE-compatible switches and routers.

Advantages

This SFP+ transceiver supports 10 Gbps data rates over multimode fiber and offers diagnostic monitoring for link parameters. It is hot-swappable to allow replacements or upgrades without powering down network equipment. The module is manufactured and tested to be compatible with HPE systems and is backed by a lifetime warranty and multilingual technical support.

Suitable for

Data center uplinks between switches and servers over multimode fiber
Enterprise campus fiber links within buildings or between nearby facilities (up to 300 m)
10GBASE-SR installations requiring LC connectors and 850 nm optics

When it may not be suitable

This transceiver is designed specifically for multimode fiber and 10GBASE-SR; it is not suitable for single-mode fiber deployments or for applications requiring wavelengths other than 850 nm. For links longer than 300 m, single-mode optics or different SR variants supporting greater distances are required.

Key specifications

Data rate: 10 Gbps
Fiber type: Multimode fiber
Wavelength: 850 nm
Connector: LC duplex
Maximum reach: 300 m (984 ft)
Digital Diagnostics Monitoring: Yes
Interface: SFP+ (hot-swappable)
Typical power consumption: ~1.3 W
MTBF: 498,745,585 hours

How to use

Insert the SFP+ module into an available SFP+ port on a compatible switch or router until it clicks into place, then connect LC-terminated multimode fiber patch cords to the module. The module supports hot-swapping, so it can be installed or removed while the host device is powered. Use the host device interface to verify link status and consult DDM readings for optical diagnostics.

What to consider before purchase

Confirm compatibility with your switch or router model (HPE compatibility recommended)
Ensure your network uses multimode fiber and LC connectors
Verify required link distance does not exceed 300 m
Check that 850 nm wavelength optics meet your network design

Usage recommendations

For reliable 10G multimode links, use quality OM3/OM4 multimode fiber and proper LC patch cords, monitor DDM values for signal health, and keep firmware and switch compatibility lists up to date to ensure seamless operation with HPE equipment.

Specifications

Interface type:: SFP+
Maximum data transfer rate:: 10000 Mbit/s
Weight:: 0.02 kg
Product colour:: Silver

All features

Performance

Interface type:: SFP+
Maximum data transfer rate:: 10000 Mbit/s
Fiber ethernet cabling technology:: 10GBASE
Wavelength:: 850 nm
Fiber optic connector:: LC
Maximum transfer distance:: 300 m
Digital Diagnostics Monitoring (DDM):: Yes
Multi-mode fiber (MMF) supported:: Yes
SFP transceiver standard:: SR

Network

SFP transceiver type:: Fiber optic

Logistics data

Master (outer) case height:: 31 mm
Master (outer) case width:: 90 mm
Master (outer) case length:: 115 mm
Products per master (outer) case:: 1 pc(s)
Harmonized System (HS) code:: 85369010

Certificates

Certification:: CE, FCC, UR

Features

Mean time between failures (MTBF):: 498745585 h
Product colour:: Silver
Compatible products:: JD092A
Hot-swap:: Yes
Brand compatibility:: HP

Packaging data

Package weight:: 50 g
Package depth:: 115 mm
Package height:: 31 mm
Package width:: 90 mm
Number of products included:: 1 pc(s)

Weight & dimensions

Weight:: 0.02 kg
Height:: 13.7 mm
Width:: 58.4 mm
Depth:: 13.9 mm

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.: 1.3 W

Hide Show all

Instructions

mmo_75288372_1677849963_7202_2523.pdf

Description

Instructions

mmo_75288372_1677849963_7202_2523.pdf

Machine translation. Load original

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

Customer reviews

Show all reviews

Customer questions

FAQ

How much does the StarTech JD092A-ST SFP+ 10GBASE-SR 10GbE LC 850nm cost, and is it available for purchase?

The price is 20.49 € (valid at the time of publication and already includes all taxes). The item is available for order — 8 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 07.07.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Bank transfer. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All StarTech products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized StarTech service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: interface type, maximum data transfer rate, weight, product colour, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.

Where can I download the instructions for StarTech JD092A-ST SFP+ 10GBASE-SR 10GbE LC 850nm?

You can download the instructions in PDF format from the “Instructions” section on the product description page. The file contains complete information about installation, setup, and usage.
