SFP Transceiver Module StarTech.com JD118B

Name: SFP Transceiver Module StarTech.com JD118B JD118BST
Brand: StarTech
SKU: 431426
Price: 55.49 EUR
Availability: InStock

EcoFlow – energy without limits

Powerful EcoFlow stations for energy anywhere!

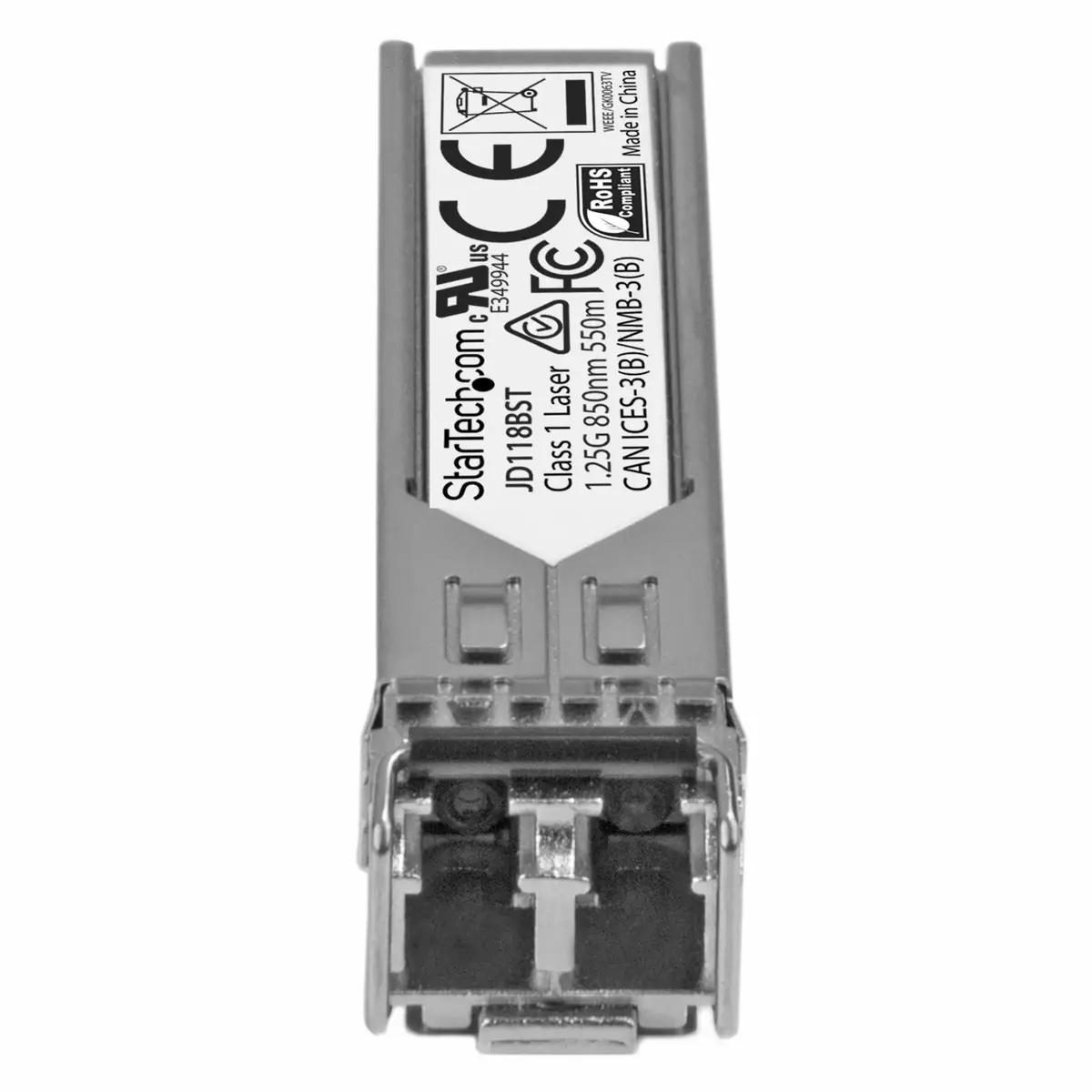

SFP Transceiver Module StarTech.com JD118B Photo 3

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The StarTech.com HP JD118B Compatible SFP Transceiver Module is designed for 1GbE Multi Mode Fiber Optic applications. It supports a maximum data transfer rate of 1250 Mbit/s and operates over a distance of up to 550m at 850nm. This reliable module features DDM for monitoring and is housed in a durable aluminum casing. With a low power consumption of 1W and an impressive MTBF of over 3.3 million hours, it ensures long-lasting performance for HPE 5900, 12500, and 5500 series switches.

Available at price 55.49 €: 5 pcs.

Total available for order: 15 pcs.

Warranty: 2 Years

SKU: 431426

Manufacturer: StarTech

Learn more

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.99 €

Deliver

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

25.09.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

30.09.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.05 kg)

Parcel couriers

Unisend LV / Venipak Pickup LV / Venipak Locker LV / DPD Paku skapis / Omniva LV / Latvijas Pasts pakomāts / Latvijas Pasts nodaļa

30.09.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

Available for private customers at price 64.99 €: 5 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The StarTech.com SFP Transceiver Module JD118B is a 1 Gbps multi-mode fiber (MMF) optic transceiver compatible with HPE JD118B interfaces. Designed for 1000BASE-SX networks, it supports a wavelength of 850 nm and a maximum link distance of up to 550 m (1804 ft). The module includes Digital Diagnostics Monitoring (DDM), low power consumption (<1 W) and a durable metal housing, making it suitable for installation in HPE 5900, 12500 and 5500 series switches and other compatible devices.

Advantages

This SFP module offers hot-swappable installation to minimize network downtime and an MTBF of approximately 3,381,761 hours for long-term reliability. It supports standard LC fiber connectors and delivers a maximum data transfer rate of 1.25 Gbps for 1000BASE-SX links. The product is covered by StarTech.com’s lifetime warranty and includes lifetime multilingual technical support.

Suitable for

Short-reach Gigabit Ethernet links over multi-mode fiber (up to 550 m)
Upgrading or replacing SFP ports in HPE switches and compatible network equipment
Data center patching and campus backbone links within the supported distance

Key specifications

Interface type: SFP (Small Form-factor Pluggable)
Data rate: up to 1.25 Gbps (1000BASE-SX)
Fiber type: Multi Mode Fiber (MMF)
Wavelength: 850 nm
Connector: LC
Maximum distance: 550 m (1804 ft)
Power consumption: < 1 W
MTBF: 3,381,761 hours
Form factor: SFP module
Weight: 0.018 kg

How to use

Ensure the target switch or router supports SFP modules and is HPE-compatible where required. With the device powered on or off (hot-swap supported), insert the JD118B SFP module into an empty SFP port until it seats securely. Connect LC-terminated multi-mode fiber cables to the module, observing proper transmit/receive orientation. After insertion, verify link status on your switch and confirm speed and diagnostics through the device management interface or the module's DDM readings.

Usage recommendations

Use OM1/OM2/OM3 multimode fiber types as appropriate for the installed infrastructure and keep cable connectors clean to maintain signal integrity. For distances approaching the 550 m limit, check link budget and consider higher-grade multimode fiber or repeaters if necessary.

Specifications

Interface type:: SFP
Maximum data transfer rate: The maximum speed with which data can be transmitted from one device to another.: 1250 Mbit/s
SFP transceiver type:: Fiber optic

All features

Logistics data

Country of origin: Country where the device is made. Aka Country of manufacture (COM).: China
Products per master (outer) case:: 36 pc(s)
Master (outer) case height:: 203 mm
Master (outer) case length:: 300 mm
Harmonized System (HS) code:: 85369010
Master (outer) case width:: 250 mm

Packaging data

Number of products included: The number of products that are included in the package.: 1 pc(s)
Package weight: Weight of the packaged product.: 46 g
Package height: The distance from the top to the bottom of the packaging.: 32 mm
Package depth: The distance from the front to the back of the packaging.: 93 mm
Package width: The distance from one side of the packaging to the other.: 118 mm

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.: 0.018 kg
Height: The measurement of the product from head to foot or from base to top.: 12.5 mm
Depth: The distance from the front to the back of something.: 56.6 mm
Width: The measurement or extent of something from side to side.: 13.7 mm

Operational conditions

Operating relative humidity (H-H):: 5 - 95
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.: -40 - 85
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.: 0 - 70

Sustainability

Sustainability certificates:: RoHS

Certificates

Certification:: CE, FCC, UR

Power

Power consumption (typical): Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.: 1 W

Features

Mean time between failures (MTBF): Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.: 3381761 h
Hot-swap:: Yes
Housing material: What the casing of the product is made of.: Aluminium
Product colour: The colour e.g. red, blue, green, black, white.: Silver

Performance

Digital Diagnostics Monitoring (DDM):: Yes
Duplex system: A duplex communication system is a point-to-point system composed of two connected parties or devices that can communicate with one another in both directions, simultaneously.: Full
Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.: IEEE 802.3z
Wavelength: The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light.: 850 nm
Maximum transfer distance: The greatest distance over which the data/signal can be transferred.: 550 m
SFP transceiver standard:: SX
Fiber optic connector: This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced.: LC
Multi-mode fiber (MMF) supported:: Yes
Interface type:: SFP
Maximum data transfer rate: The maximum speed with which data can be transmitted from one device to another.: 1250 Mbit/s
SFP transceiver type:: Fiber optic

Hide Show all

Instructions

mmo_35446038_1677849968_0087_2372.pdf

Description

Instructions

mmo_35446038_1677849968_0087_2372.pdf

Machine translation. Load original

Show details Hide details

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

Warehouse	Stock	Delivery to the store	Store Price
WH354	5	25.09.2026 Best delivery	64.99 €

Available only for legal entities
Warehouse	Stock	Delivery to the store	Store Price
EU9	5	25.09.2026 Best delivery	55.49 € Best price
WH109	5	09.10.2026	55.49 €

64.99 €

Stock: 5

Delivery Date: 25.09.2026 Best delivery

Warehouse: WH354

Available only for legal entities

55.49 €

Stock: 5

Delivery Date: 25.09.2026 Best delivery

Warehouse: EU9

55.49 €

Stock: 5

Delivery Date: 09.10.2026

Warehouse: WH109

Customer reviews

Show all reviews

Customer questions

FAQ

How much does the SFP Transceiver Module StarTech.com JD118B cost, and is it available for purchase?

The price is 55.49 € (valid at the time of publication and already includes all taxes). The item is available for order — 15 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 25.09.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All StarTech products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized StarTech service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: interface type, maximum data transfer rate, sfp transceiver type, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.

Where can I download the instructions for SFP Transceiver Module StarTech.com JD118B?

You can download the instructions in PDF format from the “Instructions” section on the product description page. The file contains complete information about installation, setup, and usage.
