StarTech OM4 LC–LC Uniboot Fiber Cable 2 m

Name: Multimode Fiber Patch Cable StarTech OM4RLCLC2M
Brand: StarTech
SKU: 11546474
Price: 20.99 EUR
Availability: InStock

Dreame – powerful cleaning with ease

Dreame vacuums for fast and efficient cleaning!

Multimode Fiber Patch Cable StarTech OM4 LC to LC (UPC) 50/125µm Uniboot OFNR, 2 m, Violet, 40G/100G

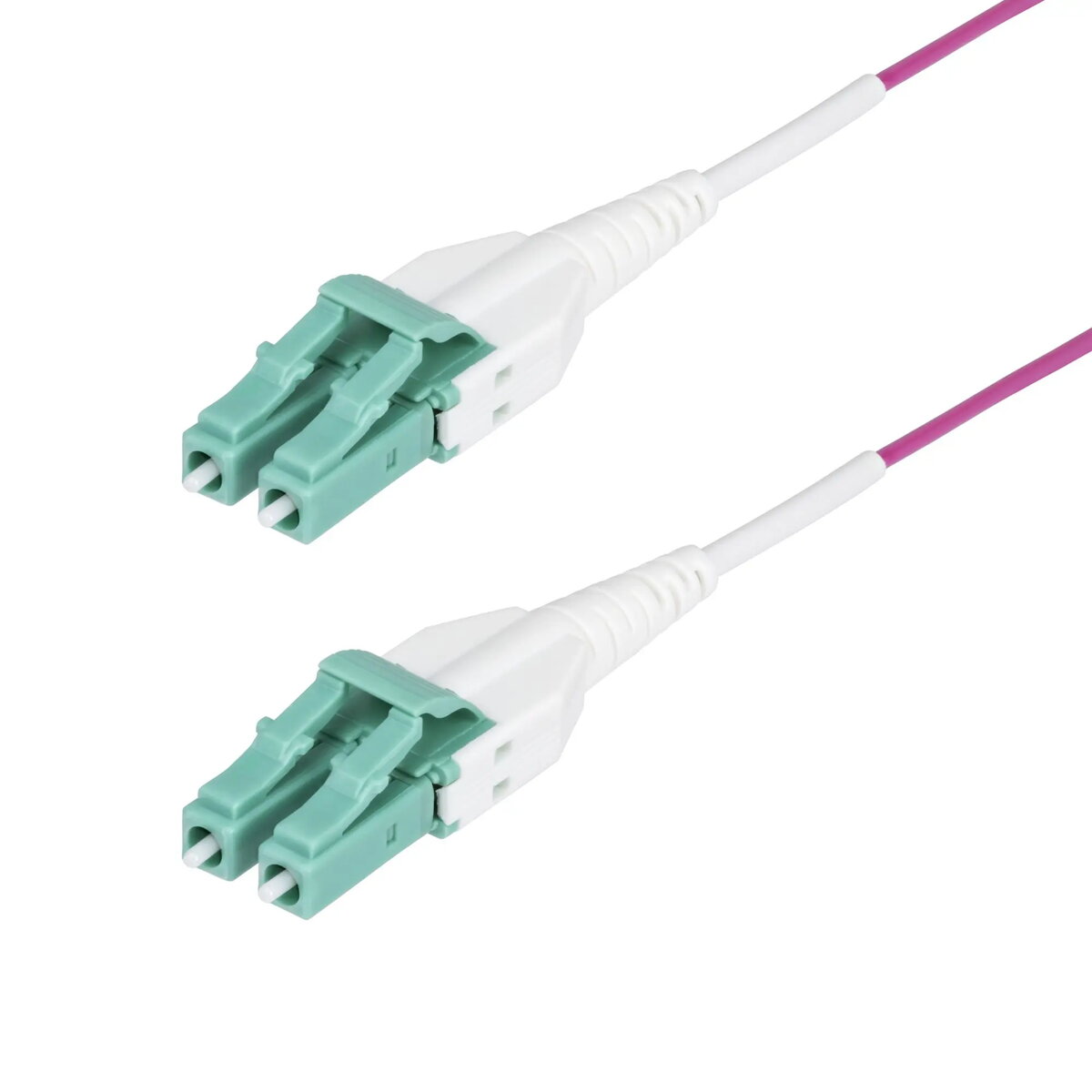

StarTech OM4 LC–LC Uniboot Fiber Cable 2 m Photo 1

StarTech OM4 LC–LC Uniboot Fiber Cable 2 m Photo 2

StarTech OM4 LC–LC Uniboot Fiber Cable 2 m Photo 3

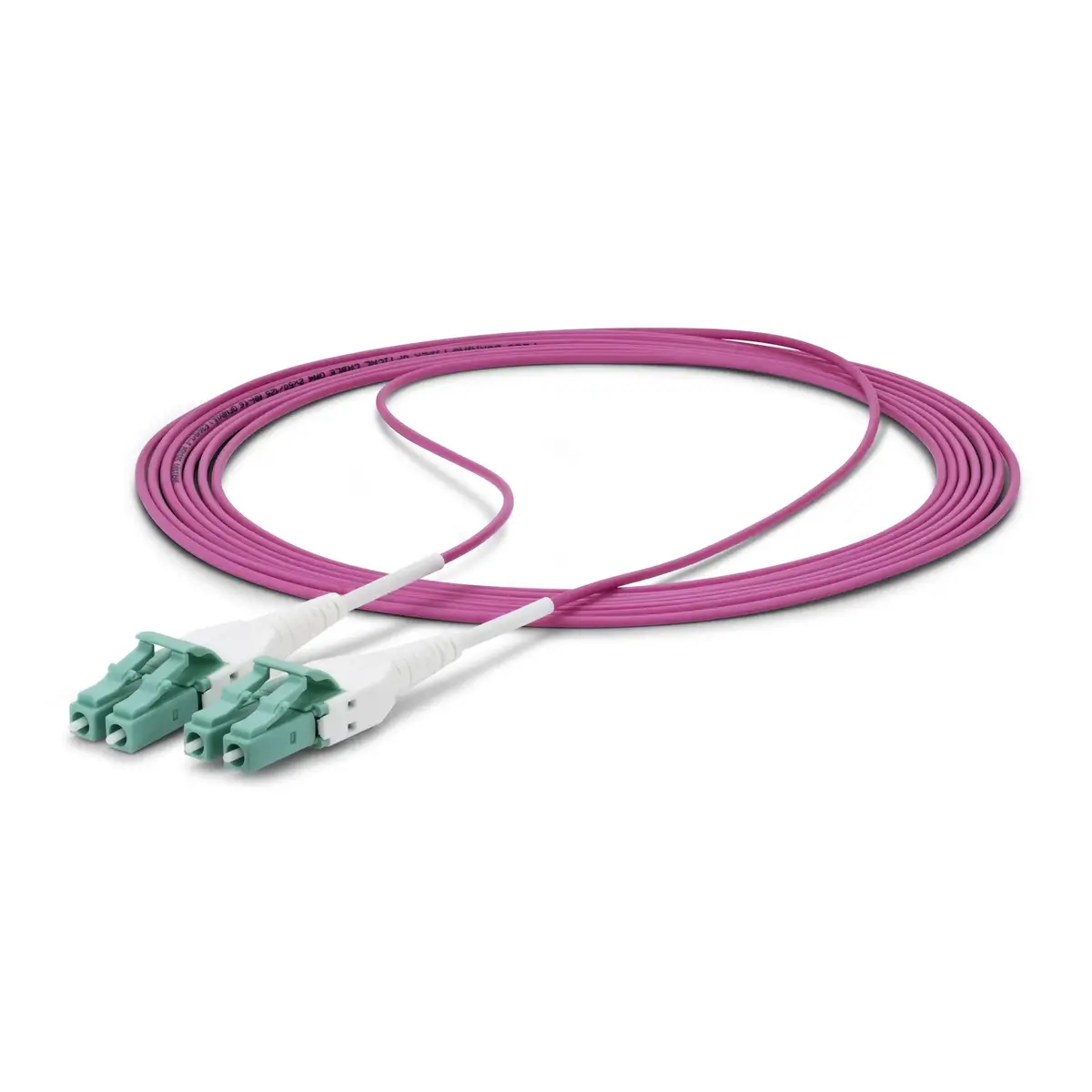

StarTech OM4 LC–LC Uniboot Fiber Cable 2 m Photo 4

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

2 m StarTech OM4 multimode fiber patch cable with LC to LC (UPC) uniboot connectors. 50/125µm core/cladding, OFNR riser-rated jacket, designed for 40G/100G short-range applications using VCSEL transceivers. Duplex LC configuration provides full-duplex links for data center, enterprise backbone and high-speed intra-rack connections.

Available at price 20.99 €: 37 pcs.

Total available for order: 377 pcs.

Warranty: 2 Years

SKU: 11546474

Manufacturer: StarTech

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

01.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

01.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

06.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.03 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

06.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

Available for private customers at price 27.49 €: 85 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The StarTech OM4 LC to LC (UPC) multimode fiber patch cable in Erika Violet is a 2 m duplex uniboot cable designed for high-density network environments and short-range 40G/100G links. It uses 50/125 µm multimode fiber with LC/LC UPC polished connectors and an OFNR (riser) flame-retardant PVC jacket to meet riser-space safety requirements. The Erika Violet jacket follows the TIA colour standard for OM4, simplifying identification in mixed cabling installations.

Advantages

This OM4 patch cable is built with laser-optimized multimode fiber suitable for VCSEL and LED sources at 850 nm and 1300 nm, delivering low attenuation and high modal bandwidth for demanding short-range applications. The compact uniboot LC design reduces connector bulk for better density and airflow in racks. UPC-polished ceramic ferrules improve return loss versus older PC polish types, and aramid reinforcement with molded strain reliefs enhances tensile strength and durability.

Suitable for

Data centre and enterprise backbone links
Short-range 40G and 100G connections using VCSEL transceivers
High-density patch panels, SANs and fiber switches
LC-based SFP/SFP+ and other LC transceiver interconnects

When it may not be suitable

This cable is intended for multimode OM4 environments and short-range VCSEL-based links; it is not appropriate for long-haul single-mode networks or applications that require single-mode fiber. If your infrastructure relies on non-OM4 colour standards or custom jacket requirements, verify compatibility before deployment.

Key specifications

Fiber type: Multimode 50/125 µm (OM4)
Connector type: LC to LC, UPC polished
Length: 2 m (6.6 ft)
Jacket rating: OFNR (riser), PVC jacket material
Colour: Erika Violet (TIA OM4 standard)
Bandwidth (850 nm): 2000 MHz·km
Attenuation: 3 dB/km (typical per TIA)
Cable outer diameter: 1.6 mm
Minimum bend radius: 7.5 mm
Supported speeds: up to 100 Gbps (full duplex)

How to use

Route the uniboot cable through your patch panel or rack space and insert the LC connectors into the matching LC ports of network switches, transceivers or patch panels. The compact uniboot design eases cable management in high-density panels; avoid sharp bends near the minimum bend radius and secure the cable using appropriate cable management hardware. Follow standard fiber handling procedures: keep connector endfaces clean, use dust caps when not in use, and inspect with a microscope before mating.

What to consider before purchase

Confirm your equipment uses multimode OM4 fiber and LC/LC UPC connectors
Verify riser (OFNR) jacket rating meets your building fire-code requirements
Ensure 2 m length and 1.6 mm cable diameter suit your rack and patching layout
Check transceiver compatibility for 40G/100G VCSEL-based short-range links

Usage recommendations

For best performance, use this OM4 LC to LC uniboot cable for short-range, high-speed connections within data centres and racks, maintain gentle cable bend radii, and keep connector endfaces clean to minimize insertion loss and ensure reliable 40G/100G links.

Specifications

Cable type:: OFNR
Cable length:: 2 m
Connector 1:: LC
Connector 2:: LC
Weight:: 0.0307 kg
Product colour:: Violet

All features

Full duplex:: Yes
Data transfer rate:: 100 Gbit/s
Fiber mode structure:: Multi-mode
Core diameter:: 50 µm
Cladding diameter:: 125 µm
Bending radius:: 7.5 mm
Wavelengths supported:: 1300, 850
Fibre optic type:: OM4
Connector polish type:: PC

Features

Cable length:: 2 m
Cable type:: OFNR
Connector 1:: LC
Connector 2:: LC
Product colour:: Violet
Jacket material:: Polyvinyl chloride (PVC)
Connector 1 gender:: Male
Connector 2 gender:: Male
Cable shape:: Round

Other features

Cable diameter:: 1.6 mm

Weight & dimensions

Weight:: 0.0307 kg

Operational conditions

Storage temperature (T-T):: -20 - 60
Operating temperature (T-T):: -20 - 60

Packaging data

Package weight:: 30.7 g
Package depth:: 180 mm
Package width:: 230 mm

Logistics data

Master (outer) case height:: 270 mm
Master (outer) case width:: 420 mm
Master (outer) case length:: 420 mm
Products per master (outer) case:: 300 pc(s)

Packaging content

Quantity per pack:: 1 pc(s)

Certificates

Compliance certificates:: RoHS, CE
