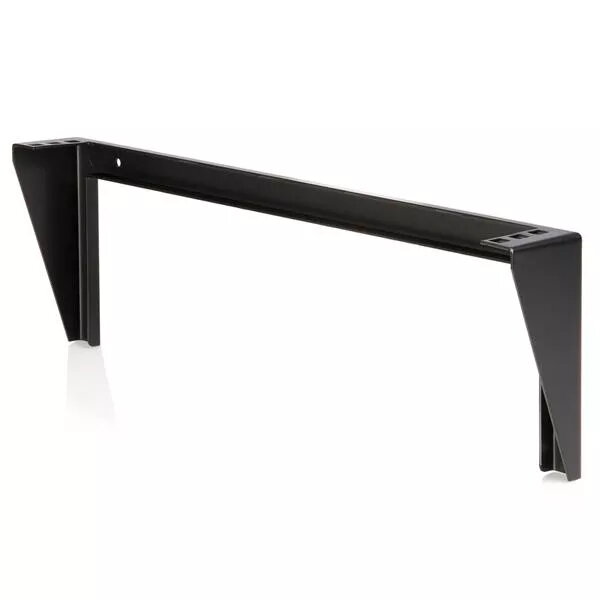

StarTech 1U 19in Vertical Wall Mount Rack Bracket

Name: 1U 19in Steel Vertical Wall RK119WALLV
Brand: StarTech
SKU: 4170528
Price: 58.99 EUR
Availability: InStock

JBL – powerful sound always with you

JBL speakers and headphones for pure and deep sound!

1U 19in Steel Vertical Wall Mount Rack Bracket StarTech — 56.7 kg capacity, 504×60 mm

StarTech 1U 19in Vertical Wall Mount Rack Bracket Photo 1

StarTech 1U 19in Vertical Wall Mount Rack Bracket Photo 2

StarTech 1U 19in Vertical Wall Mount Rack Bracket Photo 3

StarTech 1U 19in Vertical Wall Mount Rack Bracket Photo 4

StarTech 1U 19in Vertical Wall Mount Rack Bracket Photo 5

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

StarTech 1U vertical wall mount equipment rack bracket for 19-inch racks, constructed from steel and finished in black. Designed to hold standard 1U equipment with a maximum weight capacity of 56.7 kg. Physical dimensions: 19" (48.3 cm) width, 504 mm overall width, 60 mm depth. Suited for mounting network switches, patch panels or small servers in limited spaces.

Available for order: 4 pcs.

Warranty: 2 Years

SKU: 4170528

Manufacturer: StarTech

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

29.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

29.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

02.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.66 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

02.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

StarTech 1U 19in Steel Vertical Wall Mount Rack Bracket is a compact rackmount solution that supports standard 1U equipment for network and AV installations. Constructed from steel with a black finish, the bracket follows EIA-310 19-inch rack standards and provides a space-saving option for mounting switches, patch panels, power strips and other 1U devices vertically on a wall or horizontally under a desk. The bracket is rated to support up to 56.7 kg and has physical dimensions of 504×60 mm with a 19-inch (48.3 cm) mounting width. Mounting holes are positioned to match standard 16-inch construction spacing for straightforward installation on typical wall or ceiling surfaces. This product is TAA compliant and covered by a StarTech.com Lifetime Warranty.

Advantages

The steel construction and adherence to 19-inch EIA-310 rack standards deliver reliable mechanical support for 1U equipment while minimizing footprint. With a 56.7 kg weight capacity the bracket can accommodate heavier network devices and power distribution units within its size category. The fixed 504×60 mm profile and 19-inch mounting width make it compatible with common rackmount hardware and simplify integration into small office or home office environments. Prepositioned mounting holes at 16-inch centers reduce alignment work during installation.

Suitable for

Mounting network switches and routers in constrained spaces
Installing patch panels and cable management hardware
Mounting compact servers or power strips vertically on walls or horizontally under desks
SoHo and small IT closets where a full-size rack is impractical

Key specifications

Form factor: 1U compatible, 19-inch rack width (48.3 cm)
Material and finish: Steel, black finish
Weight capacity: 56.7 kg
Overall dimensions: 504 mm (width) × 60 mm (depth)
Mounting orientation: Vertical wall mount or horizontal under-desk mount
Mounting hole spacing: Positioned at 16-inch centers for standard wall framing
Standards compliance: EIA-310 rack standard

How to use

Select a suitable wall or under-desk location that can support the combined weight of the bracket and installed equipment. Position the bracket so its mounting holes align with studs or other secure anchors; the holes are spaced to match standard 16-inch stud centers. Use appropriate fasteners for the wall material (wood screws for studs, anchors for drywall) and tighten securely. Install rackmount equipment into the 1U bracket using standard rack screws and rails or mounting hardware compatible with 19-inch EIA-310 spacing. For horizontal under-desk installation, orient the bracket so mounted equipment is accessible from the workspace.

Usage recommendations

Verify the combined weight of installed devices does not exceed the 56.7 kg capacity and distribute weight evenly across the mounting points. Use proper wall anchors or mount directly into studs to ensure secure attachment. Allow adequate ventilation around mounted equipment and route cabling to avoid strain on connectors.

Specifications

Rack capacity:: 1U
Weight:: 0.66 kg
Height:: 151 mm
Depth:: 60 mm
Width:: 504 mm
Size (imperial):: 19 "
Product colour:: Black

All features

Packaging data

Package weight:: 973.86 g
Package depth:: 518 mm
Package height:: 71 mm
Package width:: 167 mm
Screws included:: Yes

Logistics data

Quantity per pack:: 1 pc(s)
Harmonized System (HS) code:: 85389099

Features

Certification:: CE, UL
Product colour:: Black
Maximum weight capacity:: 56.7 kg
Rack capacity:: 1U

Weight & dimensions

Weight:: 0.66 kg
Size (imperial):: 19 "
Height:: 151 mm
Width:: 504 mm
Depth:: 60 mm

Technical details

Sustainability certificates:: RoHS
