StarTech.com 6U Hinged Open Frame Wall-Mount Server Rack

Name: StarTech.com 6U Hinged Open Frame RK619WALLOH
Brand: StarTech
SKU: 3596494
Price: 232.49 EUR
Availability: InStock

Aquaphor

Filters you can trust. Pure water every day.

StarTech.com 6U Hinged Open Frame Wall-Mount Server Rack, 22-inch Deep

StarTech.com 6U Hinged Open Frame Wall-Mount Server Rack Photo 1

StarTech.com 6U Hinged Open Frame Wall-Mount Server Rack Photo 2

StarTech.com 6U Hinged Open Frame Wall-Mount Server Rack Photo 3

StarTech.com 6U Hinged Open Frame Wall-Mount Server Rack Photo 4

StarTech.com 6U Hinged Open Frame Wall-Mount Server Rack Photo 5

StarTech.com 6U Hinged Open Frame Wall-Mount Server Rack Photo 6

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The StarTech.com 6U Hinged Open Frame Wall-Mount Server Rack provides a reliable 22-inch deep mounting solution for networking equipment. Featuring a hinged design for easy access to cabling and ports, this black steel rack supports a maximum weight capacity of 49.8 kg. Ideal for small offices or server rooms, it ensures efficient organization and ventilation for your IT infrastructure.

Available for order: 5 pcs.

Warranty: 2 Years

SKU: 3596494

Manufacturer: StarTech

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

15.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

15.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

20.07.2026 {{selectedOffer.courierDeliveryString}}

From 13.63 € (Weight: 17.34 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Locker LV

20.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

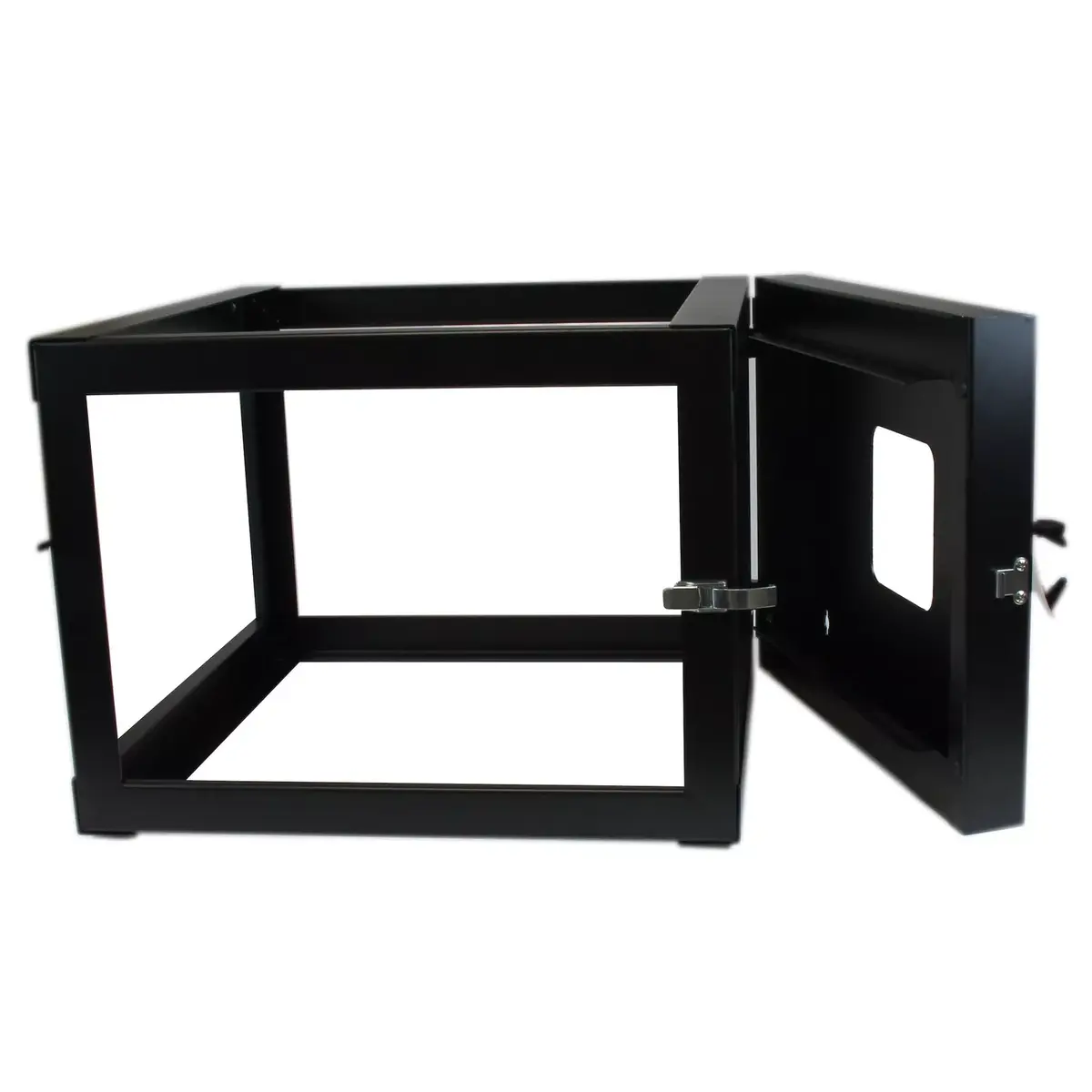

The StarTech.com 6U Hinged Open Frame Wall-Mount Server Rack is a professional-grade mounting solution designed for 19-inch wide networking, A/V, and server equipment. With a depth of 22 inches, this rack provides a secure and organized way to house your IT infrastructure in environments where floor space is limited. The unique hinged design allows the entire frame to swing open, providing convenient access to the rear of your equipment for cabling, port management, and routine maintenance.

Advantages

This server rack features a robust 4-post construction that ensures enhanced stability and support for your hardware. Built from high-quality SPCC cold-rolled steel, the rack offers long-term durability and strength. The open-frame design promotes maximum airflow, which helps prevent equipment overheating and maintains optimal operating temperatures. Furthermore, the rack includes all necessary mounting hardware, such as screws and cage nuts, which simplifies the installation process and eliminates the need for additional purchases.

Suitable for

Small offices and home server rooms
Telecommunications and networking closets
Mounting 19-inch wide servers and A/V equipment
Environments requiring frequent access to equipment ports and cables

When it may not be suitable

This open-frame rack does not provide physical security or protection against dust, debris, or unauthorized access, as it lacks side panels and a locking door. It is not recommended for environments where equipment needs to be shielded from external physical contact or environmental contaminants.

Key specifications

Rack height: 6U
Depth: 22 inches
Maximum weight capacity: 49.8 kg (110 lbs)
Material: SPCC cold-rolled steel
Design: 4-post hinged open frame
Color: Black

How to use

To install the rack, securely mount the frame to a wall using appropriate hardware for your wall type. Once the frame is fixed, you can mount your equipment using the provided rack screws and cage nuts. The hinged mechanism allows you to swing the rack away from the wall, granting full access to the rear panels of your devices. Ensure that the wall structure is capable of supporting the combined weight of the rack and your installed equipment.

What to consider before purchase

Verify that your wall structure can support the weight of the rack and your specific equipment.
Ensure the 22-inch depth is sufficient for your deepest piece of hardware.
Confirm that the 6U height provides enough space for your current and future equipment needs.
Assess whether an open-frame design meets your security and environmental requirements.

Usage recommendations: Regularly check the wall mounting points and the hinge mechanism to ensure they remain secure and operate smoothly over time. Ensure that the total weight of your equipment does not exceed the 49.8 kg limit to maintain structural integrity.

Specifications

Rack capacity:: 6U
Width:: 556 mm
Depth:: 602 mm
Height:: 408 mm
Weight:: 14 kg
Mounting depth (max):: 502 mm
Product colour:: Black

All features

Features

Type:: Wall mounted rack
Material:: Steel
Product colour:: Black
Maximum weight capacity:: 49.8 kg
Castor wheels:: No
Rack capacity:: 6U
Cable management:: No
Product design:: 4-post
Mounting hole shape:: Square
Key lock:: No
Frame type:: Open
Adjustable mounting rails:: No
Front door key lock:: No

Packaging data

Package weight:: 16400 g
Package depth:: 660 mm
Package height:: 480 mm
Package width:: 636 mm

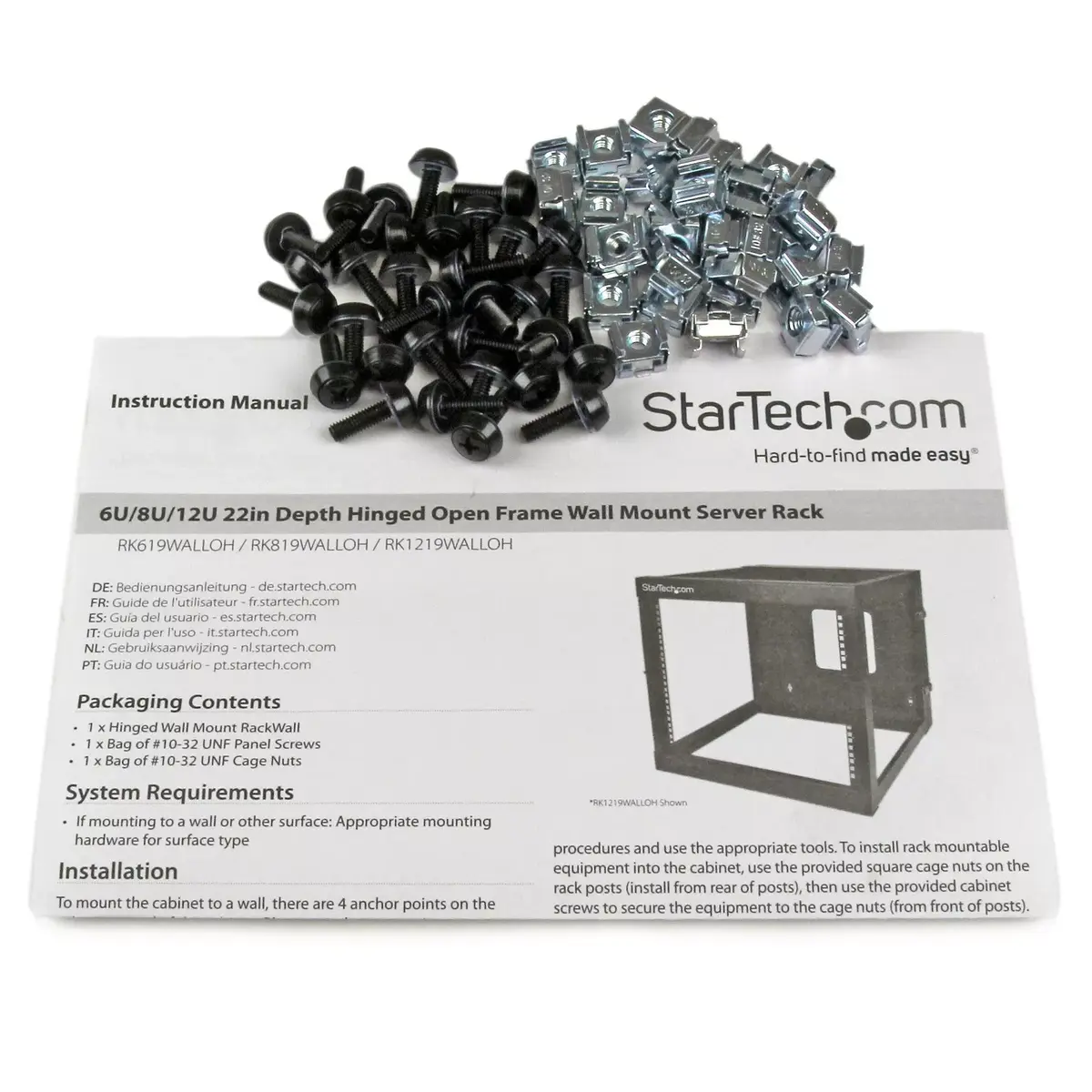

Manual:: Yes
Number of screws:: 24
Screws included:: Yes
Nuts included:: Yes
Number of nuts:: 24

Logistics data

Master (outer) case height:: 480 mm
Master (outer) case width:: 636 mm
Master (outer) case length:: 660 mm
Products per master (outer) case:: 1 pc(s)
Harmonized System (HS) code:: 85381000

Other features

Compliance industry standards:: EIA/ECA-310-E

Weight & dimensions

Weight:: 14 kg
Height:: 408 mm
Width:: 556 mm
Depth:: 602 mm
Mounting depth (max):: 502 mm

Technical details

Sustainability certificates:: CE, RoHS

Hide Show all
