Fiber Optic Cable StarTech.com 7m LC to LC UPC

Name: Fiber Optic Cable StarTech.com 7m SMDOS2LCLC7M
Brand: StarTech
SKU: 10913237
Price: 30.49 EUR
Availability: InStock

JBL – powerful sound always with you

JBL speakers and headphones for pure and deep sound!

Fiber Optic Cable StarTech.com 7m LC to LC UPC OS2 9/125µm 100G Bend Insensitive

Fiber Optic Cable StarTech.com 7m LC to LC UPC Photo 1

Fiber Optic Cable StarTech.com 7m LC to LC UPC Photo 2

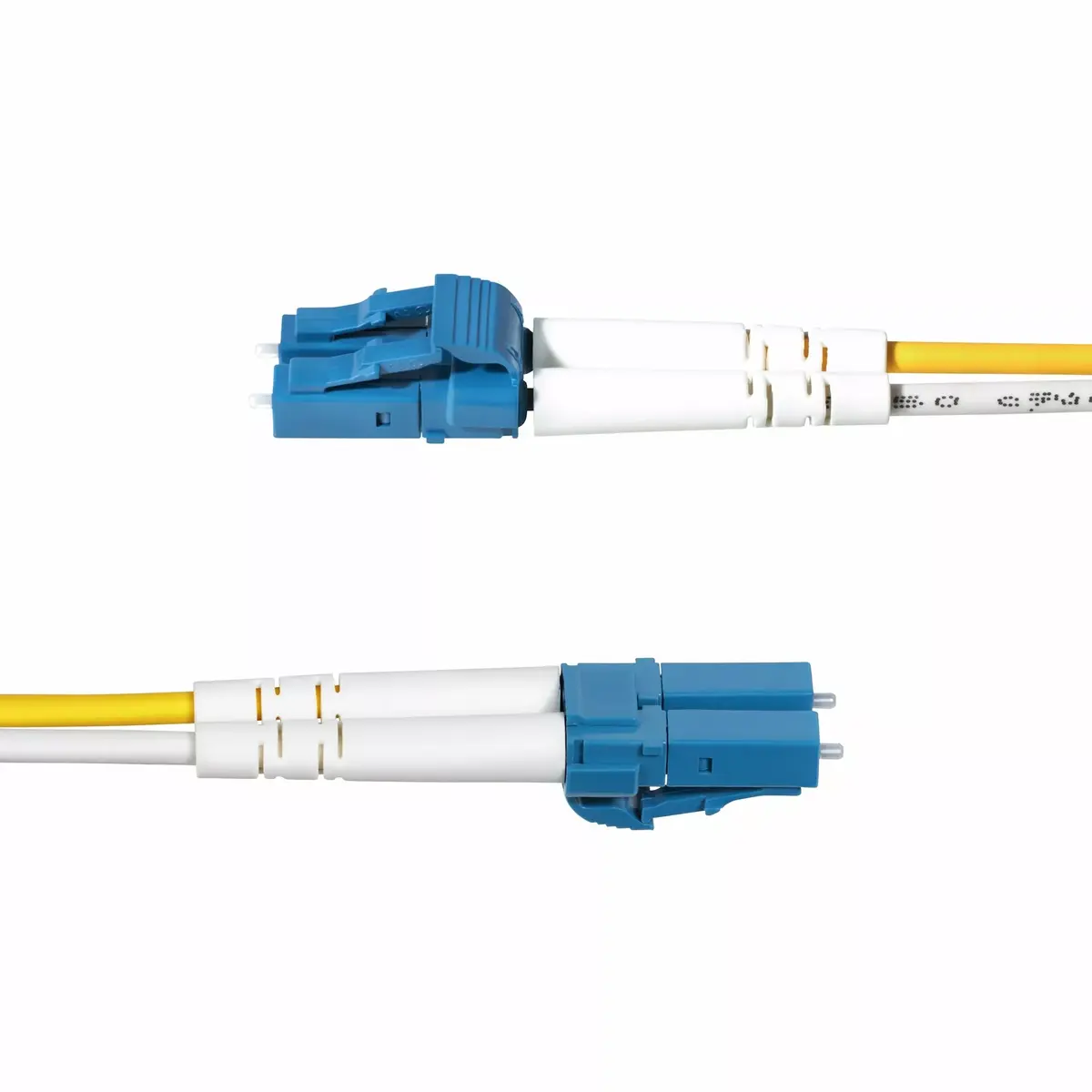

Fiber Optic Cable StarTech.com 7m LC to LC UPC Photo 3

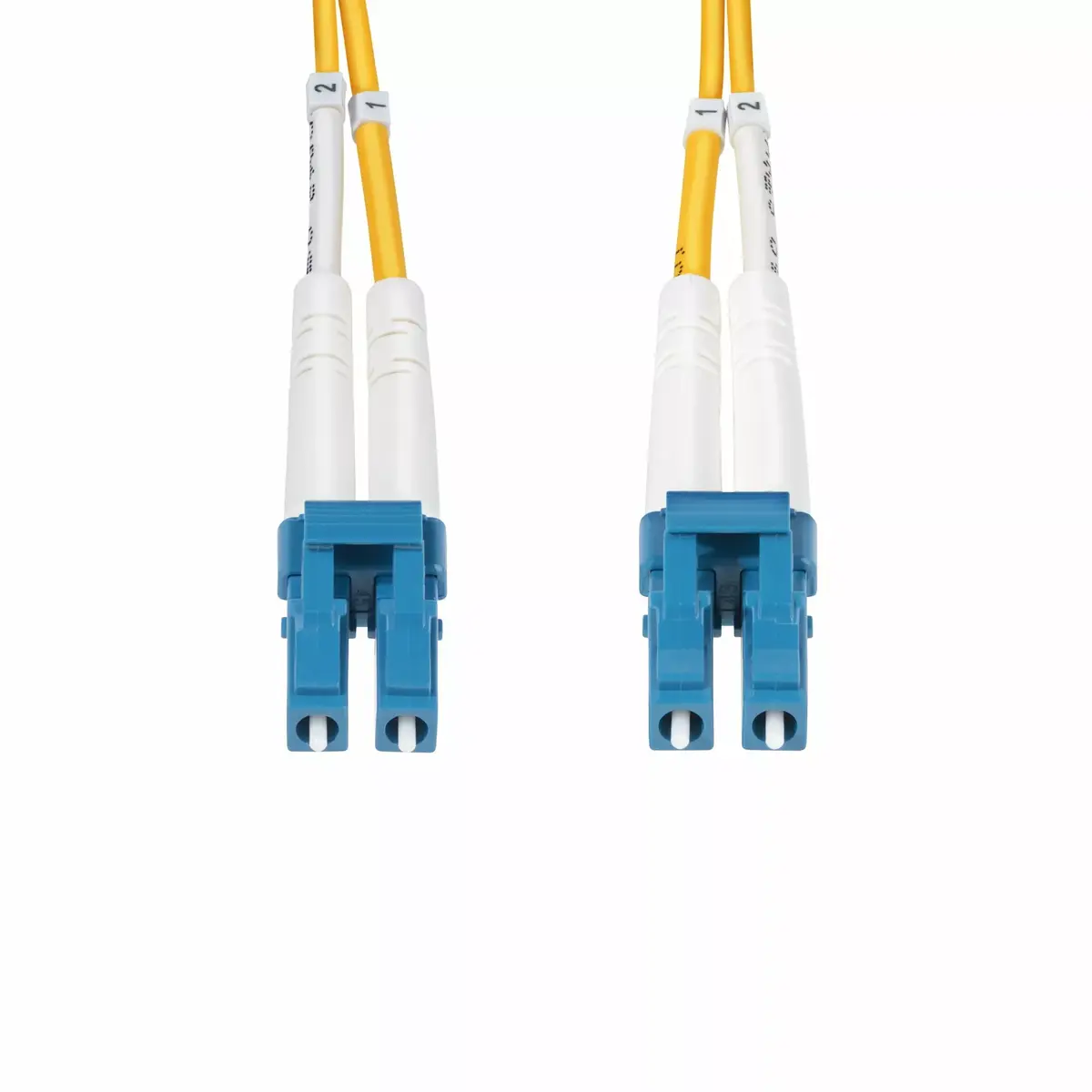

Fiber Optic Cable StarTech.com 7m LC to LC UPC Photo 4

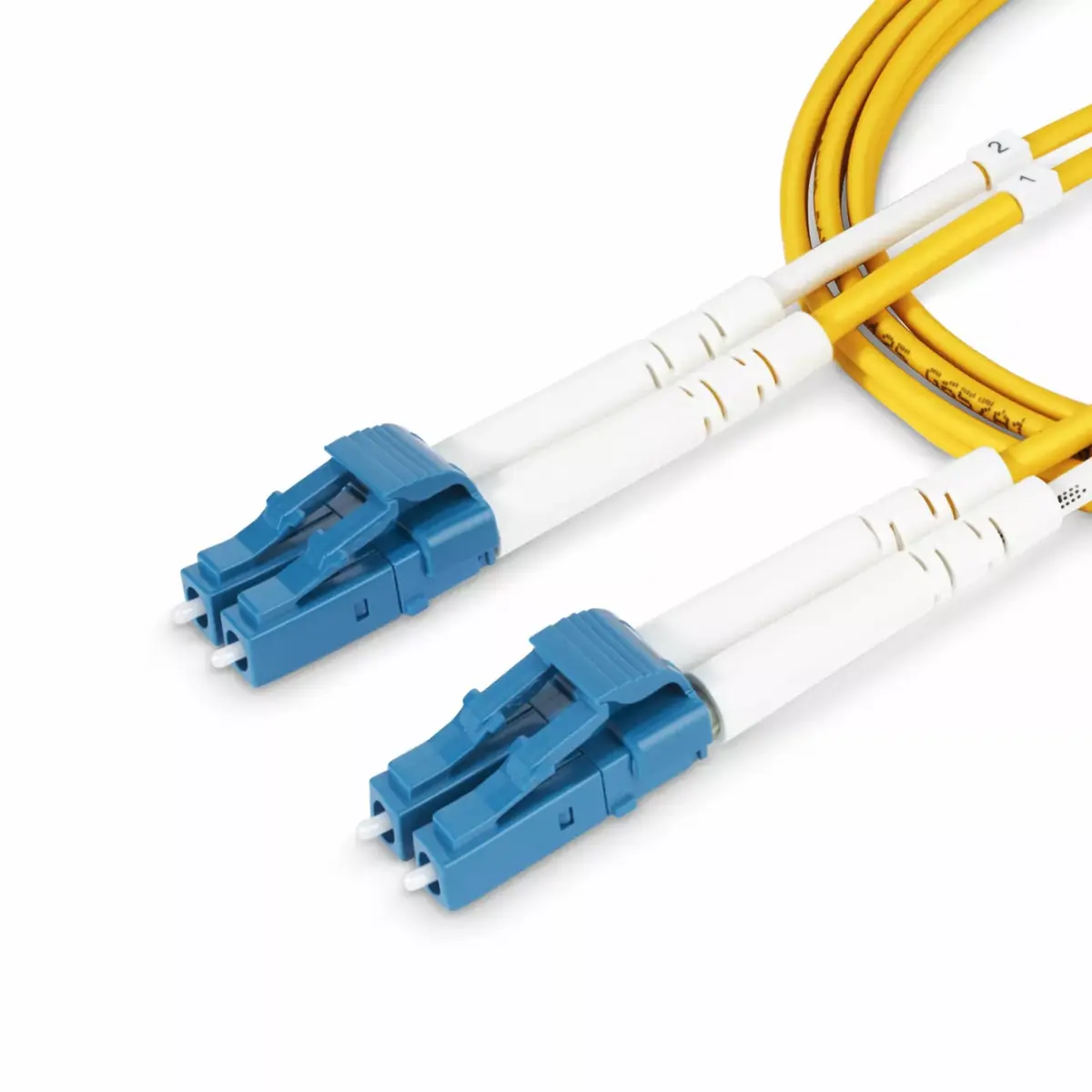

Fiber Optic Cable StarTech.com 7m LC to LC UPC Photo 5

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The StarTech.com 7m LC to LC UPC OS2 Single Mode Duplex Fiber Optic Cable features a 9/125µm core diameter, ensuring high-speed data transmission up to 100G. Its bend insensitive design minimizes signal loss, making it ideal for tight spaces. This low insertion loss cable is perfect for connecting network devices in data centers or enterprise environments, providing reliable performance and durability.

Available at price 30.49 €: 4 pcs.

Total available for order: 51 pcs.

Warranty: 2 Years

SKU: 10913237

Manufacturer: StarTech

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

01.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

01.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

06.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.01 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

06.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

Available for private customers at price 33.99 €: 17 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The StarTech.com 7m LC to LC UPC OS2 9/125µm Single Mode Duplex Fiber Optic Cable provides reliable high-speed connectivity for 100G CWDM applications over OS2 fiber networks. With a 9/125µm core and LC/UPC connectors, this 7 m yellow patch cable is designed for long-distance transmission, backward compatibility with OS1 networks, and reduced signal loss in constrained routing environments thanks to its bend-insensitive design.

Advantages

Precision ceramic ferrules and UPC-polished LC termini deliver low insertion loss (below 0.3 dB) and improved return loss compared with older polishing methods. The bend-insensitive OS2 fiber construction and a low refractive index layer reduce microbend and macrobend losses. The LSZH flame-retardant jacket emits minimal smoke and no halogens under fire conditions, making the cable suitable for installations with strict safety or ventilation requirements. Each cable is individually tested and shipped with a test report to verify insertion loss performance.

Suitable for

100G CWDM links between switches, routers, and servers
Data center backbone and horizontal fiber runs
Upgrades from OS1 to OS2 or mixed OS1/OS2 environments
Environments with limited bend radius or tight cable routing
Installations requiring LSZH safety compliance (trains, aircraft, residential, industrial)

Key specifications

Brand: StarTech.com
Model/MPN: SMDOS2LCLC7M
EAN: 0065030901741
Fiber type: OS2 single mode, 9/125 µm
Connectors: LC to LC, UPC polish
Length: 7 m
Supports wavelength range: 1260–1625 nm (CWDM)
Insertion loss: < 0.3 dB (typical, per-cable test report)
Standards: exceeds ITU‑T G.652.D / G.657.A1 and IEC 60793-2-50 type B1.3 / B6.a1
Jacket: LSZH (Low-Smoke Zero-Halogen)
Color: Yellow

How to use

Verify port compatibility and cleanliness before installation. Route the 7 m LC–LC duplex cable between LC ports on transceivers, switches, or servers, maintaining the recommended bend radius to avoid excess attenuation. Insert LC connectors until they click and secure any cable management to prevent strain. Review the included insertion loss test report to confirm that the cable meets required performance parameters for your link.

Usage recommendations

For best performance, keep bends within the manufacturer's minimum bend radius, use dust caps until final connection, and pair the cable with laser-optimized transceivers covering 1260–1625 nm. Use LSZH-compliant routing in enclosed or poorly ventilated spaces to meet safety regulations.

Specifications

Cable type:: LC/UPC
Cable length:: 7 m
Connector 1:: LC
Connector 2:: LC
Product colour:: Yellow

All features

Full duplex:: Yes
Data transfer rate:: 10 Gbit/s
Insertion loss:: 0.3 dB
Fiber mode structure:: Single-mode
Core diameter:: 9 µm
Cladding diameter:: 125 µm
Bending radius:: 10 mm
Wavelengths supported:: 1260, 1280, 1300, 1310, 1383, 1490, 1550, 1590, 1600, 1625
Attenuation (max):: 0.35 dB/km
Fibre optic type:: OS2
Return loss:: 55 dB
Connector polish type:: UPC

Features

Cable length:: 7 m
Cable type:: LC/UPC
Connector 1:: LC
Connector 2:: LC
Product colour:: Yellow
Jacket material:: Low smoke zero halogen (LSZH), Polypropylene
Connector 1 gender:: Male
Connector 2 gender:: Male

Other features

Cable diameter:: 2 mm

Technical details

Sustainability compliance:: Yes

Operational conditions

Storage temperature (T-T):: -20 - 60
Operating temperature (T-T):: -20 - 60

Packaging data

Package weight:: 55.4 g
Package depth:: 220 mm
Package height:: 6 mm
Package width:: 200 mm

Logistics data

Master (outer) case height:: 280 mm
Master (outer) case width:: 380 mm
Master (outer) case length:: 380 mm
Products per master (outer) case:: 170 pc(s)

Packaging content

Quantity per pack:: 1 pc(s)

Certificates

Compliance certificates:: CE
