Full duplex:
A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.
-
Yes
-
Storage temperature (T-T):
The minimum and maximum temperatures at which the product can be safely stored.
-
-20 - 60
-
Package weight:
Weight of the packaged product.
-
27.3 g
-
Operating temperature (T-T):
The minimum and maximum temperatures at which the product can be safely operated.
-
-20 - 60
-
Cable length:
How long the cable is.
-
1 m
-
Cable type:
Type of cable e.g. electicity cable, optical cable.
-
SC/UPC
-
Data transfer rate:
Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations.
-
100 Gbit/s
-
Product colour:
The colour e.g. red, blue, green, black, white.
-
Yellow
-
Package depth:
The distance from the front to the back of the packaging.
-
136 mm
-
Package height:
The distance from the top to the bottom of the packaging.
-
17 mm
-
Package width:
The distance from one side of the packaging to the other.
-
199 mm
-
Master (outer) case height:
-
280 mm
-
Master (outer) case width:
-
385 mm
-

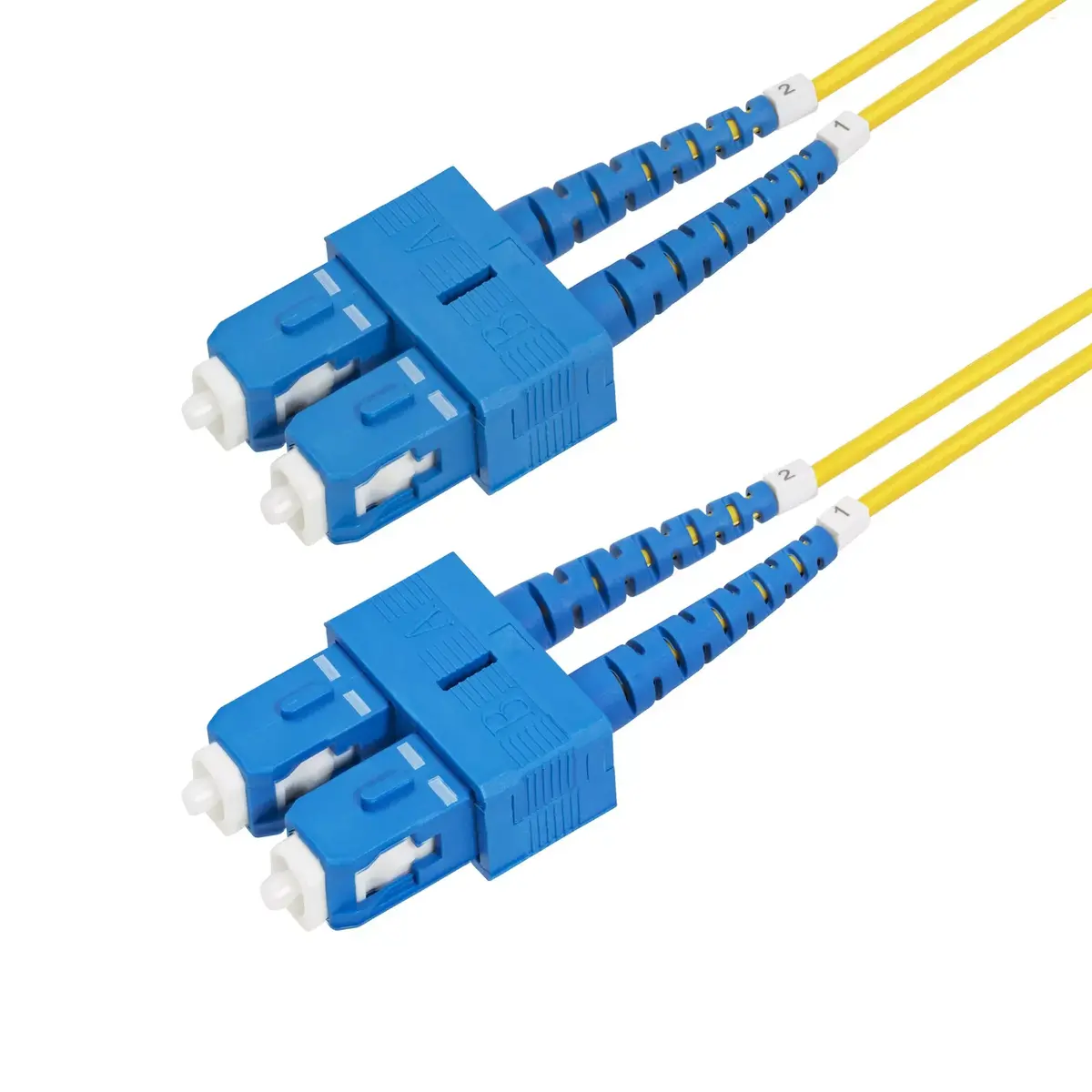

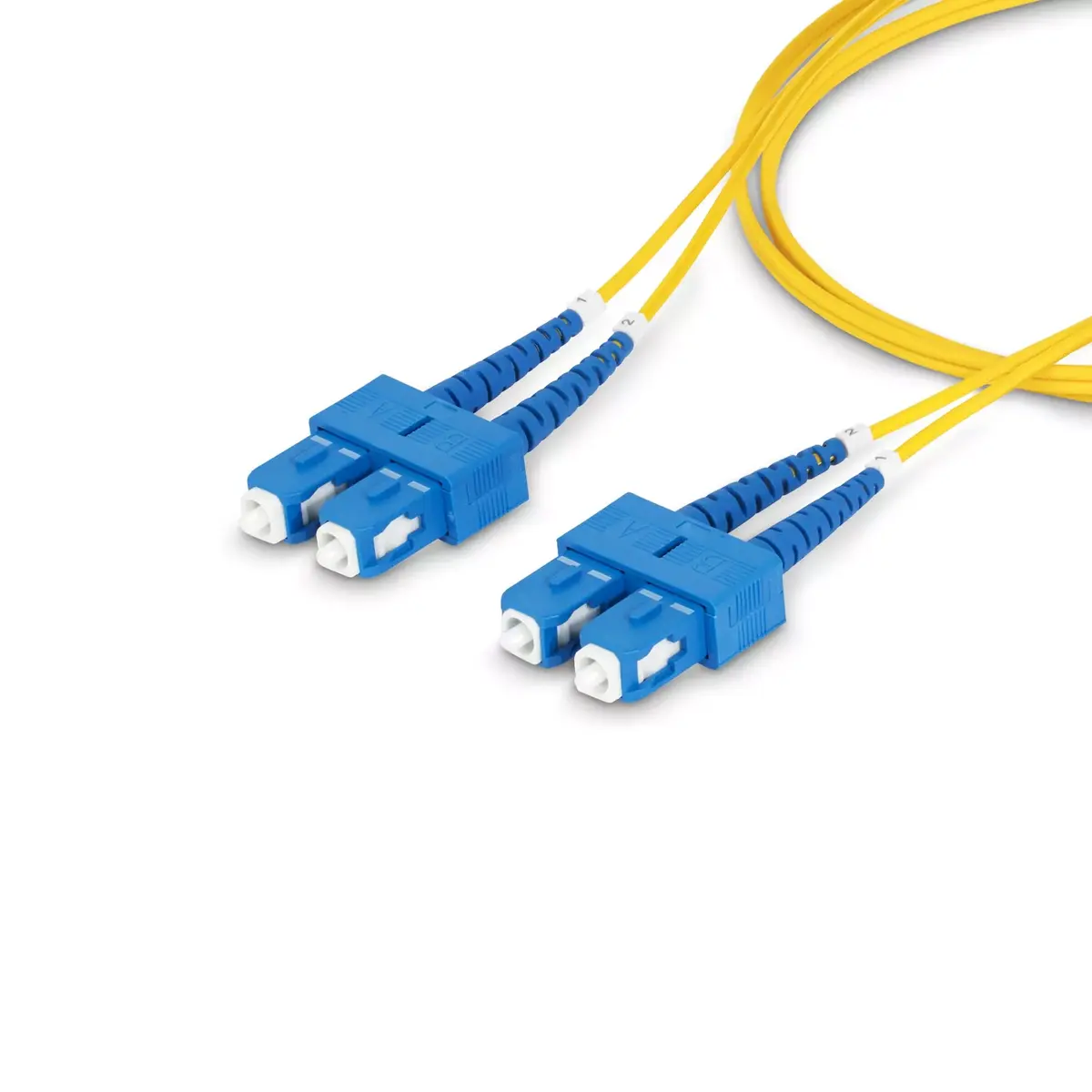

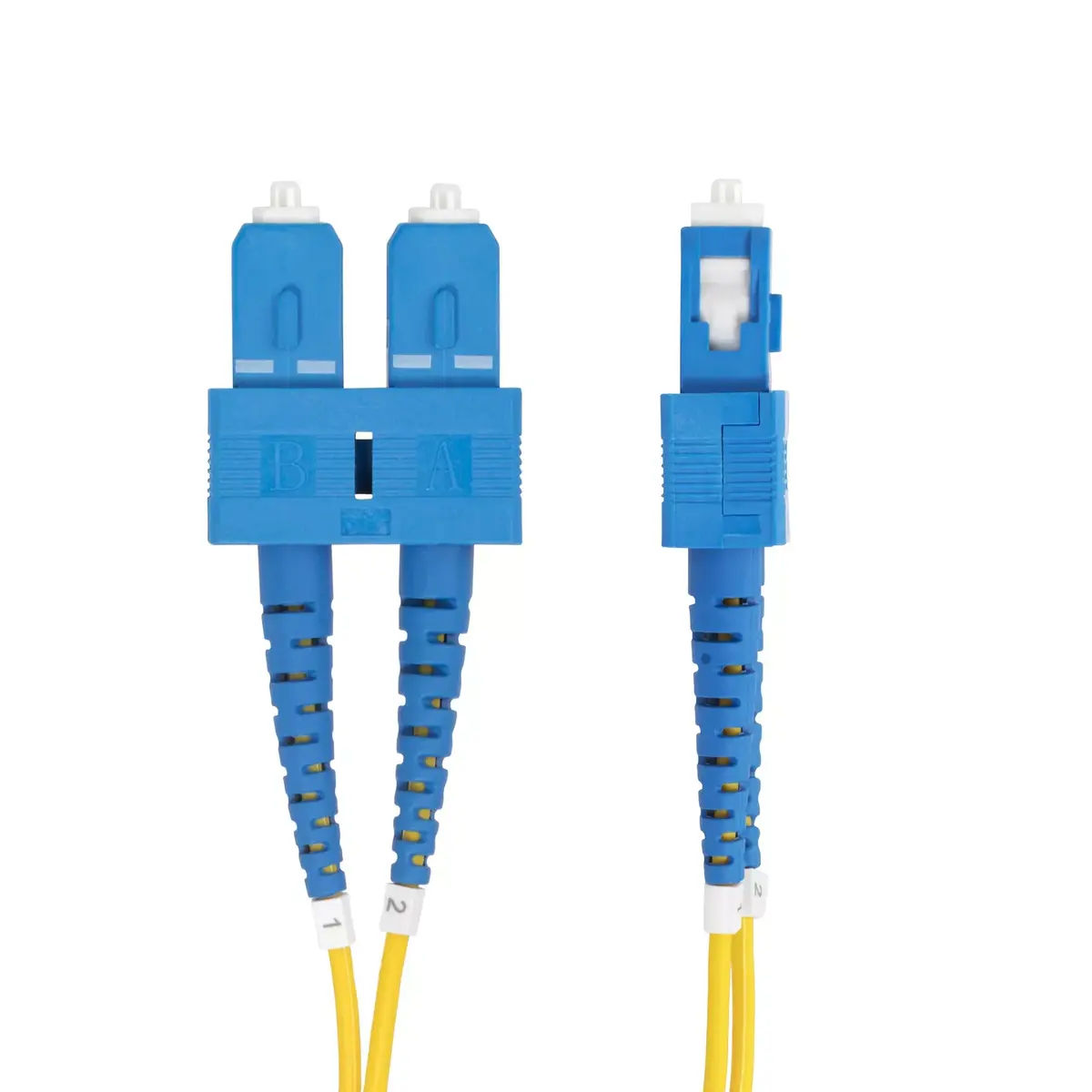

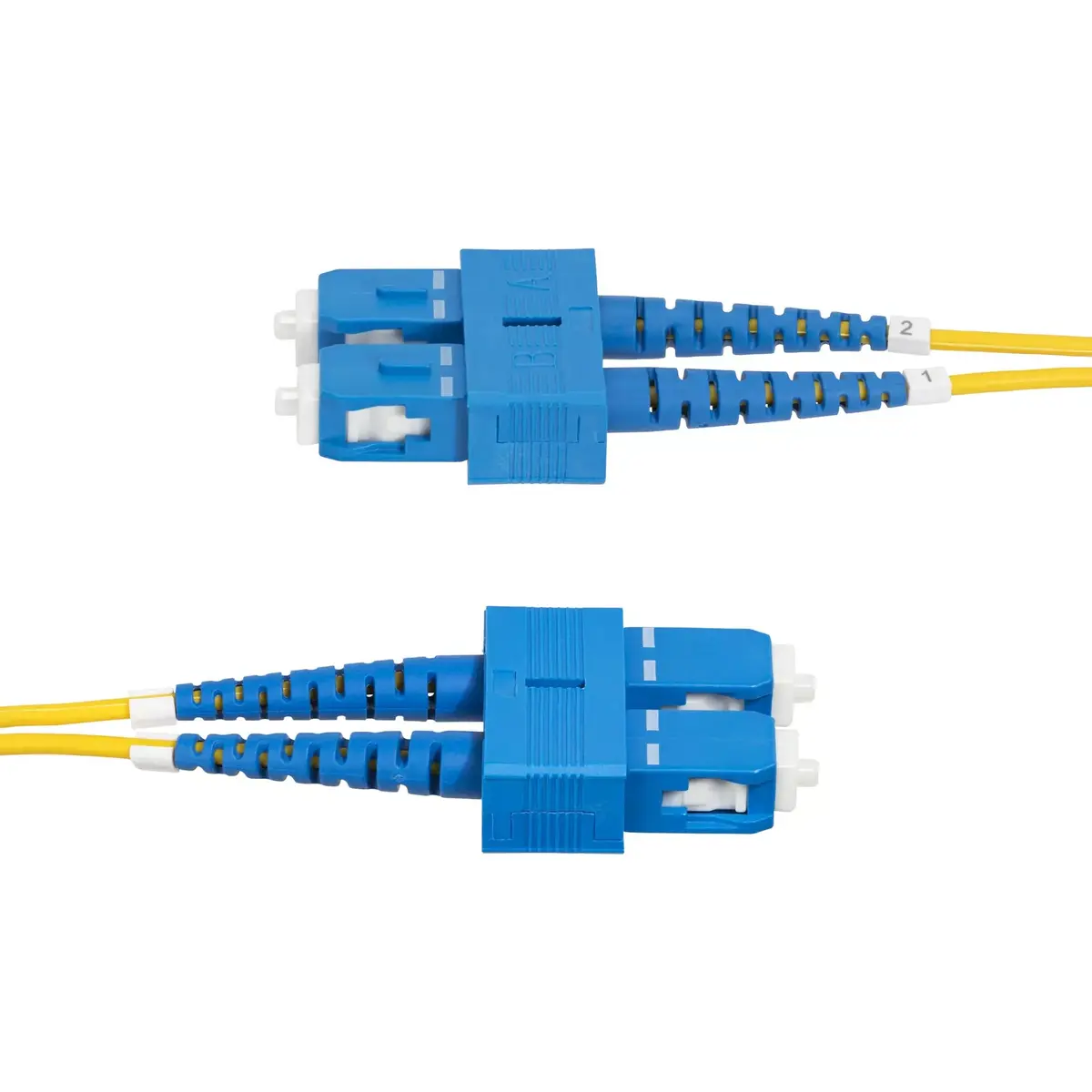

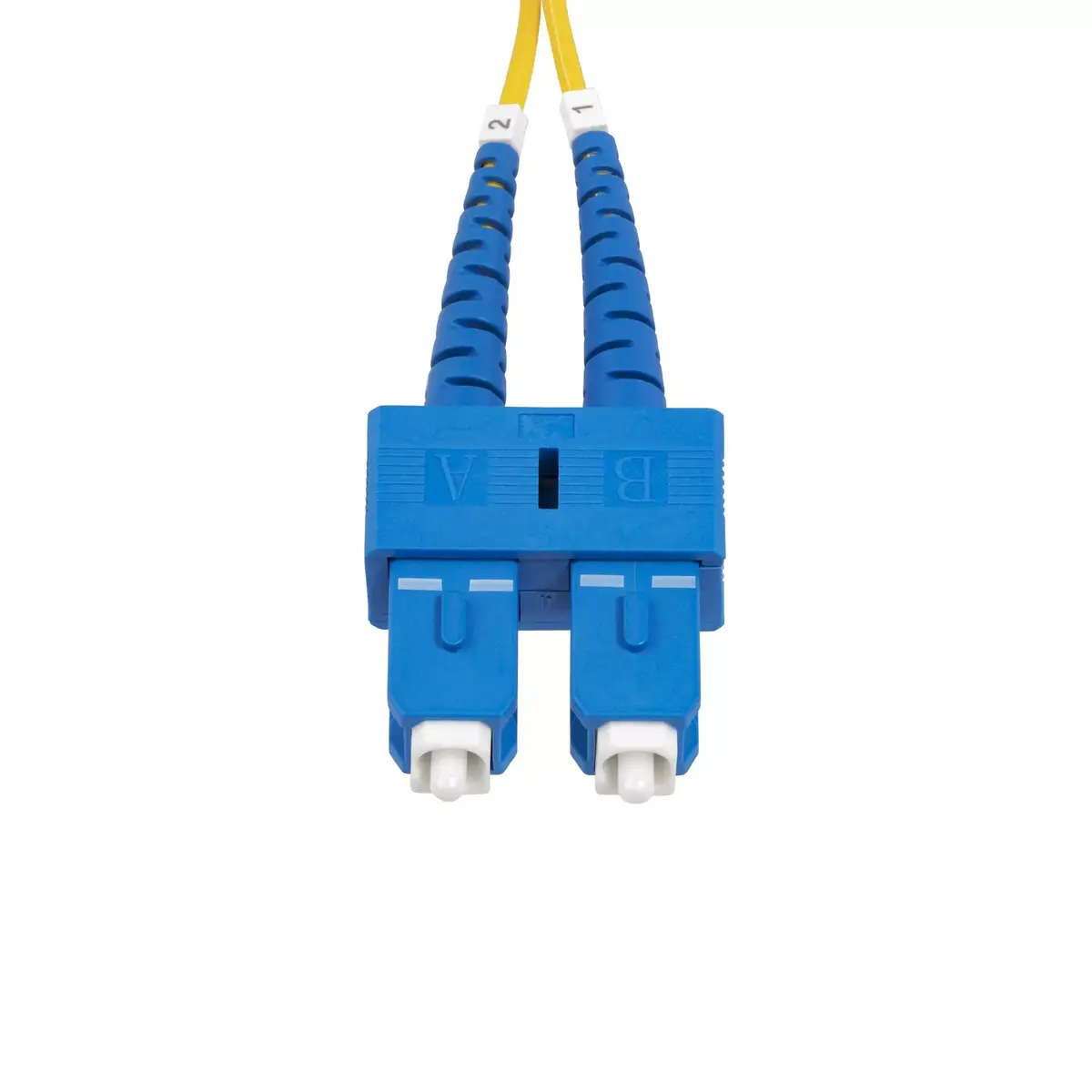

Connector 1:
This is the first connector in the device.
-
SC
-
Connector 2:
This is the second connector in the device.
-
SC
-
Cable diameter:
The distance from one side of the cable to the other, with a straight line going through the middle of the cable.
-
2 mm
-
Insertion loss:
-
0.3 dB
-
Fiber mode structure:
-
Single-mode
-
Core diameter:
The diameter of the core, which is the material at the centre e.g. the metal in an electrical wire.
-
9 µm
-
Cladding diameter:
The diameter of the cladding, which is the material around the centre (core) e.g. the plastic coating in an electrical wire.
-
125 µm
-
Jacket material:
-
Low smoke zero halogen (LSZH), Polypropylene
-
Connector 1 gender:
The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.
-
Male
-
Connector 2 gender:
The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.
-
Male
-
Bending radius:
-
10 mm
-
Quantity per pack:
-
1 pc(s)
-
Wavelengths supported:
-
1490, 1260, 1280, 1300, 1310, 1383, 1550, 1590, 1600, 1625
-
Attenuation (max):
-
0.35 dB/km
-
Master (outer) case length:
-
385 mm
-
Products per master (outer) case:
-
320 pc(s)
-
Fibre optic type:
The standardised properties of the fiber optic cable.
-
OS2
-
Return loss:
-
55 dB
-
Connector polish type:
-
UPC
