Fiber Optic Cable StarTech.com SMLCSC-OS2-7M

Name: StarTech.com 7m LC to SC SMLCSC-OS2-7M
Brand: StarTech
SKU: 10913254
Price: 25.49 EUR
Availability: InStock

Dreame – powerful cleaning with ease

Dreame vacuums for fast and efficient cleaning!

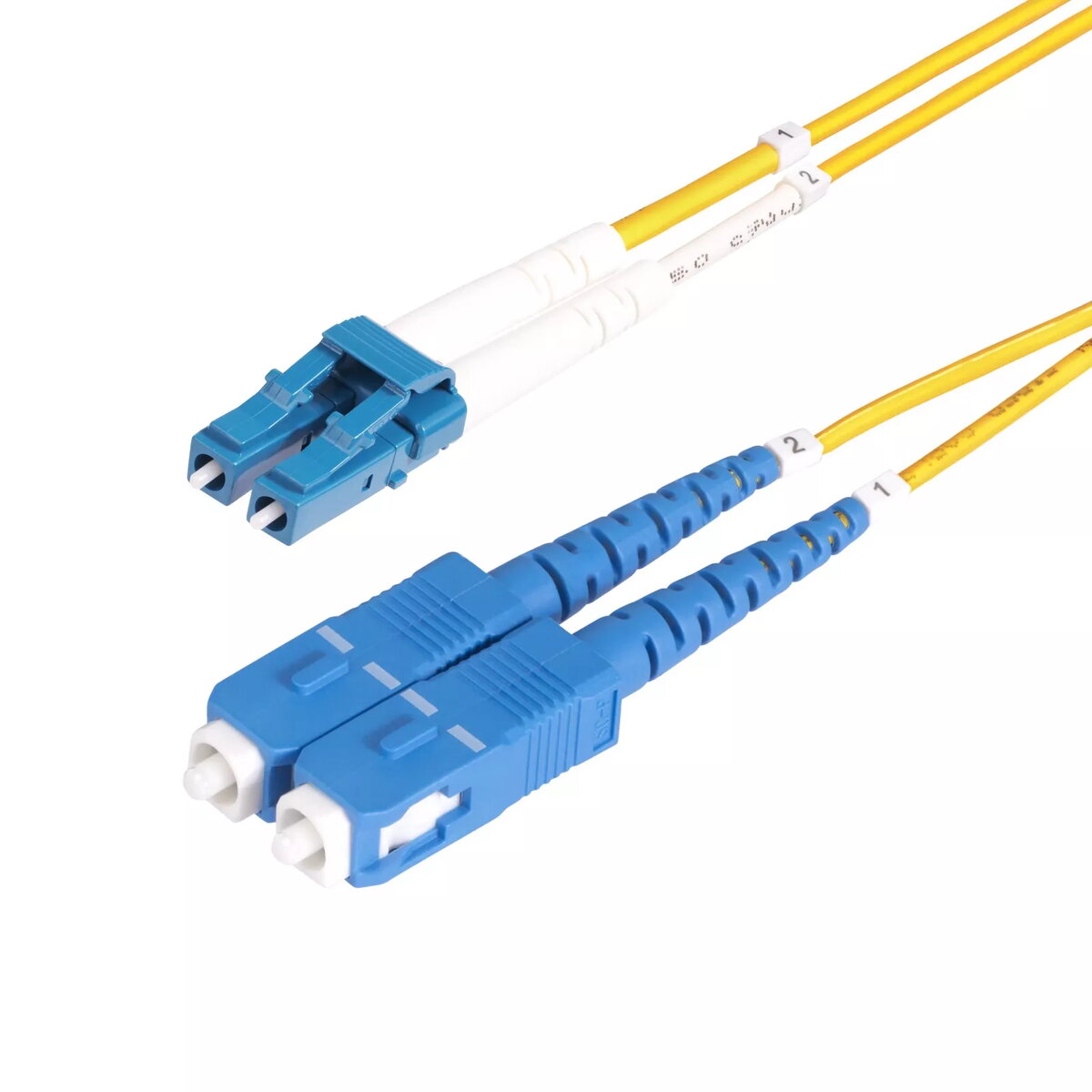

StarTech.com 7m LC to SC OS2 Single Mode Duplex Fiber Optic Cable 9/125µm 100G

Fiber Optic Cable StarTech.com SMLCSC-OS2-7M Photo 1

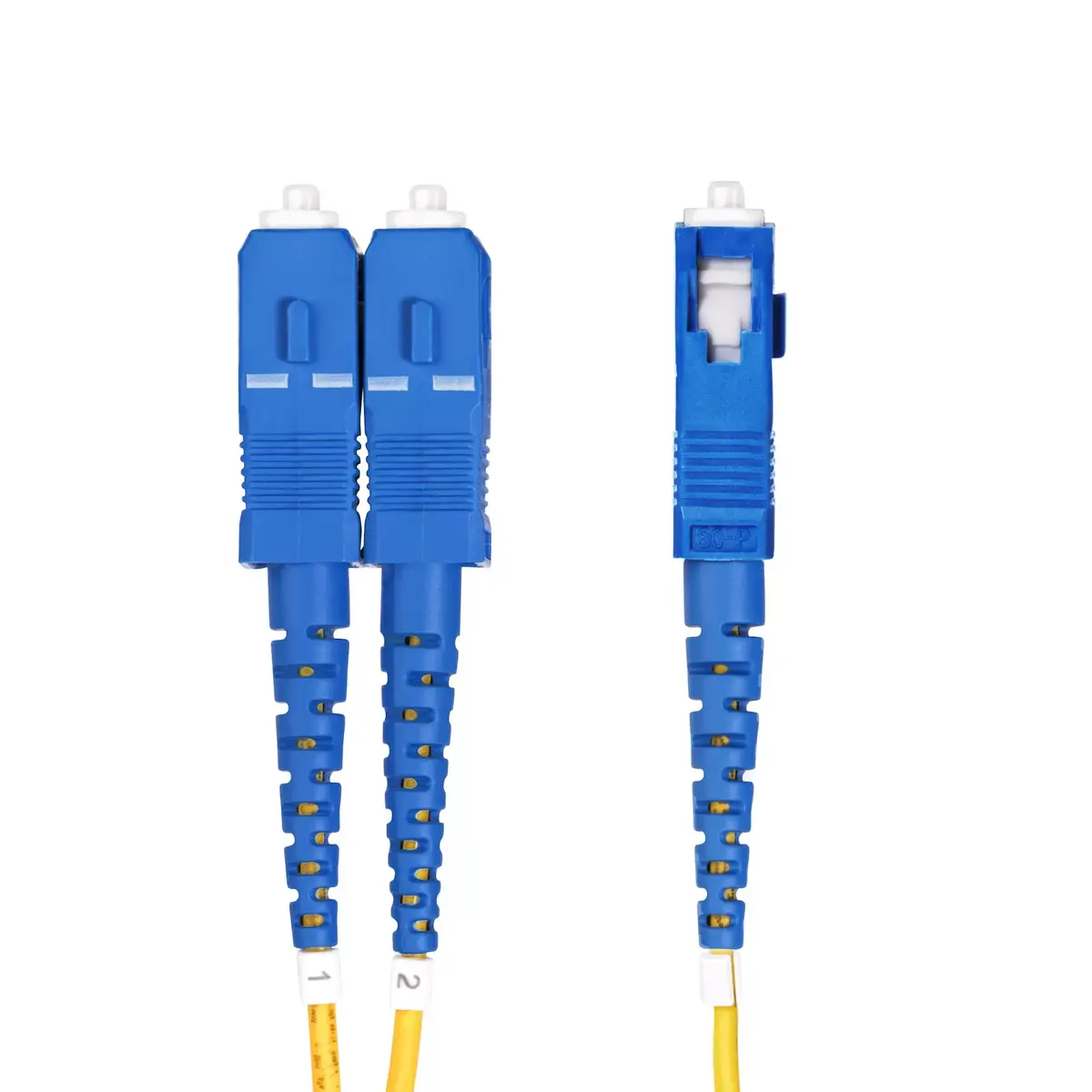

Fiber Optic Cable StarTech.com SMLCSC-OS2-7M Photo 2

Fiber Optic Cable StarTech.com SMLCSC-OS2-7M Photo 3

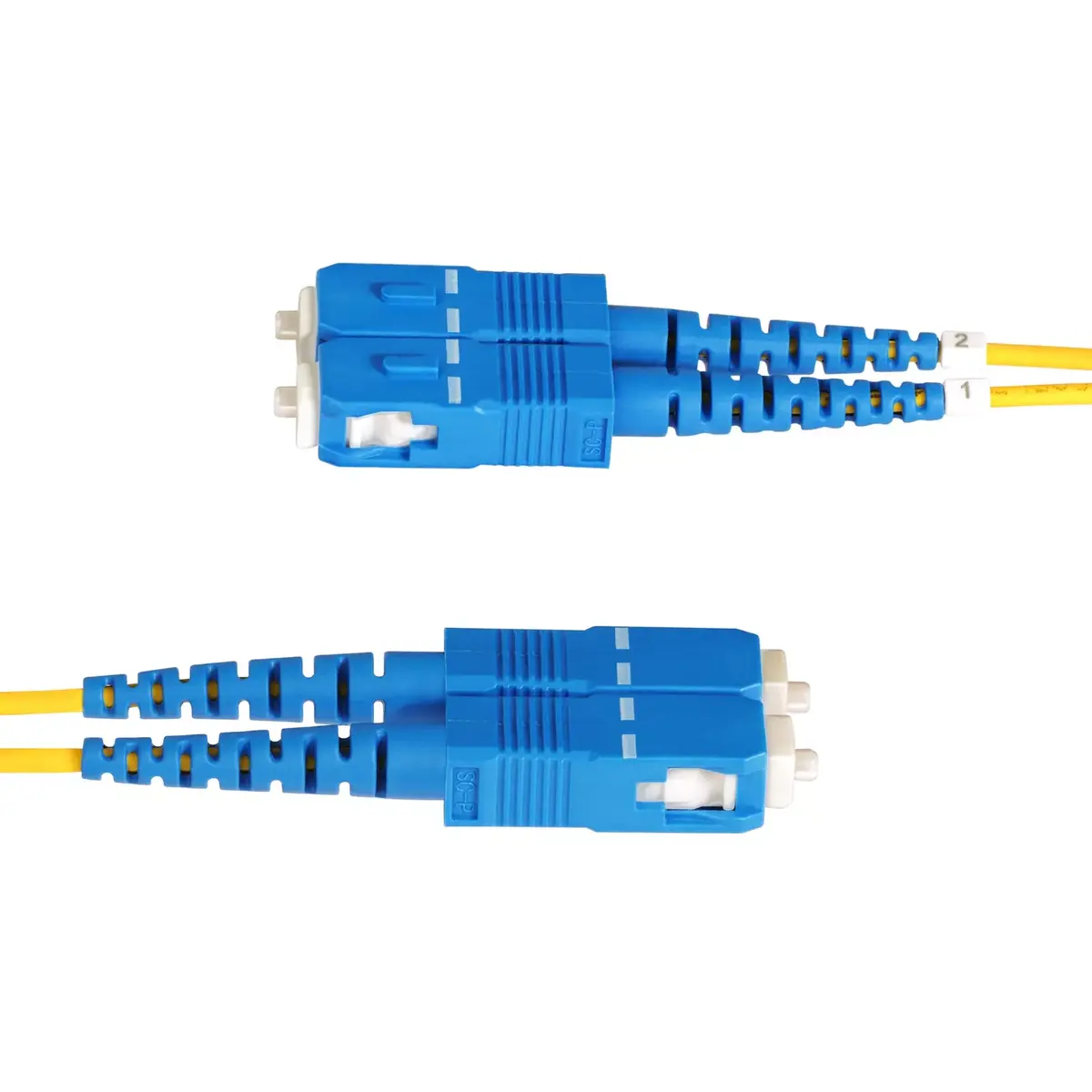

Fiber Optic Cable StarTech.com SMLCSC-OS2-7M Photo 4

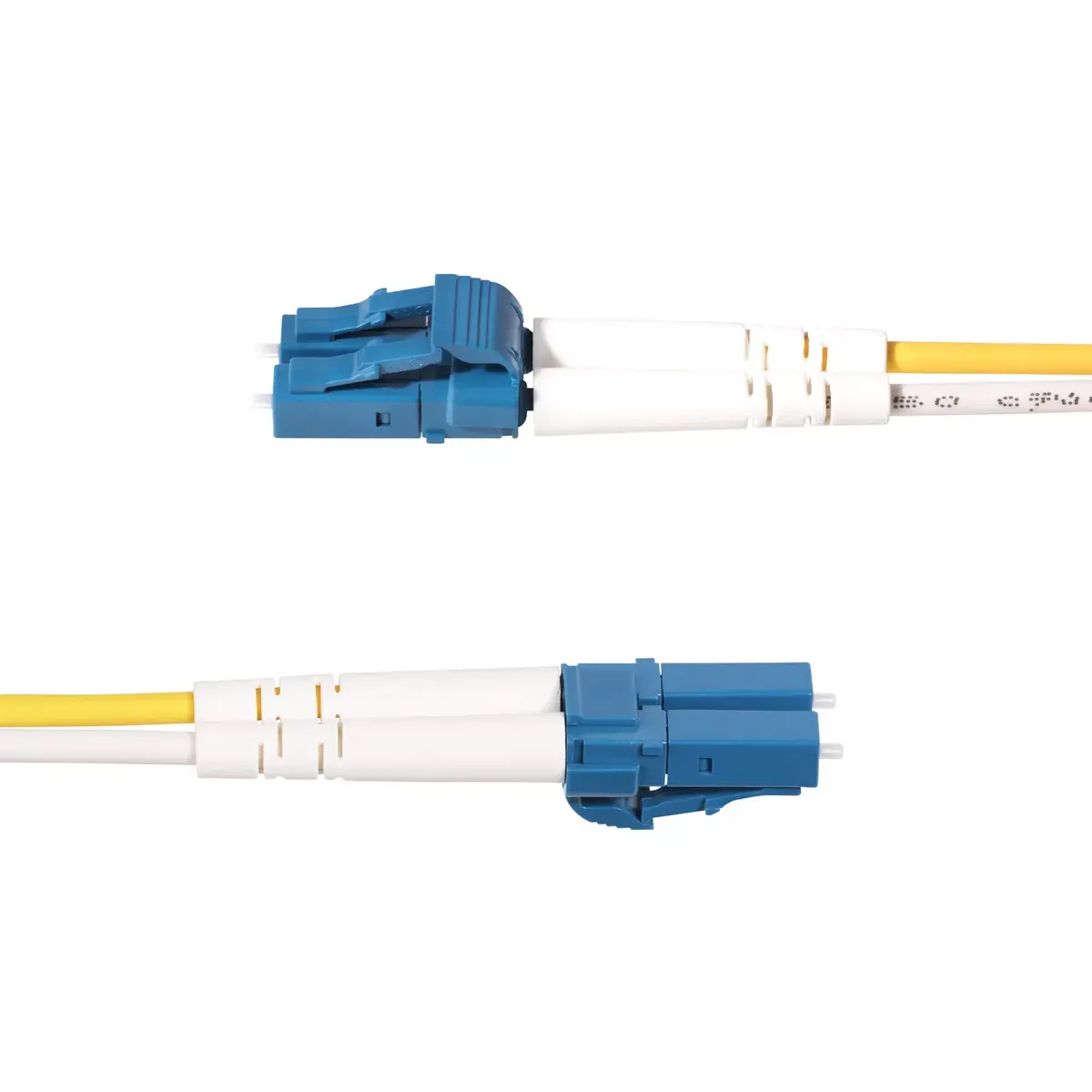

Fiber Optic Cable StarTech.com SMLCSC-OS2-7M Photo 5

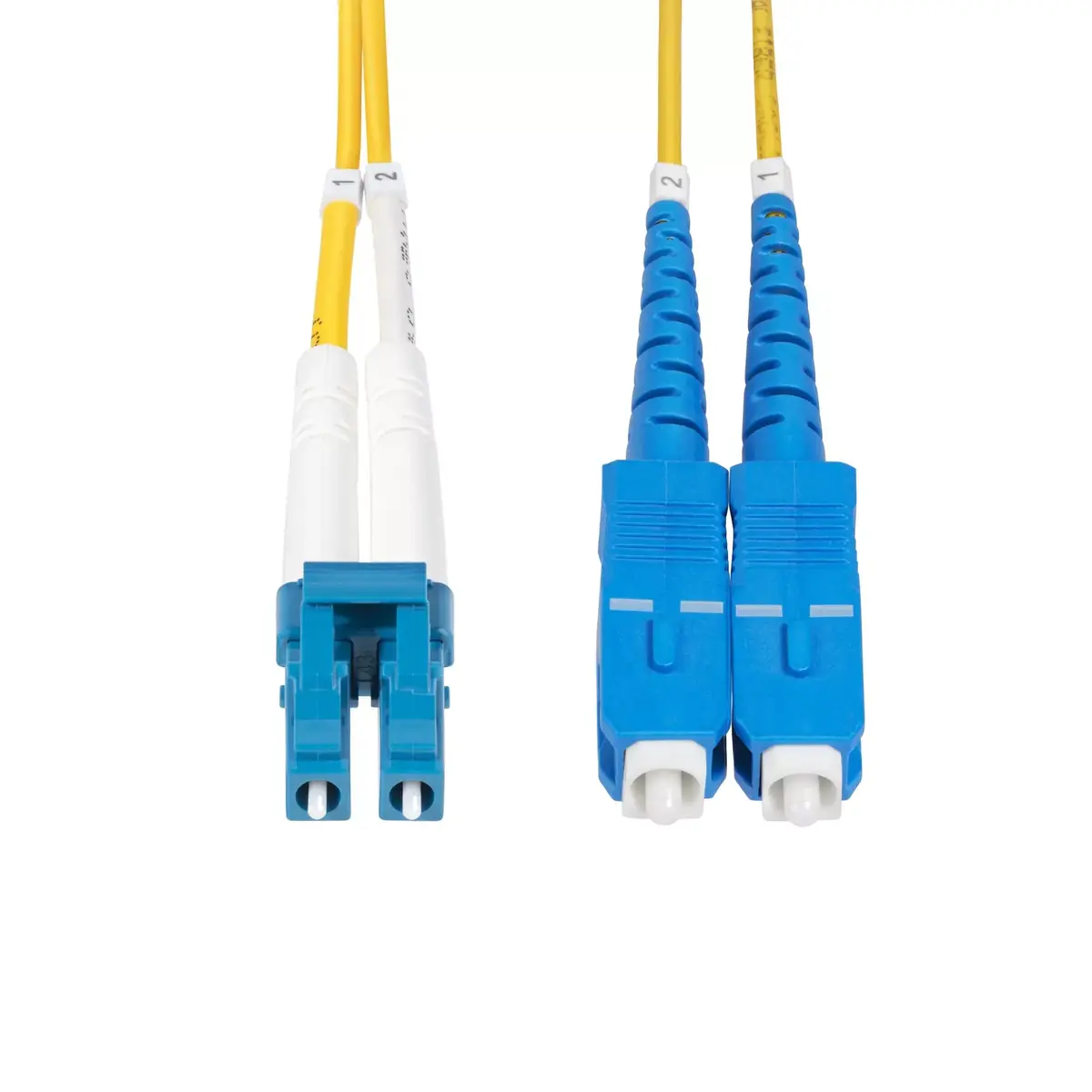

Fiber Optic Cable StarTech.com SMLCSC-OS2-7M Photo 6

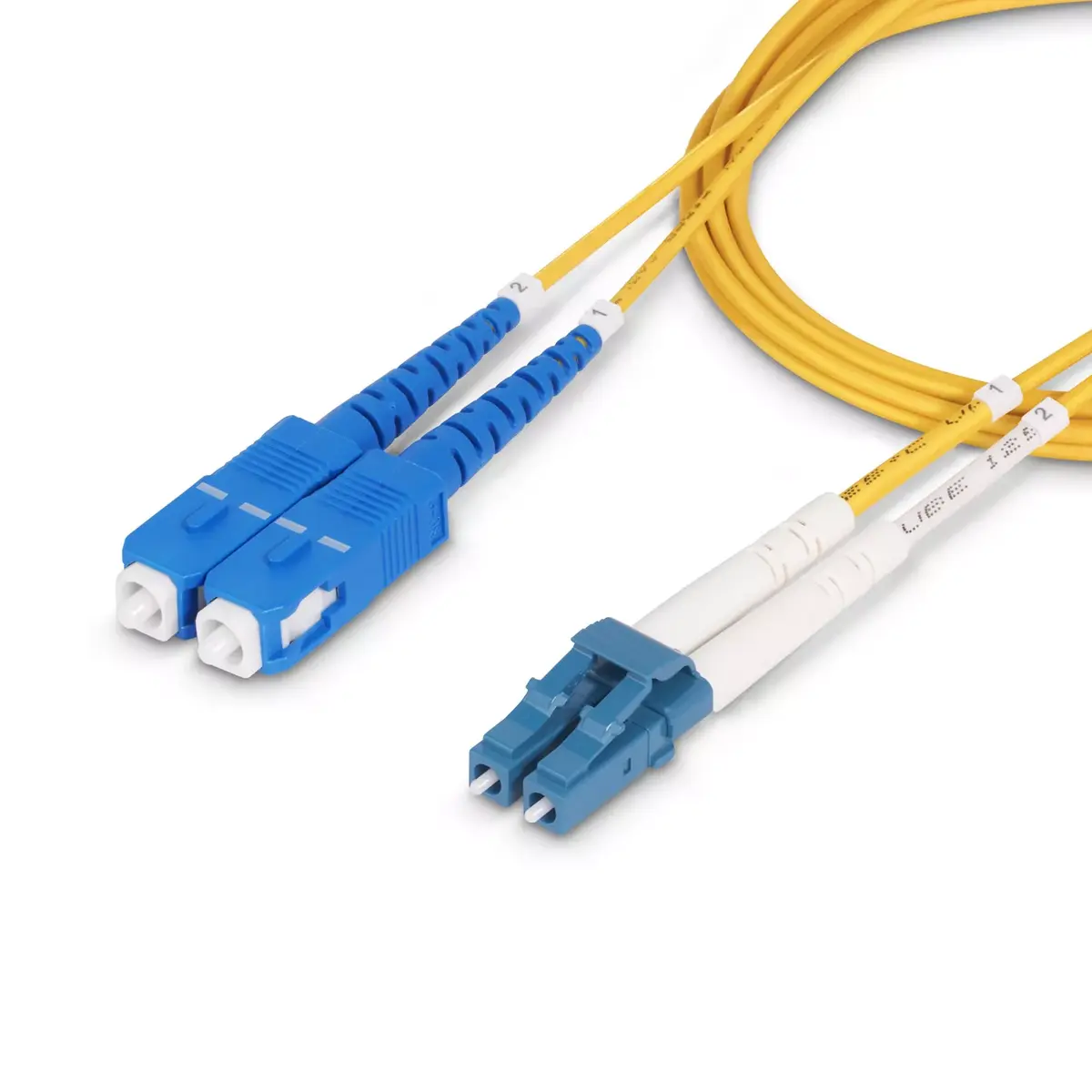

Fiber Optic Cable StarTech.com SMLCSC-OS2-7M Photo 7

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The StarTech.com 7m LC to SC OS2 Fiber Optic Cable features a 9/125µm core diameter, full duplex capability, and is designed for 100G applications. Its bend insensitive design ensures reliable performance in tight spaces, making it ideal for high-speed data transmission in networking environments.

Available at price 25.49 €: 2 pcs.

Total available for order: 16 pcs.

Warranty: 2 Years

SKU: 10913254

Manufacturer: StarTech

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

01.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

01.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

06.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.01 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

06.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

Available for private customers at price 29.49 €: 7 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

StarTech.com 7m LC to SC OS2 Single Mode Duplex Fiber Optic Cable (9/125µm) is designed for 100G network applications over OS2 fiber. The 7-meter duplex patch cable supports CWDM across an extended wavelength range (1260–1625 nm) and is compatible with laser-optimized sources. Its OS2 construction and bend-insensitive core provide low attenuation and stable signal transmission for connections between servers, switches, and data center equipment. Each cable is individually tested for insertion loss and supplied with a test report.

Advantages

The cable uses precision ceramic ferrules and UPC-polished LC and SC endfaces to ensure accurate fiber alignment and a typical insertion loss below 0.3 dB. Its bend-insensitive core and low-refractive-index trench reduce microbending losses and improve long-distance performance. The LSZH (Low-Smoke Zero-Halogen) flame-retardant jacket minimizes smoke and toxic fume emission in case of fire, making the cable suitable for installations with strict safety or ventilation requirements. The product is backward compatible with OS1 networks and meets ITU-T G.652.D / G.657.A1 and IEC 60703-2-50 type B1.3 / B6.a1 performance standards.

Suitable for

100G links between servers, switches, and storage equipment
Coarse Wavelength Division Multiplexing (CWDM) applications
Data center horizontal and equipment cabling
Environments requiring low-smoke, low-toxicity cabling

Key specifications

Connector type: LC (duplex) to SC (duplex)
Fiber type: OS2 single mode, 9/125µm
Length: 7 m
Wavelength range: 1260–1625 nm (CWDM support)
Typical insertion loss: <0.3 dB
Jacket: LSZH (Low-Smoke Zero-Halogen)
Standards: ITU-T G.652.D / G.657.A1, IEC 60703-2-50 type B1.3 / B6.a1
Manufacturer part number (MPN): SMLCSC-OS2-7M
EAN: 0065030903301

How to use

Connect the LC duplex end to LC ports on transceivers or devices and the SC duplex end to SC ports on patch panels or equipment. Ensure connectors and ports are clean before mating to maintain low insertion loss; use appropriate fiber cleaning tools if needed. Route the cable following recommended bend radii to preserve the bend-insensitive core properties and avoid tight bends or crushing. Verify link performance after installation using the provided test report or appropriate test equipment.

Usage recommendations

Store and handle the cable in a dry environment; avoid prolonged exposure to extreme temperatures and chemicals. For best performance, inspect connectors visually or with a fiber scope before installation and maintain the specified minimum bend radius during routing and installation.

Specifications

Cable length:: 7 m
Connector 1:: LC
Connector 2:: SC
Product colour:: Yellow

All features

Full duplex:: Yes
Data transfer rate:: 10 Gbit/s
Insertion loss:: 0.3 dB
Fiber mode structure:: Single-mode
Core diameter:: 9 µm
Cladding diameter:: 125 µm
Bending radius:: 10 mm
Wavelengths supported:: 1490, 1260, 1280, 1300, 1310, 1383, 1550, 1590, 1600, 1625
Attenuation (max):: 0.35 dB/km
Fibre optic type:: OS2
Return loss:: 55 dB
Connector polish type:: PC

Features

Cable length:: 7 m
Connector 1:: LC
Connector 2:: SC
Product colour:: Yellow
Jacket material:: Low smoke zero halogen (LSZH), Polypropylene
Connector 1 gender:: Male
Connector 2 gender:: Male

Other features

Cable diameter:: 2 mm

Technical details

Sustainability compliance:: Yes

Operational conditions

Storage temperature (T-T):: -20 - 60
Operating temperature (T-T):: -20 - 60

Packaging data

Package weight:: 60.2 g
Package depth:: 220 mm
Package height:: 3 mm
Package width:: 200 mm

Logistics data

Master (outer) case height:: 280 mm
Master (outer) case width:: 380 mm
Master (outer) case length:: 380 mm
Products per master (outer) case:: 400 pc(s)

Packaging content

Quantity per pack:: 1 pc(s)

Certificates

Compliance certificates:: RoHS

Hide Show all

Instructions

mmo_118343512_1705501107_1297_91256.pdf

Description

Instructions

mmo_118343512_1705501107_1297_91256.pdf

Machine translation. Load original

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

Warehouse	Stock	Delivery to the store	Store Price
WH354	7	08.07.2026	29.49 €

Available only for legal entities
Warehouse	Stock	Delivery to the store	Store Price
WH15	2	01.07.2026 Best delivery	25.49 €
WH109	7	15.07.2026	30.49 €

29.49 €

Stock: 7

Delivery Date: 08.07.2026

Warehouse: WH354

Available only for legal entities

25.49 €

Stock: 2

Delivery Date: 01.07.2026 Best delivery

Warehouse: WH15

30.49 €

Stock: 7

Delivery Date: 15.07.2026

Warehouse: WH109

Customer reviews

Show all reviews

Customer questions

FAQ

How much does the Fiber Optic Cable StarTech.com SMLCSC-OS2-7M cost, and is it available for purchase?

The price is 25.49 € (valid at the time of publication and already includes all taxes). The item is available for order — 16 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 01.07.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All StarTech products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized StarTech service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: cable length, connector 1, connector 2, product colour, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.

Where can I download the instructions for Fiber Optic Cable StarTech.com SMLCSC-OS2-7M?

You can download the instructions in PDF format from the “Instructions” section on the product description page. The file contains complete information about installation, setup, and usage.

Show all questions
