Fiber Optic Cable StarTech.com LC to LC OS2 1m Simplex 9/125µm

Fiber Optic Cable StarTech.com LC to LC Photo 1

Fiber Optic Cable StarTech.com LC to LC Photo 2

Fiber Optic Cable StarTech.com LC to LC Photo 3

Fiber Optic Cable StarTech.com LC to LC Photo 4

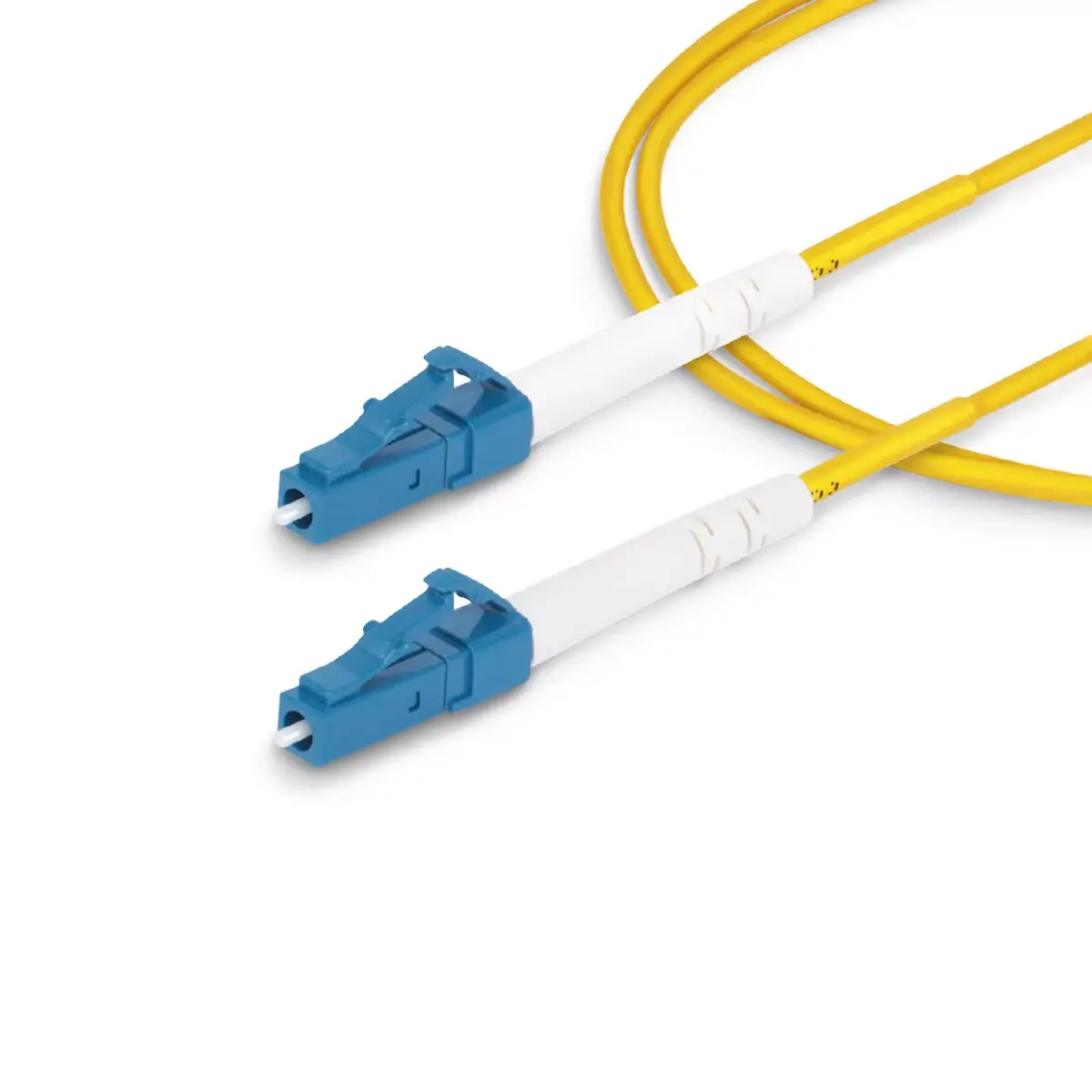

Fiber Optic Cable StarTech.com LC to LC Photo 5

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The StarTech.com 1m LC to LC OS2 Single Mode Simplex Fiber Optic Cable features a 9/125µm core diameter, supporting 40G/100G speeds. Its bend insensitive design ensures durability and low insertion loss, making it ideal for high-performance networking applications. The LSZH (Low Smoke Zero Halogen) material enhances safety in confined spaces.

Available at price 25.99 €: 4 pcs.

Total available for order: 20 pcs.

Warranty: 2 Years

SKU: 11176665

Manufacturer: StarTech

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

01.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

01.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

06.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.01 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

06.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

Available for private customers at price 29.99 €: 8 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The StarTech.com LC to LC OS2 1m Simplex 9/125µm fiber optic patch cable is a single-mode OS2 jumper designed for high-performance networking. With a 9/125µm core diameter and support for 40G/100G links, this LC/UPC to LC/UPC cable offers CWDM compatibility across 1260–1625 nm and is suitable for long-distance OS2 deployments. The cable features a bend-insensitive fiber core and an LSZH (Low-Smoke Zero-Halogen) jacket for safer installations in confined or poorly ventilated environments.

Advantages

This OS2 LC to LC simplex cable provides low insertion loss (below 0.3 dB) through precision ceramic ferrules and UPC-polished endfaces, delivering improved return loss compared with older PC polishing. The bend-insensitive design and compliance with ITU-T G.652.D / G.657.A1 and IEC60703-2-50 type B1.3 / B6.a1 standards ensure consistent low attenuation and reliable performance. Each cable is individually tested for insertion loss and supplied with a test report. The LSZH jacket reduces smoke and toxic gas emissions in case of fire.

Suitable for

Connecting LC simplex patch panels and fiber NICs in single-mode OS2 networks
Linking SFP/SFP+ and other single-fiber transceivers supporting CWDM
40G/100G backbone and long-reach single-mode links

Key specifications

Connector type: LC to LC (LC/UPC)
Fiber type: OS2 single-mode, 9/125 µm
Length: 1 m
CWDM wavelength range: 1260–1625 nm
Typical insertion loss: < 0.3 dB
Jacket: LSZH (Low-Smoke Zero-Halogen)
Color: Yellow
Standards: ITU-T G.652.D, G.657.A1; IEC60703-2-50 type B1.3 / B6.a1
MPN: SPSMLCLC-OS2-1M
EAN: 0065030906647

How to use

Inspect connectors and fiber ports for dust or contamination before mating. Align and insert the LC connector into the LC adapter or transceiver until it latches; do not force the connector. Route the fiber with gentle bends, avoiding tight radii and repeated sharp bends to maintain the bend-insensitive fiber's performance. If disconnecting, depress the LC latch and remove the connector straight out. Store unused ends with protective caps to prevent contamination.

Usage recommendations

For optimal long-term performance, perform cleaning of LC/UPC endfaces with approved fiber cleaning tools before installation, avoid bending below the manufacturer’s minimum bend radius, and retain the supplied test report for traceability in structured cabling documentation.

Specifications

Cable type:: LC/UPC
Cable length:: 1 m
Connector 1:: LC
Connector 2:: LC
Product colour:: Yellow

All features

Data transfer rate:: 100 Gbit/s
Insertion loss:: 0.3 dB
Fiber mode structure:: Single-mode
Core diameter:: 9 µm
Cladding diameter:: 125 µm
Bending radius:: 10 mm
Wavelengths supported:: 1590, 1260, 1280, 1300, 1310, 1383, 1490, 1550, 1600, 1625
Attenuation (max):: 0.35 dB/km
Fibre optic type:: OS2
Return loss:: 55 dB
Connector polish type:: UPC

Features

Cable length:: 1 m
Cable type:: LC/UPC
Connector 1:: LC
Connector 2:: LC
Product colour:: Yellow
Jacket material:: Low smoke zero halogen (LSZH), Polypropylene
Connector 1 gender:: Male
Connector 2 gender:: Male

Other features

Cable diameter:: 2 mm

Operational conditions

Storage temperature (T-T):: -20 - 60
Operating temperature (T-T):: -20 - 60

Packaging data

Package weight:: 12.4 g
Package depth:: 200 mm
Package height:: 1 mm
Package width:: 220 mm

Logistics data

Master (outer) case height:: 280 mm
Master (outer) case width:: 380 mm
Master (outer) case length:: 380 mm
Products per master (outer) case:: 650 pc(s)

Packaging content

Quantity per pack:: 1 pc(s)
