Fiber Optic Cable StarTech.com 30m

Name: Fiber Optic Cable StarTech.com 30m SPSMLCLC-OS2-30M
Brand: StarTech
SKU: 11176663
Price: 51.49 EUR
Availability: InStock

Dreame – powerful cleaning with ease

Dreame vacuums for fast and efficient cleaning!

Fiber Optic Cable StarTech.com 30m LC to LC UPC OS2 Single Mode 9/125µm

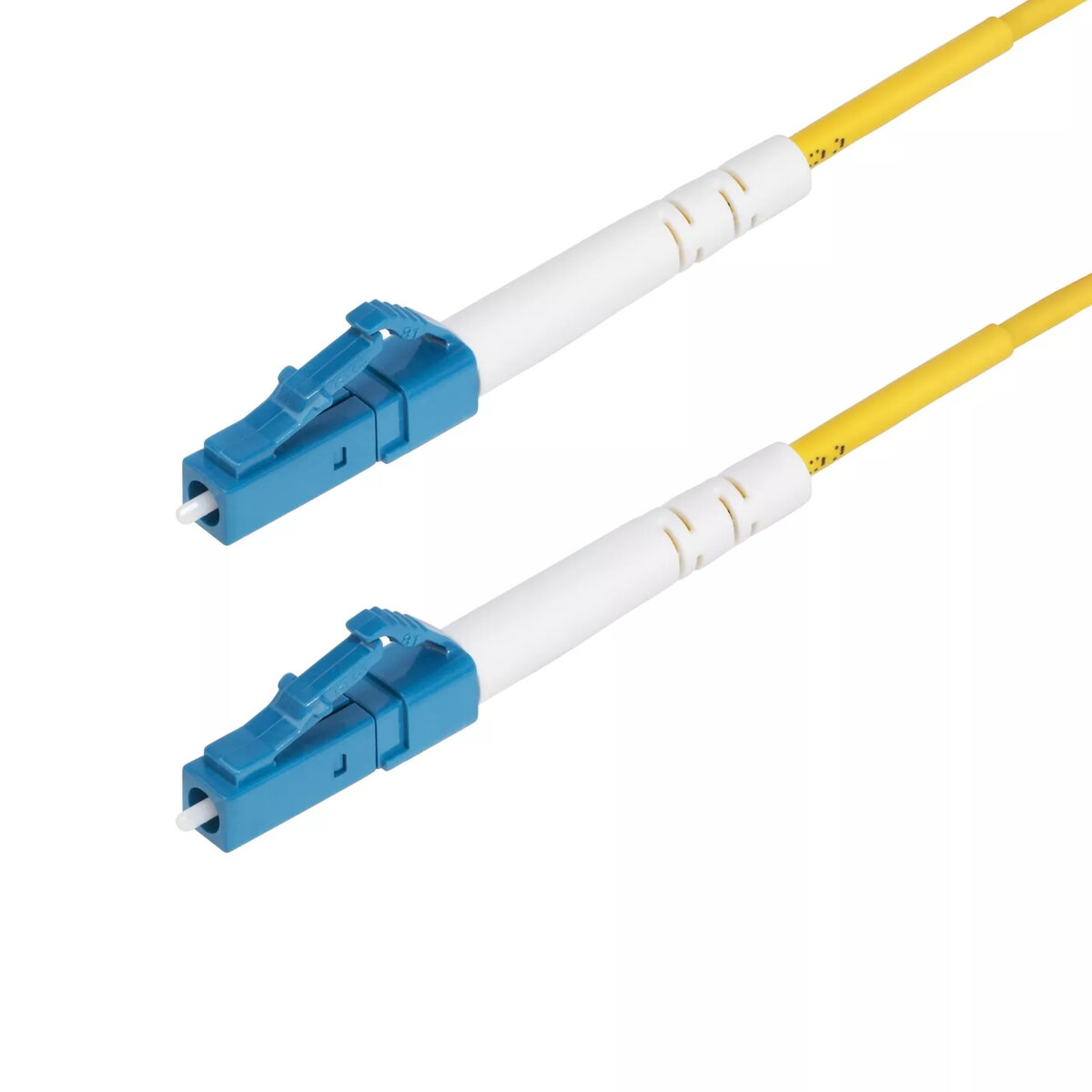

Fiber Optic Cable StarTech.com 30m Photo 1

Fiber Optic Cable StarTech.com 30m Photo 2

Fiber Optic Cable StarTech.com 30m Photo 3

Fiber Optic Cable StarTech.com 30m Photo 4

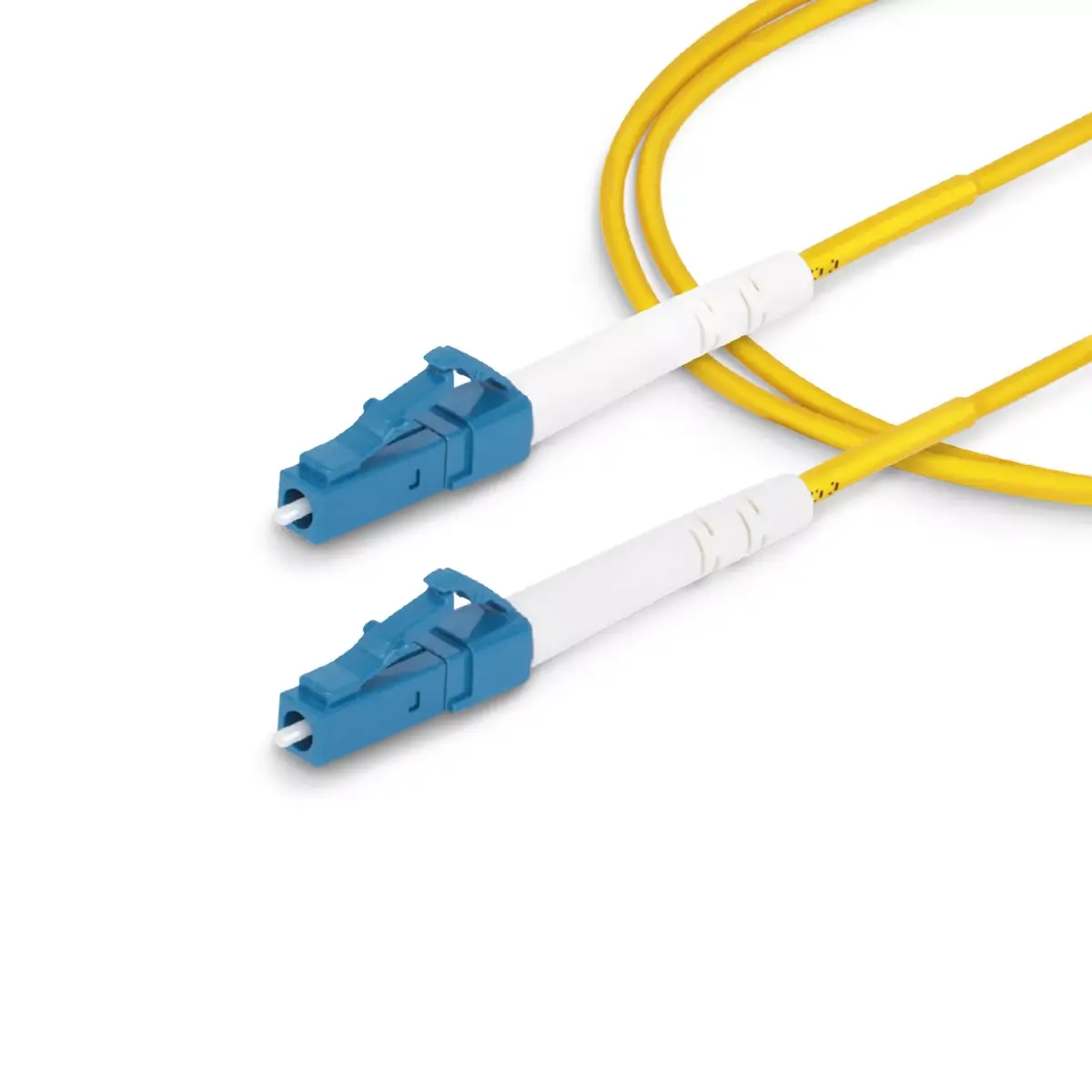

Fiber Optic Cable StarTech.com 30m Photo 5

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The StarTech.com 30m LC to LC UPC OS2 Single Mode Simplex Fiber Optic Cable features a 9/125µm core diameter, designed for high-speed data transmission at 40G/100G. Its bend insensitive design minimizes signal loss, ensuring reliable connectivity. The LSZH jacket provides safety in environments where low smoke and halogen-free materials are required, making it ideal for various installations.

Available at price 51.49 €: 4 pcs.

Total available for order: 20 pcs.

Warranty: 2 Years

SKU: 11176663

Manufacturer: StarTech

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

01.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

01.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

06.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.15 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

06.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

Available for private customers at price 71.99 €: 8 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

StarTech.com 30m LC to LC UPC OS2 Single Mode 9/125µm fiber patch cable provides reliable connectivity for high-speed CWDM applications over OS2 fiber networks. This 30 m LC to LC UPC OS2 single mode simplex cable supports 40G/100G links and an extended CWDM wavelength range (1260–1625 nm), offering improved channel isolation and consistent signal strength over long distances. The 9/125µm bend-insensitive core and LSZH jacket make it suitable for installations that require low smoke and halogen-free materials.

Advantages

The cable features precision ceramic ferrules and UPC-polished LC connectors to ensure low insertion loss (below 0.3 dB) and improved return loss compared with older PC polish types. Its bend-insensitive fiber structure and low-attenuation design meet or exceed ITU-T G.652.D / G.657.A1 and IEC standards, while the LSZH jacket reduces smoke and toxic fumes in the event of fire. Each unit is individually tested for insertion loss and shipped with a test report to confirm performance.

Suitable for

CWDM networks and long-reach single-mode links
40G and 100G data center interconnects
Connections between SFP/SFP+ transceivers, simplex patch panels, and fiber NICs
Installations requiring LSZH cabling (trains, aircraft, enclosed spaces, residential/commercial buildings)

Key specifications

Cable type: LC/UPC
Fiber type: OS2 single mode, 9/125µm
Length: 30 m
Connector A: LC (UPC)
Connector B: LC (UPC)
Wavelength range (CWDM): 1260–1625 nm
Maximum insertion loss: <0.3 dB (typical per connector)
Jacket: LSZH (Low-Smoke Zero-Halogen)
Color: Yellow

How to use

Route the fiber patch cable between LC ports on compatible single-mode devices such as SFP transceivers, fiber NICs, or simplex patch panels. Avoid extreme bending and secure the cable with appropriate cable management to maintain the bend radius. Align LC connectors by gently inserting until the latch clicks; for disconnection, press the LC latch and withdraw the connector straight out. Keep connector end faces clean and capped when not in use to preserve UPC polish performance and minimize insertion loss.

Usage recommendations

For optimal long-term performance, inspect and clean LC connector end faces before installation, maintain minimum bend radius recommended by the manufacturer, and store the cable in a dry, dust-free environment. Use the included test report to verify insertion loss against your network requirements.

Specifications

Cable type:: LC/UPC
Cable length:: 30 m
Connector 1:: LC
Connector 2:: LC
Product colour:: Yellow

All features

Data transfer rate:: 100 Gbit/s
Insertion loss:: 0.3 dB
Fiber mode structure:: Single-mode
Core diameter:: 9 µm
Cladding diameter:: 125 µm
Bending radius:: 10 mm
Wavelengths supported:: 1590, 1260, 1280, 1300, 1310, 1383, 1490, 1550, 1600, 1625
Attenuation (max):: 0.35 dB/km
Fibre optic type:: OS2
Return loss:: 55 dB
Connector polish type:: UPC

Features

Cable length:: 30 m
Cable type:: LC/UPC
Connector 1:: LC
Connector 2:: LC
Product colour:: Yellow
Jacket material:: Low smoke zero halogen (LSZH), Polypropylene
Connector 1 gender:: Male
Connector 2 gender:: Male

Other features

Cable diameter:: 2 mm

Operational conditions

Storage temperature (T-T):: -20 - 60
Operating temperature (T-T):: -20 - 60

Packaging data

Package weight:: 145.2 g
Package depth:: 200 mm
Package height:: 8 mm
Package width:: 220 mm

Logistics data

Master (outer) case height:: 280 mm
Master (outer) case width:: 380 mm
Master (outer) case length:: 380 mm
Products per master (outer) case:: 60 pc(s)

Packaging content

Quantity per pack:: 1 pc(s)

Hide Show all

Instructions

mmo_118647777_1707995080_1298_113.pdf

Description

Instructions

mmo_118647777_1707995080_1298_113.pdf

Machine translation. Load original

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

Warehouse	Stock	Delivery to the store	Store Price
WH354	8	08.07.2026	71.99 €

Available only for legal entities
Warehouse	Stock	Delivery to the store	Store Price
EU9	4	01.07.2026 Best delivery	51.49 € Best price
WH109	8	15.07.2026	56.49 €

71.99 €

Stock: 8

Delivery Date: 08.07.2026

Warehouse: WH354

Available only for legal entities

51.49 €

Stock: 4

Delivery Date: 01.07.2026 Best delivery

Warehouse: EU9

56.49 €

Stock: 8

Delivery Date: 15.07.2026

Warehouse: WH109

Customer reviews

Show all reviews

Customer questions

FAQ

How much does the Fiber Optic Cable StarTech.com 30m cost, and is it available for purchase?

The price is 51.49 € (valid at the time of publication and already includes all taxes). The item is available for order — 20 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 01.07.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All StarTech products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized StarTech service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: cable type, cable length, connector 1, connector 2, product colour, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.

Where can I download the instructions for Fiber Optic Cable StarTech.com 30m?

You can download the instructions in PDF format from the “Instructions” section on the product description page. The file contains complete information about installation, setup, and usage.
