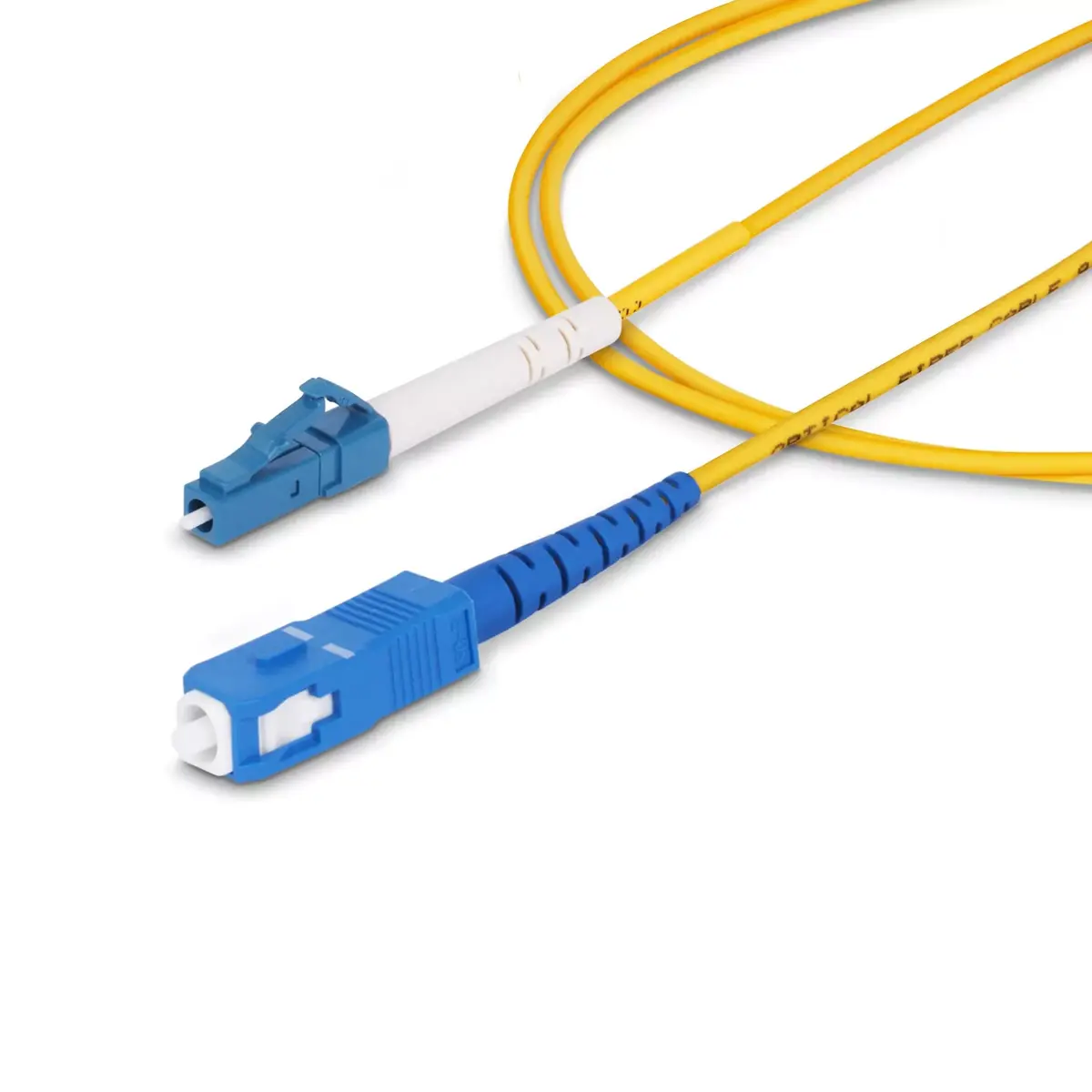

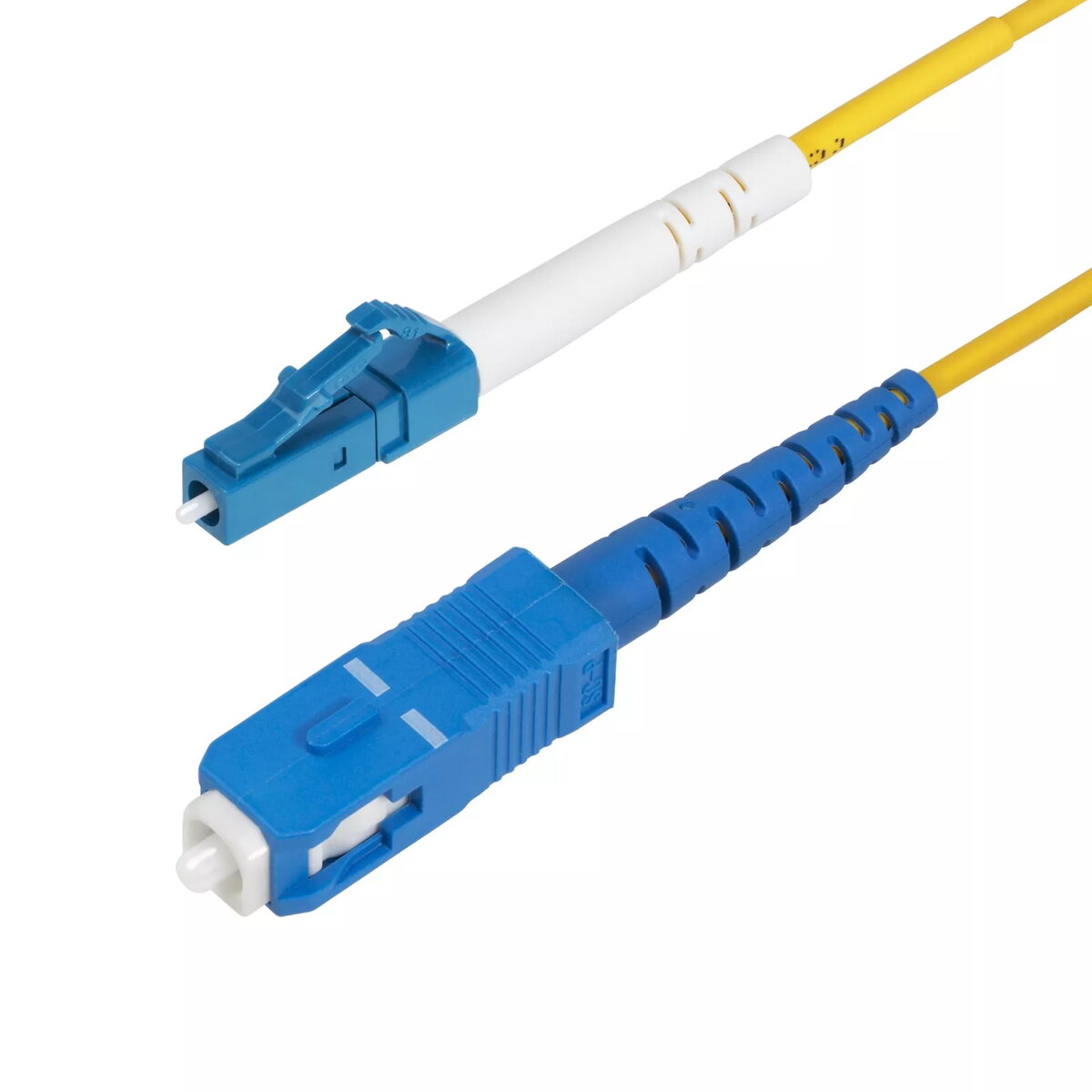

Fiber Optic Cable StarTech.com SPSMLCSC-OS2-1M LC to SC OS2 1m

Fiber Optic Cable StarTech.com SPSMLCSC-OS2-1M Photo 1

Fiber Optic Cable StarTech.com SPSMLCSC-OS2-1M Photo 2

Fiber Optic Cable StarTech.com SPSMLCSC-OS2-1M Photo 3

Fiber Optic Cable StarTech.com SPSMLCSC-OS2-1M Photo 4

Fiber Optic Cable StarTech.com SPSMLCSC-OS2-1M Photo 5

Fiber Optic Cable StarTech.com SPSMLCSC-OS2-1M Photo 6

Fiber Optic Cable StarTech.com SPSMLCSC-OS2-1M Photo 7

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The StarTech.com 1m LC to SC OS2 Single Mode Simplex Fiber Optic Cable features a 9/125µm core diameter, supporting 40G/100G speeds. It is bend insensitive with low insertion loss, ensuring reliable performance in tight spaces. Ideal for high-speed data transmission, this LSZH fiber jumper cord is perfect for connecting network devices.

Available at price 16.49 €: 6 pcs.

Total available for order: 22 pcs.

Warranty: 2 Years

SKU: 11176662

Manufacturer: StarTech

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

01.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

01.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

06.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.01 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

06.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

Available for private customers at price 19.99 €: 10 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The StarTech.com LC to SC OS2 1m single mode simplex fiber optic cable (9/125µm) provides a 1 metre link for high-speed 40G/100G networks. Designed for CWDM applications over OS2 fiber, the cable supports wavelengths across 1260–1625 nm and is backward compatible with OS1 networks. The yellow LSZH-jacketed jumper is suitable for connecting simplex patch panels, SFP transceivers, and fiber NICs, and each unit ships with an insertion loss test report.

Advantages

Precision ceramic ferrules and UPC-polished LC and SC endfaces deliver low insertion loss (below 0.3 dB) and improved return loss compared with older polishing types. The bend-insensitive fiber construction and low-refractive-index layer reduce light leakage and maintain signal integrity in constrained routing paths. The cable meets or exceeds ITU-T G.652.D/G.657.A1 and IEC 60703-2-50 type B1.3/B6.a1 standards for low attenuation and consistent performance.

Suitable for

Connecting LC-to-SC ports on simplex patch panels
Linking SFP/SFP+ transceivers to SC equipment
Fiber NIC connections in servers and network appliances
CWDM wavelength multiplexing applications over OS2 single-mode infrastructure

Key specifications

Length: 1 m
Fiber type: OS2 single mode, 9/125µm
Connectors: LC (UPC) to SC (UPC)
Wavelength range (CWDM): 1260–1625 nm
Insertion loss: <0.3 dB (typical)
Jacket: LSZH (yellow)
Standards: ITU-T G.652.D, G.657.A1; IEC 60703-2-50 type B1.3/B6.a1

How to use

Verify both ports are clean and free of dust before connecting. Align the LC connector with the matching LC receptacle and insert until it latches; insert the SC connector into the corresponding SC port until it clicks. Route the cable with gentle bends, respecting the bend-insensitive rating, and avoid sharp kinks or crushing forces. Use the supplied test report to confirm insertion loss meets installation requirements.

Usage recommendations

Use appropriate fiber cleaning tools on connectors prior to mating, secure the jumper to prevent strain on the connectors, and follow facility fire-safety rules for LSZH cabling when installing in confined or poorly ventilated spaces.

Specifications

Cable length:: 1 m
Connector 1:: LC
Connector 2:: SC
Product colour:: Yellow

All features

Data transfer rate:: 100 Gbit/s
Insertion loss:: 0.3 dB
Core diameter:: 9 µm
Cladding diameter:: 125 µm
Bending radius:: 10 mm
Wavelengths supported:: 1260, 1280, 1300, 1310, 1383, 1490, 1550, 1590, 1600, 1625
Attenuation (max):: 0.35 dB/km
Fibre optic type:: OS2
Return loss:: 55 dB
Connector polish type:: UPC

Features

Cable length:: 1 m
Connector 1:: LC
Connector 2:: SC
Product colour:: Yellow
Jacket material:: Low smoke zero halogen (LSZH), Polypropylene
Connector 1 gender:: Male
Connector 2 gender:: Male

Other features

Cable diameter:: 2 mm

Operational conditions

Storage temperature (T-T):: -20 - 60
Operating temperature (T-T):: -20 - 60

Packaging data

Package weight:: 13.4 g
Package depth:: 200 mm
Package height:: 1 mm
Package width:: 220 mm

Logistics data

Master (outer) case height:: 280 mm
Master (outer) case width:: 380 mm
Master (outer) case length:: 380 mm
Products per master (outer) case:: 650 pc(s)

Packaging content

Quantity per pack:: 1 pc(s)

Hide Show all
