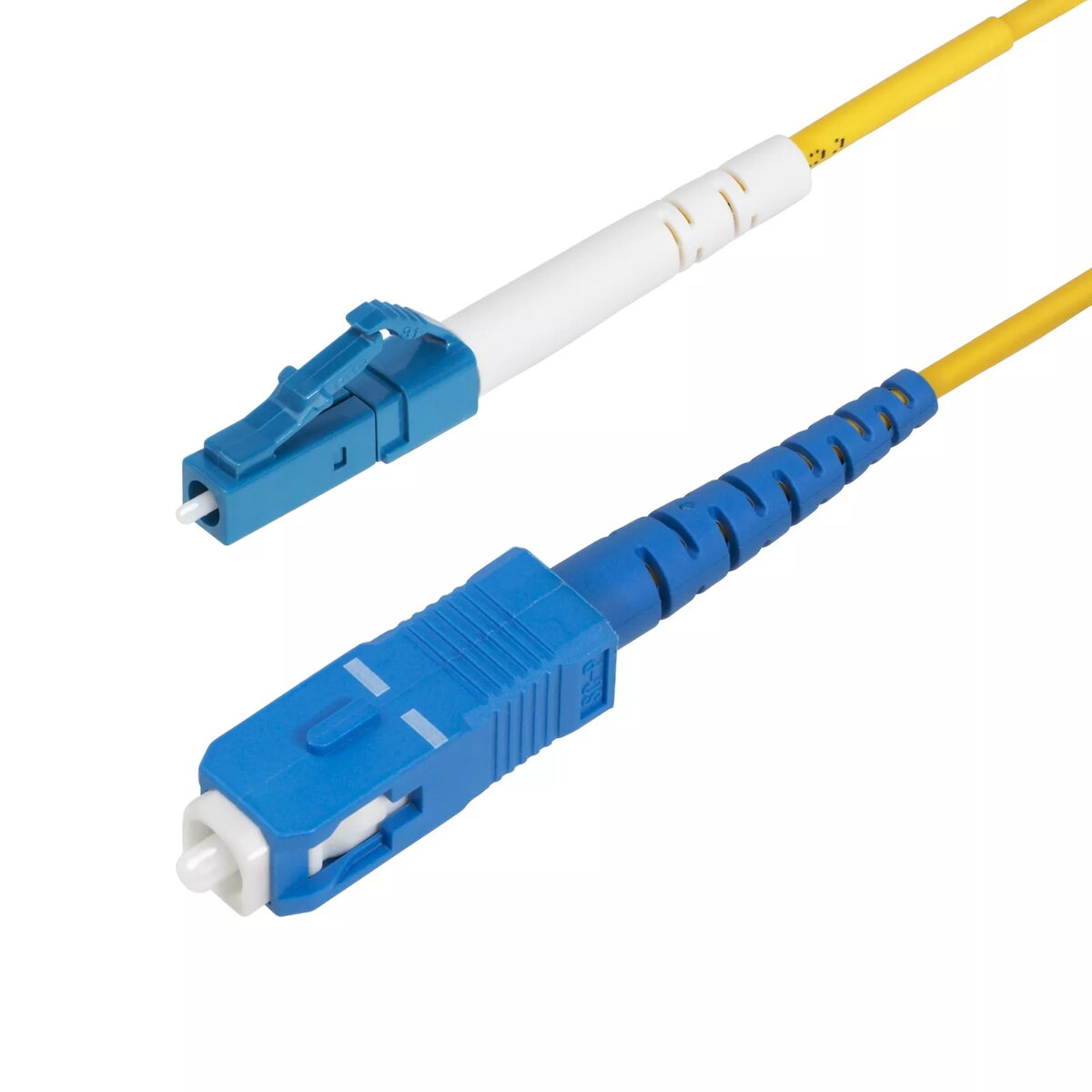

StarTech.com 3m LC to SC OS2 Single Mode Fiber Optic Cable 9/125µm

Fiber Optic Cable StarTech.com SPSMLCSC-OS2-3M Photo 1

Fiber Optic Cable StarTech.com SPSMLCSC-OS2-3M Photo 2

Fiber Optic Cable StarTech.com SPSMLCSC-OS2-3M Photo 3

Fiber Optic Cable StarTech.com SPSMLCSC-OS2-3M Photo 4

Fiber Optic Cable StarTech.com SPSMLCSC-OS2-3M Photo 5

Fiber Optic Cable StarTech.com SPSMLCSC-OS2-3M Photo 6

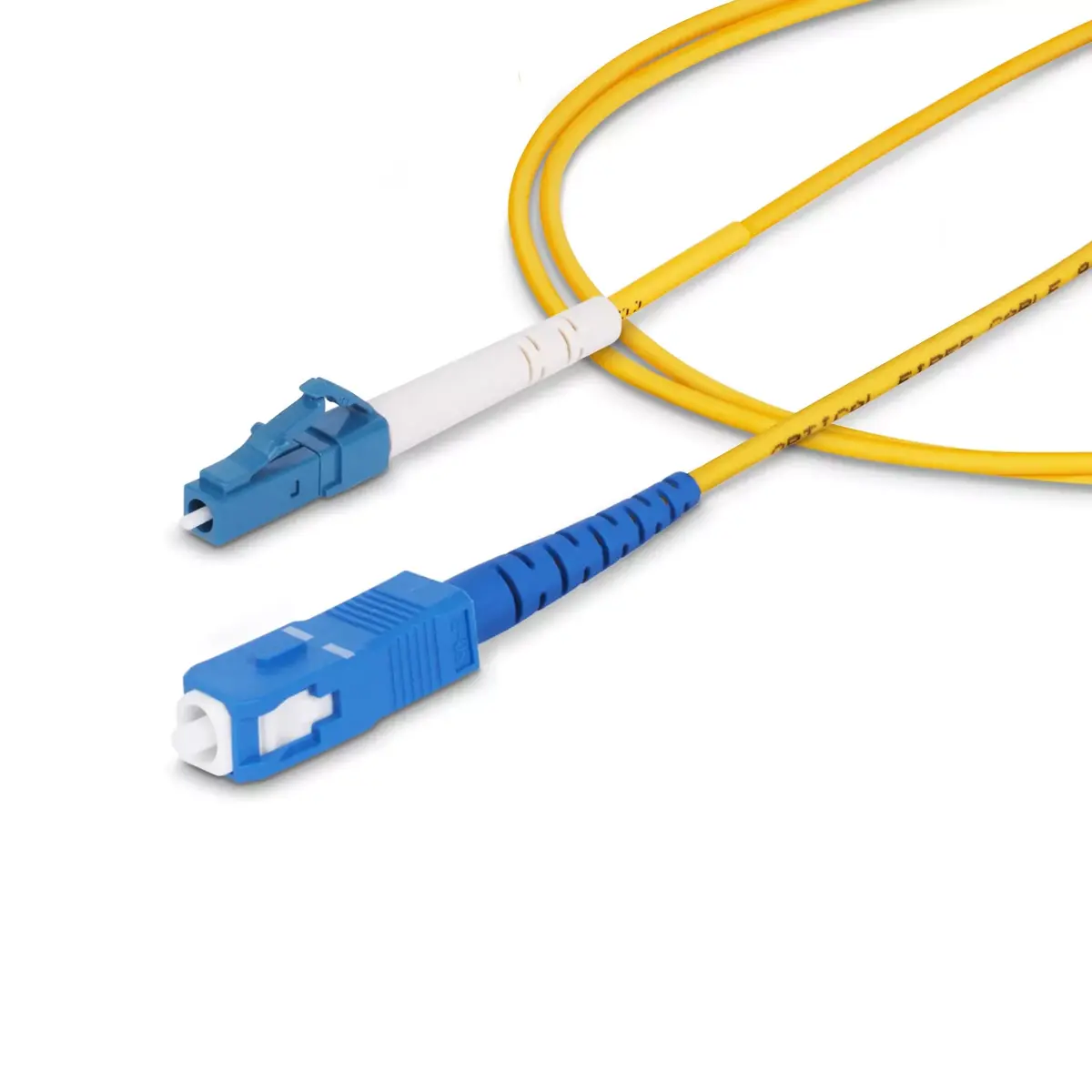

Fiber Optic Cable StarTech.com SPSMLCSC-OS2-3M Photo 7

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

The StarTech.com 3m LC to SC OS2 Single Mode Fiber Optic Cable features a 9/125µm core diameter, designed for 40G/100G applications. It is bend insensitive and has low insertion loss, making it ideal for high-speed data transmission in various networking environments.

Available at price 21.49 €: 10 pcs.

Total available for order: 20 pcs.

Warranty: 2 Years

SKU: 11256181

Manufacturer: StarTech

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

08.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

08.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

13.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.02 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

13.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

StarTech.com 3m LC to SC OS2 Single Mode Fiber Optic Cable 9/125µm is a 3-meter simplex patch cord designed for 40G/100G CWDM applications over OS2 fiber. The cable supports an extended wavelength range of 1260–1625 nm, is bend-insensitive, and is compatible with LC and SC simplex ports, SFP transceivers, and fiber NICs. Constructed with a 9/125µm core and LSZH flame-retardant jacket, it is backwards compatible with OS1 networks and supplied with individual insertion loss test reports.

Advantages

The cable provides low insertion loss (below 0.3 dB) due to precision ceramic ferrules and UPC-polished endfaces, which also improve return loss compared with older PC polishing. Bend-insensitive fiber construction and low-attenuation OS2 performance meet ITU-T G.652.D/G.657.A1 and IEC60703-2-50 type B1.3/B6.a1 standards. The LSZH jacket reduces smoke and toxic fume emissions in the event of fire, supporting safer installations in constrained or regulated environments. Each unit is individually tested and shipped with a test report.

Suitable for

CWDM 40G/100G network links
Connections between simplex patch panels and SFP transceivers
Fiber NIC connections and single-mode uplinks
Installations requiring low-smoke, zero-halogen cabling (LSZH)

Key specifications

Length: 3 m
Connector A: LC (UPC) simplex
Connector B: SC (UPC) simplex
Fiber type: OS2 single mode, 9/125 µm
Wavelength range: 1260–1625 nm (CWDM support)
Insertion loss: < 0.3 dB (typical)
Standards: ITU-T G.652.D / G.657.A1, IEC60703-2-50 type B1.3/B6.a1
Jacket: LSZH (Low-Smoke Zero-Halogen)
MPN: SPSMLCSC-OS2-3M
EAN: 0065030907002

How to use

Inspect connectors and fiber ends before installation to ensure cleanliness. Plug the LC connector into the LC simplex port and the SC connector into the SC simplex port or corresponding transceiver until each connector latches securely. Route the cable following minimum bend-radius recommendations to preserve bend-insensitive performance, avoid tight bends and crushing, and maintain stable insertion loss over the link. Verify connectivity and insertion loss using appropriate test equipment if required.

Usage recommendations

For best long-term performance, keep connector endfaces covered with dust caps when not in use, clean endfaces with approved fiber cleaning tools before mating, and avoid routing the cable near high-heat sources or sharp edges. Use the included test report to confirm that the cable meets your insertion loss requirements prior to deployment.

Specifications

Cable length:: 3 m
Connector 1:: LC
Connector 2:: SC
Product colour:: Yellow

All features

Data transfer rate:: 100 Gbit/s
Insertion loss:: 0.3 dB
Core diameter:: 9 µm
Cladding diameter:: 125 µm
Bending radius:: 10 mm
Wavelengths supported:: 1260, 1280, 1300, 1310, 1383, 1490, 1550, 1590, 1600, 1625
Attenuation (max):: 0.35 dB/km
Fibre optic type:: OS2
Return loss:: 55 dB
Connector polish type:: UPC

Features

Cable length:: 3 m
Connector 1:: LC
Connector 2:: SC
Product colour:: Yellow
Jacket material:: Low smoke zero halogen (LSZH), Polypropylene
Connector 1 gender:: Male
Connector 2 gender:: Male

Other features

Cable diameter:: 2 mm

Operational conditions

Storage temperature (T-T):: -20 - 60
Operating temperature (T-T):: -20 - 60

Packaging data

Package weight:: 20.2 g
Package depth:: 200 mm
Package height:: 2 mm
Package width:: 220 mm

Logistics data

Master (outer) case height:: 280 mm
Master (outer) case width:: 380 mm
Master (outer) case length:: 380 mm
Products per master (outer) case:: 380 pc(s)

Packaging content

Quantity per pack:: 1 pc(s)
