StarTech 100m SC–SC OS2 9/125µm Simplex Fiber Cable

Name: Fiber Optic Cable StarTech 100m SPSMSCSC-OS2-100M
Brand: StarTech
SKU: 10996032
Price: 172.49 EUR
Availability: InStock

JBL – powerful sound always with you

JBL speakers and headphones for pure and deep sound!

Fiber Optic Cable StarTech 100m SC to SC (UPC) OS2 9/125µm Simplex LSZH, 40G/100G, Bend Insensitive

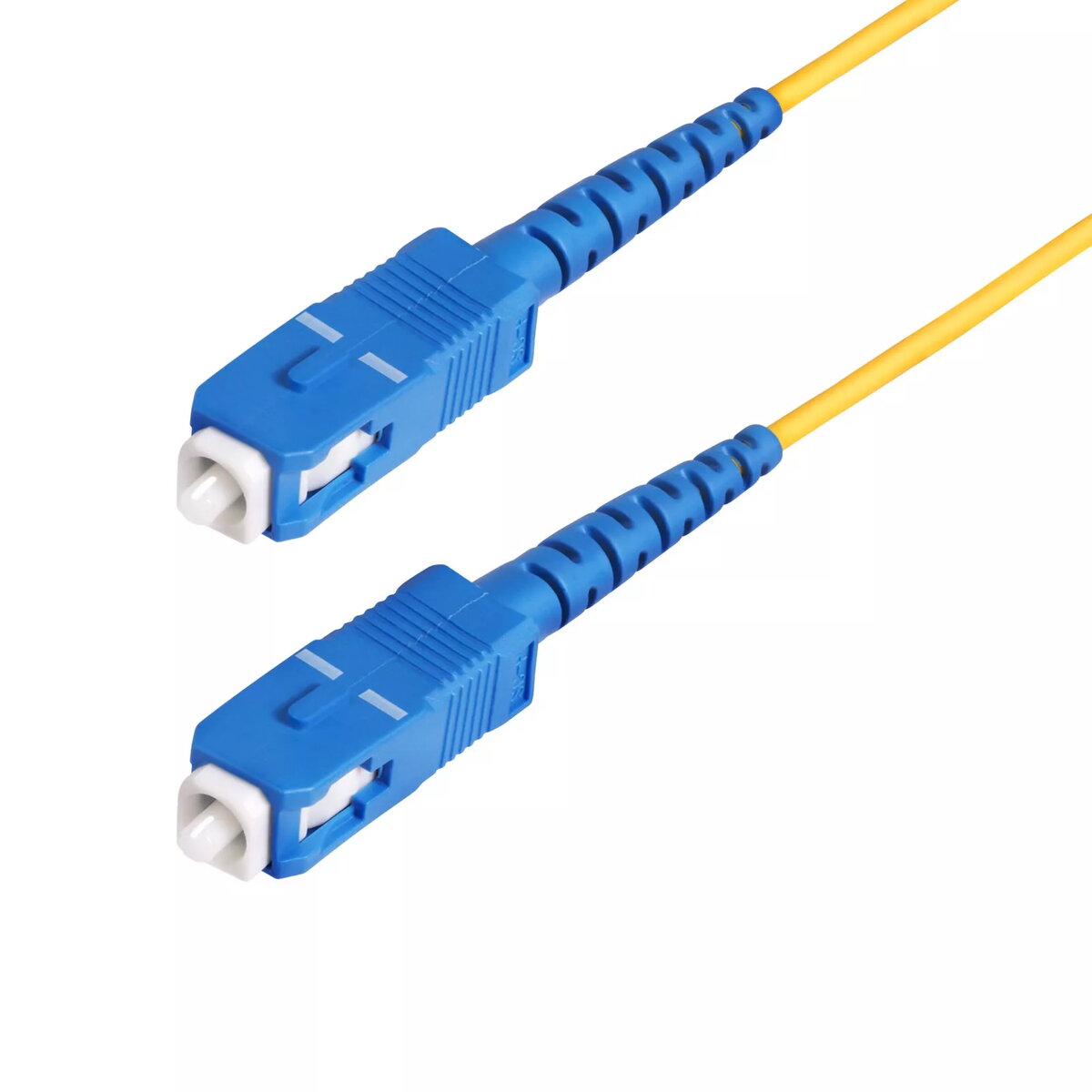

StarTech 100m SC–SC OS2 9/125µm Simplex Fiber Cable Photo 1

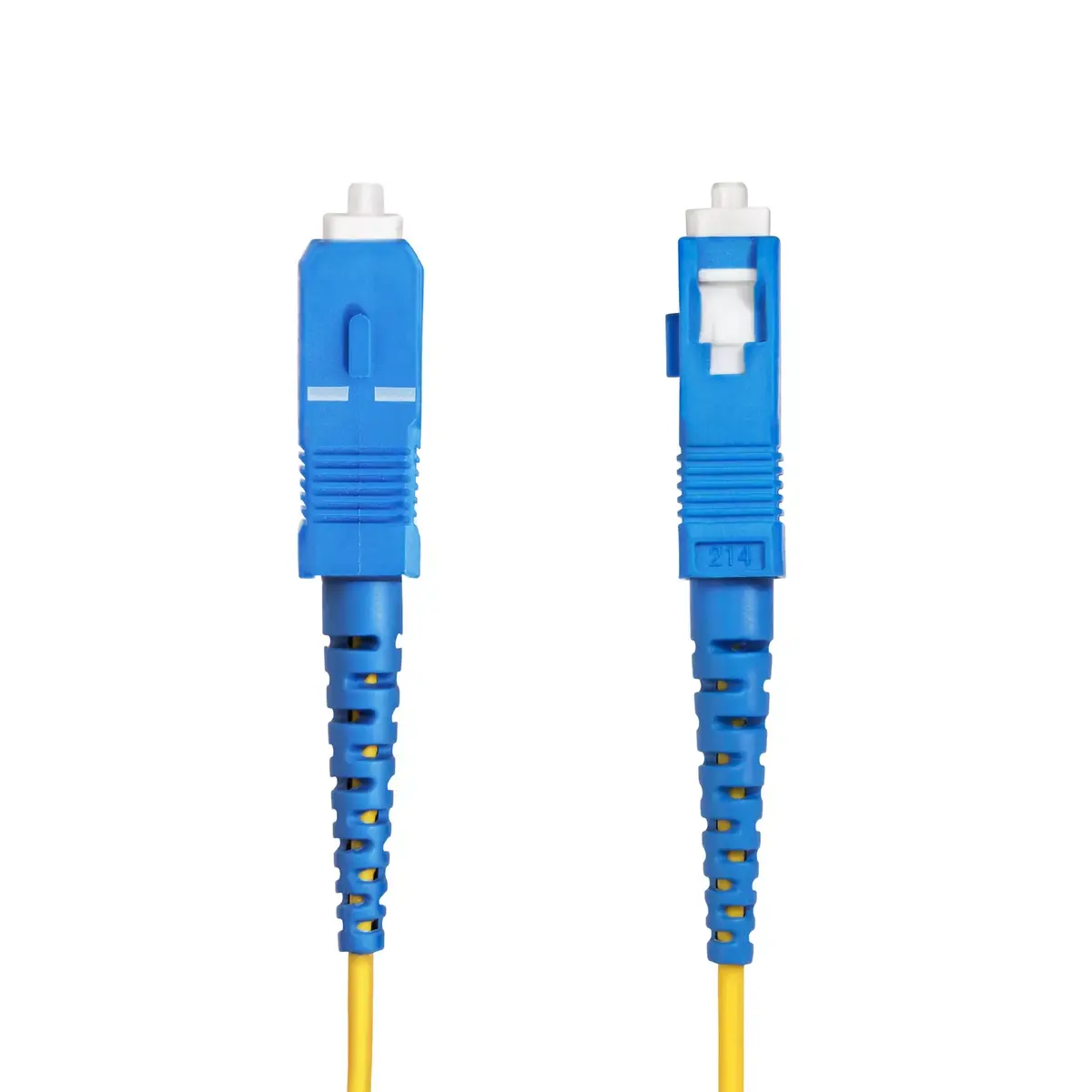

StarTech 100m SC–SC OS2 9/125µm Simplex Fiber Cable Photo 2

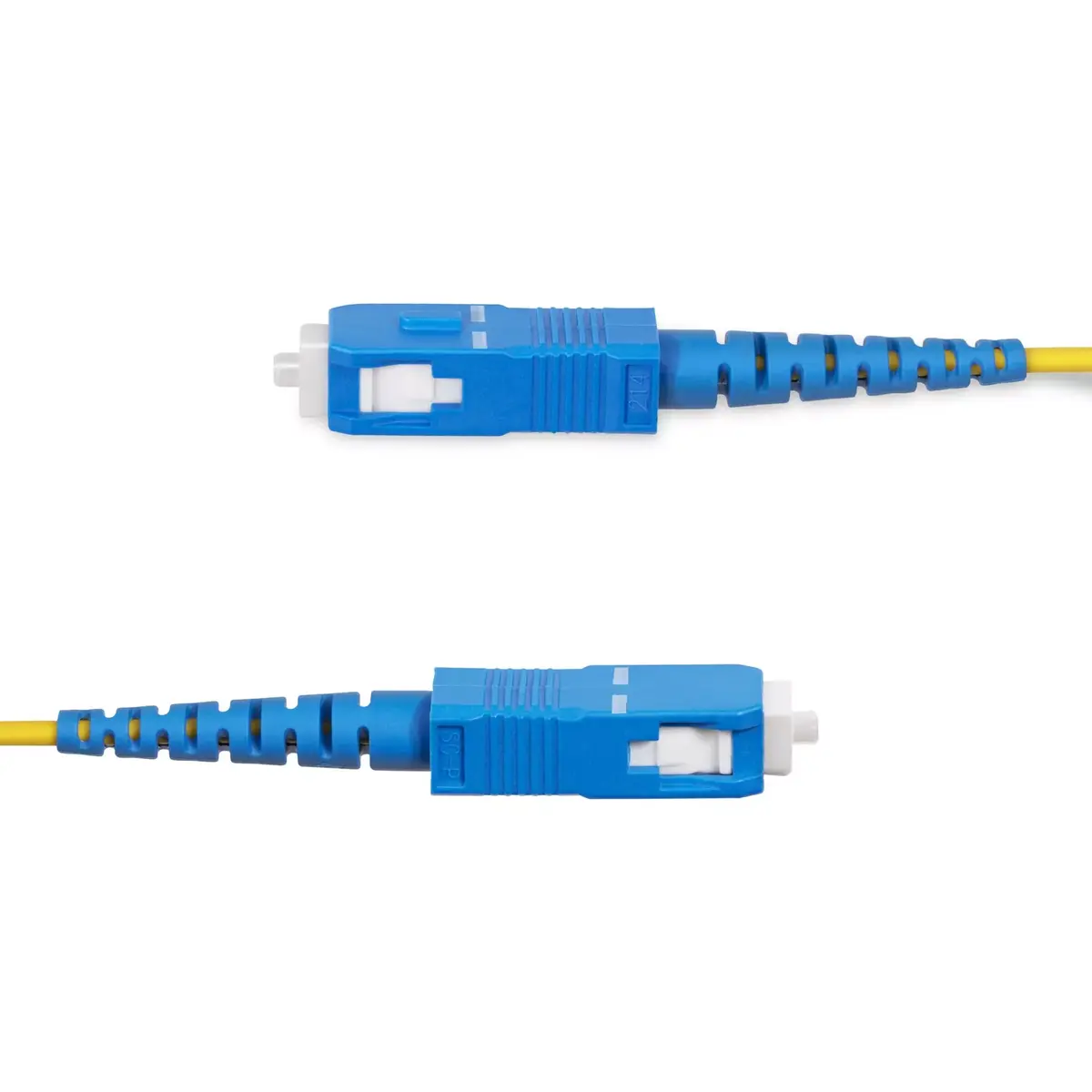

StarTech 100m SC–SC OS2 9/125µm Simplex Fiber Cable Photo 3

StarTech 100m SC–SC OS2 9/125µm Simplex Fiber Cable Photo 4

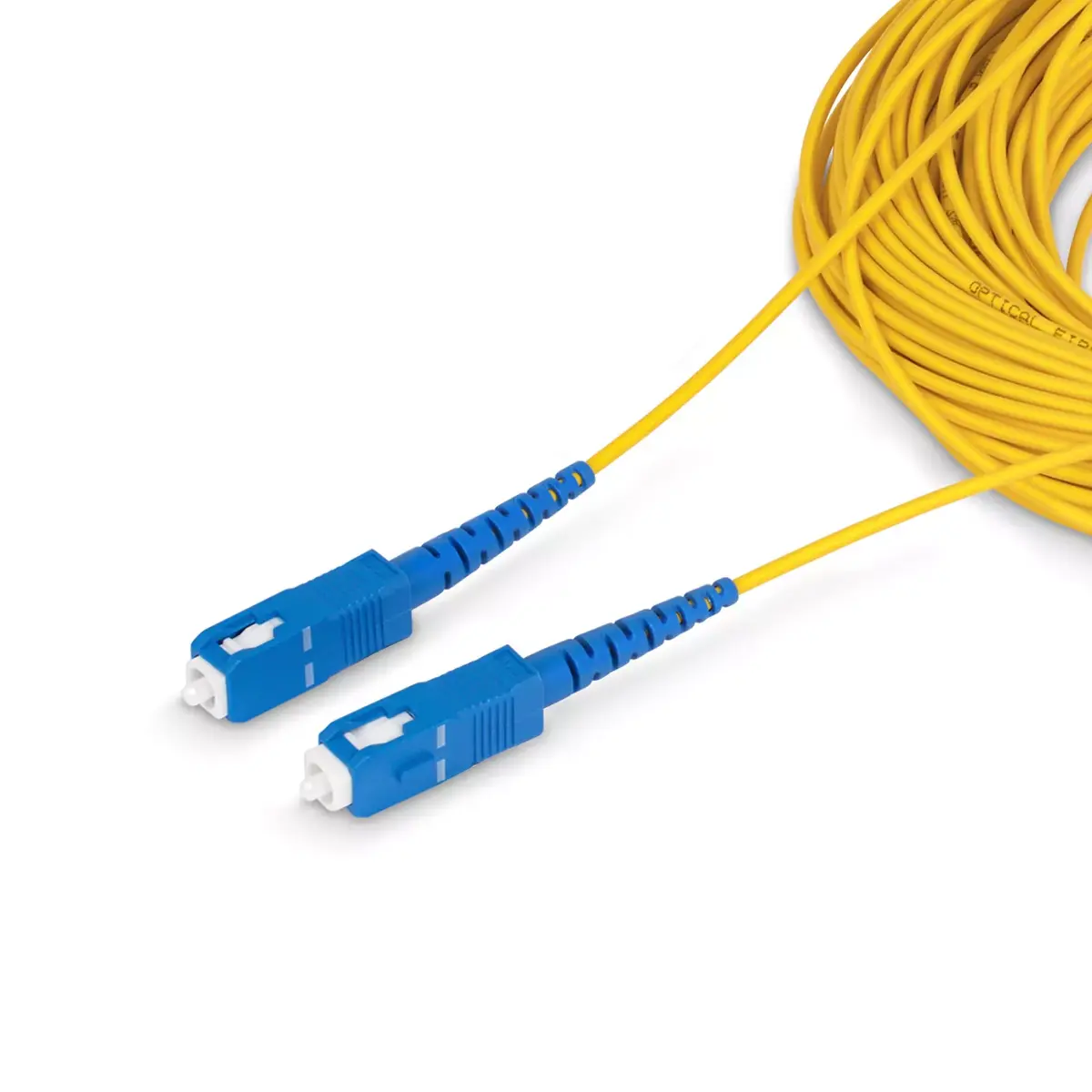

StarTech 100m SC–SC OS2 9/125µm Simplex Fiber Cable Photo 5

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

Single-mode simplex fiber optic jumper by StarTech, 100 m length with SC to SC (UPC) connectors. OS2 fiber with 9/125 µm core supports 40G/100G links, offers low insertion loss and bend-insensitive construction. LSZH jacket reduces toxic smoke in case of fire. Suitable for data center interconnects, telecom backbone runs and long-distance single-mode connections.

Available for order: 5 pcs.

Warranty: 2 Years

SKU: 10996032

Manufacturer: StarTech

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

08.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

08.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

13.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.01 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

13.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

pay in 3 equal parts

today

0 €

afterward

3 mth. х 57.5 €

overpayment

0 €

All payment Methods Hide details

All payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment

36 months installment: from 4.79 euros per month

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

StarTech single-mode simplex fiber optic jumper, 100 m in length with SC to SC (UPC) connectors, is designed for long-distance single-mode links and high-speed networks. The OS2 9/125 µm fiber core supports 40G and 100G data rates and is engineered for low attenuation and stable signal transmission. The cable features bend-insensitive construction and a Low-Smoke Zero-Halogen (LSZH) jacket to reduce hazardous emissions in confined or populated installations. Each cable is tested for insertion loss and supplied with a test report to verify performance.

Advantages

This OS2 SC to SC simplex cable provides low insertion loss through precision ceramic ferrules and UPC-polished end faces, resulting in improved return loss and connection stability. The bend-insensitive fiber design reduces performance degradation around tight bends and constrained cable routes. The LSZH jacket minimizes smoke and toxic gases in the event of fire, supporting safer installations in data centers, transportation vehicles, and indoor environments. Backward compatibility with legacy OS1 networks ensures interoperability with existing single-mode systems.

Suitable for

Data center interconnects and cross-connects
Telecom backbone and long-distance single-mode links
40G and 100G CWDM applications across extended wavelength ranges
Simplex patch panels, SFP transceiver connections and fiber NICs

Key specifications

Fiber type: Single-mode OS2, 9/125 µm core
Length: 100 meters
Connector configuration: SC to SC, UPC polished
Cable type: Simplex
Bend performance: Bend-insensitive construction
Jacket: Low-Smoke Zero-Halogen (LSZH)
Wavelength range: Supports CWDM across ~1260–1625 nm
Typical insertion loss: engineered below 0.3 dB per connector
Standards: Conforms to ITU-T G.652.D / G.657.A1 and relevant IEC optical performance classes

How to use

Install the SC to SC simplex patch cable by inserting the SC connectors into compatible SC adapters or equipment ports until the latch clicks. Route the cable to avoid sharp bends and secure it with appropriate cable management to maintain minimum bend radius. When connecting to transceivers or patch panels, ensure connectors and adapters are clean and free of dust; inspect and clean fiber end faces with recommended fiber cleaning tools before mating. Refer to system vendor guidance for transceiver and port compatibility and observe standard ESD precautions during installation.

Usage recommendations

For optimal long-term performance, store and handle the cable in a dry, dust-free environment, maintain bend radii recommended by the manufacturer, and verify insertion loss with test equipment after installation. Use the LSZH jacketed cable in enclosed spaces or areas with ventilation constraints to reduce smoke and gas risks. When planning CWDM deployments, confirm wavelength assignments and transceiver compatibility for 40G/100G links.

Specifications

Cable type:: SC/UPC
Cable length:: 100 m
Connector 1:: SC
Connector 2:: SC
Product colour:: Yellow

All features

Data transfer rate:: 100 Gbit/s
Insertion loss:: 0.3 dB
Fiber mode structure:: Single-mode
Core diameter:: 9 µm
Cladding diameter:: 125 µm
Bending radius:: 10 mm
Wavelengths supported:: 1625, 1280, 1550, 1300, 1590, 1310, 1600, 1383, 1260, 1490
Attenuation (max):: 0.35 dB/km
Fibre optic type:: OS2
Return loss:: 55 dB

Features

Cable length:: 100 m
Cable type:: SC/UPC
Connector 1:: SC
Connector 2:: SC
Product colour:: Yellow
Jacket material:: Polypropylene, Low smoke zero halogen (LSZH)
Connector 1 gender:: Female
Connector 2 gender:: Male

Other features

Cable diameter:: 2 mm

Technical details

Sustainability compliance:: Yes

Operational conditions

Storage temperature (T-T):: -20 - 60
Operating temperature (T-T):: -20 - 60

Packaging data

Package weight:: 356.1 g
Package depth:: 280 mm
Package height:: 18 mm
Package width:: 280 mm

Logistics data

Master (outer) case height:: 280 mm
Master (outer) case width:: 380 mm
Master (outer) case length:: 380 mm
Products per master (outer) case:: 20 pc(s)

Packaging content

Quantity per pack:: 1 pc(s)

Certificates

Compliance certificates:: RoHS
