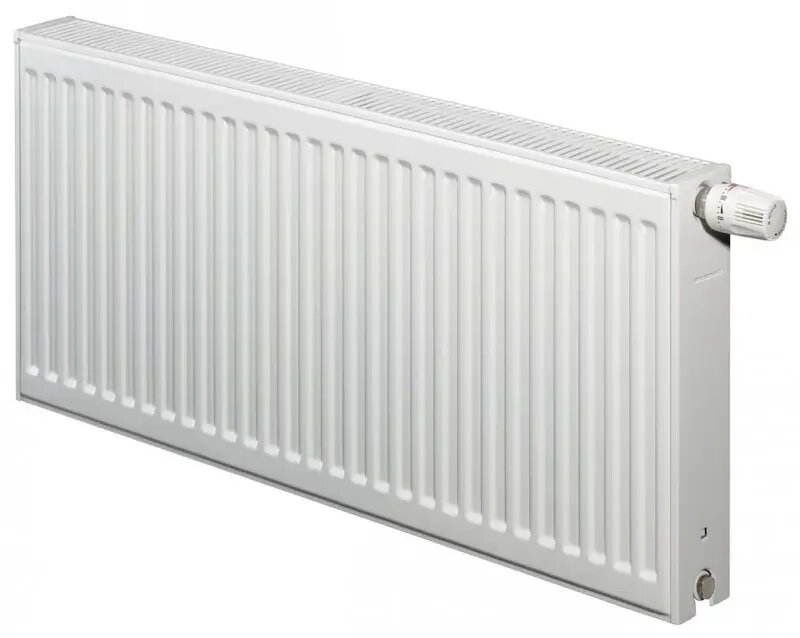

Radiator Stelrad COMPACT type 22 500x1000 mm 1203 W

Stelrad COMPACT type 22 panel radiator, dimensions 500 x 1000 mm with heat output of 1203 W, is a double-panel, double-convector radiator designed for central heating systems. Its compact depth and efficient convector fins deliver reliable heat transfer and even room temperature distribution. The radiator is intended for wall mounting and connects to common domestic and commercial pipework, providing a practical heating solution for rooms that require moderate to high heat output.

Advantages

The double-panel, double-convector construction increases surface area for heat transfer while maintaining a relatively shallow profile suitable for modern interiors. The radiator’s steel panel design ensures structural durability and consistent thermal performance. Standard connection compatibility simplifies installation with existing central heating systems and reduces adaptation work during replacement or renovation.

Suitable for

• Living rooms and lounges
• Bedrooms and guest rooms
• Offices and small commercial spaces
• Renovation projects replacing older panel radiators

Key specifications

• Type: double-panel, double-convector radiator
• Dimensions (H x W): 500 x 1000 mm
• Nominal heat output: 1203 W (specified test condition)
• Material: steel panels with convector fins
• Mounting: wall-mounted
• Connection: standard central heating pipework compatible

How to use

Mount the radiator on a suitable load-bearing wall using the supplied brackets or compatible wall-mounting set. Connect inlet and outlet to the central heating system following local plumbing codes and ensure correct valve selection for balancing and control. After installation, bleed the radiator to remove trapped air and check for leaks. Operate the radiator via room thermostats or manual thermostatic valves to maintain desired room temperature.

Usage recommendations

For optimal performance, install the radiator with appropriate clearance from furniture and curtains to allow free air circulation. Use thermostatic radiator valves to control room temperature and balance output across multiple radiators. During commissioning, flush the system if replacing older equipment to avoid debris and ensure long-term efficiency.
