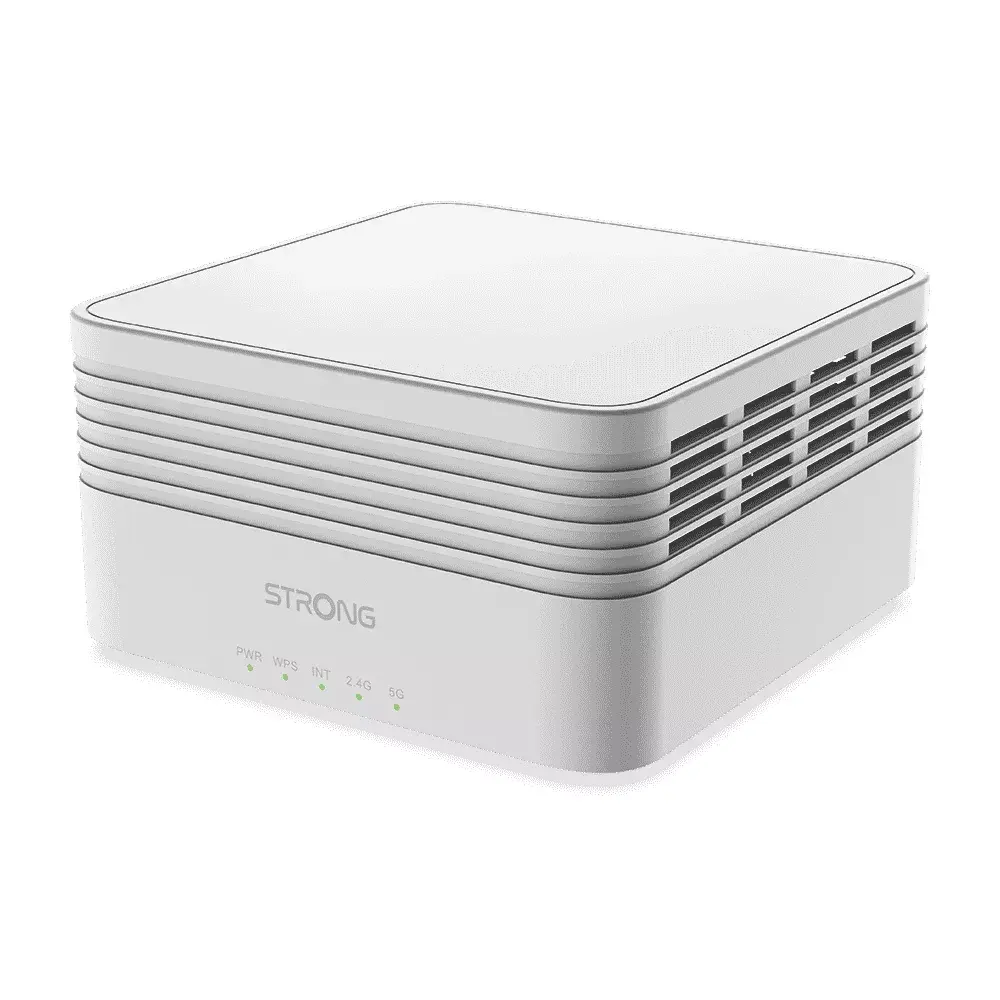

Mesh system Strong MESHKITAX3000 Wi-Fi 6 Dual-band 2.4 GHz 5 GHz

Ethernet cable:

Yes

Number of products included: The number of products that are included in the package.

2 pc(s)

Port forwarding:

Yes

Built-in processor: Whether or not a processor is built into the device.

Yes

Processor frequency: The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform.

0.9 GHz

Product type: The sub-category of the product.

Mesh system

Universal Plug and Play (UPnP):

Yes

Maximum coverage:

350 m²

Ethernet WAN:

Yes

WLAN data transfer rate (max):

2976 Mbit/s

MIMO:

Yes

Band steering:

Yes

IGMP proxy:

Yes

Number of units included:

2 pc(s)

Operational conditions

Operating relative humidity (H-H):

10 - 90

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

0 - 45

Storage relative humidity (H-H):

0 - 90

Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.

-20 - 70

Power

AC adapter output voltage:

12

AC adapter output current:

2 A

Packaging content

AC adapter included:

Yes

Design

Reset button:

Yes

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

0.32 kg

Height: The measurement of the product from head to foot or from base to top.

73 mm

Depth: The distance from the front to the back of something.

128 mm

Width: The measurement or extent of something from side to side.

128 mm

Certificates

Certification:

CE

Ports & interfaces

DC-in jack: The socket/plug where the DC electricity supply connects to the device.

Yes

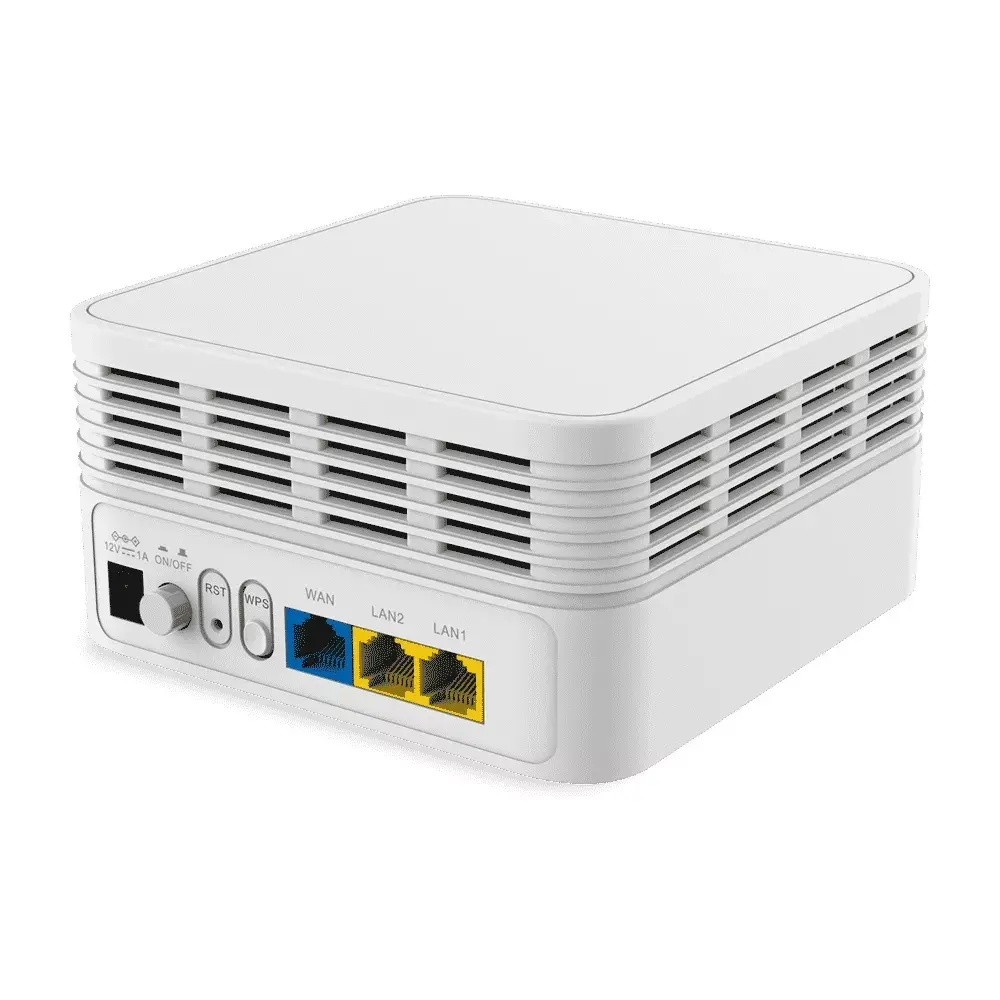

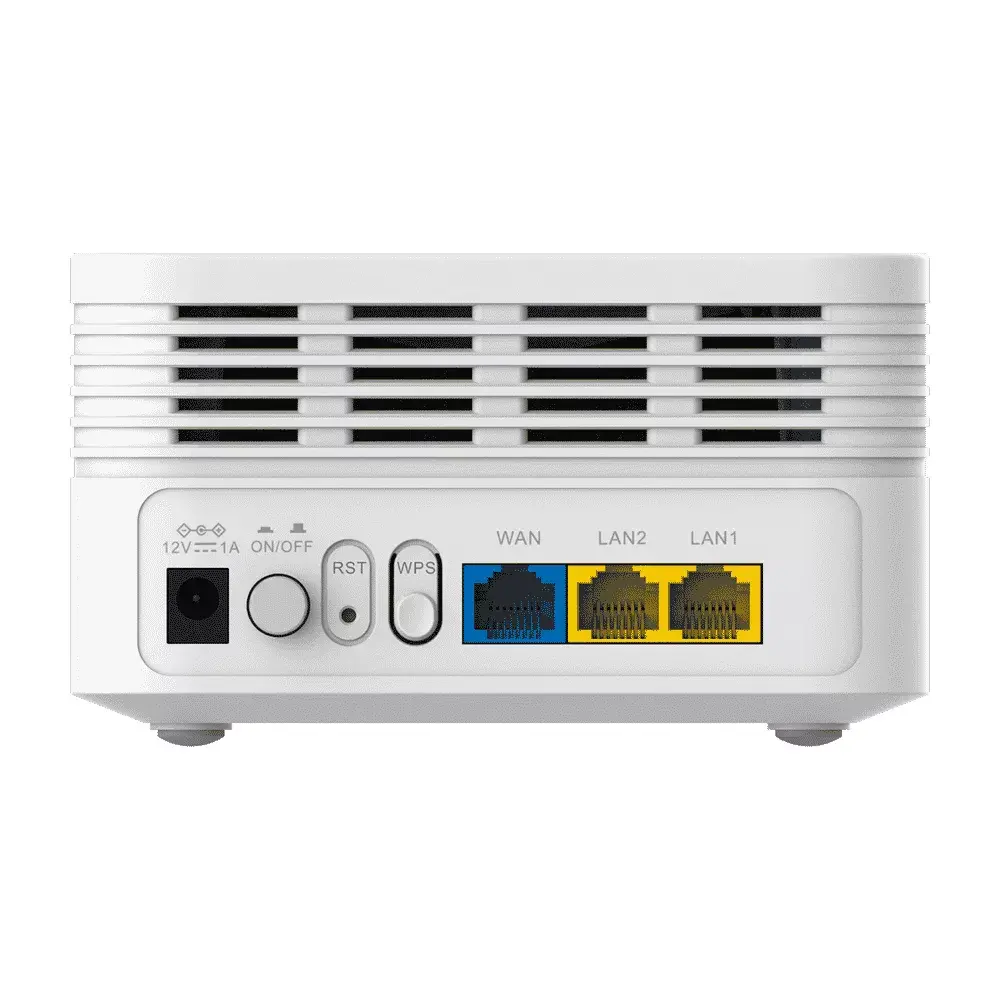

Ethernet LAN (RJ-45) ports: Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

2

Network

Security algorithms: Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.

WPA2-PSK, WPA3-SAE, WPA2, WPA-PSK, WPA

DHCP client: Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network.

Yes

DHCP server: A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one.

Yes

MU-MIMO technology:

Yes

WLAN data transfer rate (second band):

2402 Mbit/s

WLAN data transfer rate (first band):

574 Mbit/s

Wi-Fi band: The frequency bands the product features.

Dual-band (2.4 GHz / 5 GHz)

Wi-Fi standards: The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.

Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n), 802.11g, 802.11b, 802.11a

Top Wi-Fi standard: Connection of this device is done via Wi-Fi in a high standard.

Wi-Fi 6 (802.11ax)

Antenna

Antennas quantity:

4

Features

Product colour: The colour e.g. red, blue, green, black, white.

White

Antenna type: Type of antenna, also known an aerial, e.g. external, internal.

Internal

LED indicators:

Y

Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.3u, IEEE 802.3ab, IEEE 802.3

Processor cores: The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).

2

Performance

Number of devices supported: The amount of devices that can be used with this product.

254
