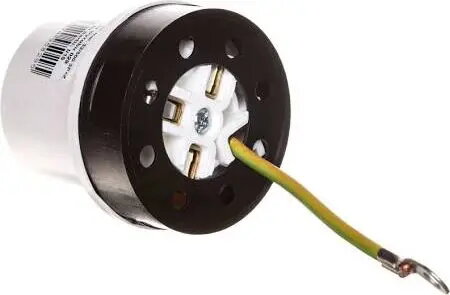

Tarel metal socket insert 32A 500V model 029 — industrial electrical connector

Tarel metal socket insert 32A 500V model 029 is a 32-ampere, 500-volt insert intended for installation into compatible metal socket housings. Designed for industrial and commercial power distribution, this metal insert provides a secure electrical interface for machinery, panel assemblies and temporary power connections where a durable, metal-bodied insert is required. The insert mates with appropriate Tarel metal socket shells to form a complete connector assembly that meets the needs of robust electrical installations.

Advantages

The insert offers a rated current of 32 A and a rated voltage of 500 V, ensuring compatibility with a wide range of industrial loads. Its metal construction increases mechanical strength and heat dissipation compared with non-metal inserts. The contact layout and insulation are designed to deliver reliable electrical contact and resistance to wear in repeated connection cycles. The component is compact for easy mounting into standard metal socket housings and supports straightforward integration into panel or enclosure installations.

Suitable for

• Industrial machinery power connections
• Control panel assemblies and distribution boards
• Temporary power supply and on-site generators
• Workshops and production lines requiring robust connectors

Key specifications

• Rated current: 32 A
• Rated voltage: 500 V
• Construction: metal socket insert for installation into metal housings
• Application: industrial and commercial power distribution
• Mounting: designed for panel/mating socket shell installation

How to use

Install the metal insert into a compatible metal socket housing following the housing manufacturer’s mounting instructions. Ensure the power is disconnected before fitting or servicing. Terminate supply and load conductors to the insert’s contact terminals using appropriate cable preparation and torque values recommended for the connector family. After installation, assemble the mating socket shell and verify secure mechanical engagement and correct alignment of contacts before applying power.

Usage recommendations

Use the insert only with compatible metal socket housings and mating plugs rated for the same current and voltage. Verify conductor sizes and torque settings for reliable connections, perform periodic inspections for wear or corrosion, and replace the insert if contact damage or overheating is observed.
