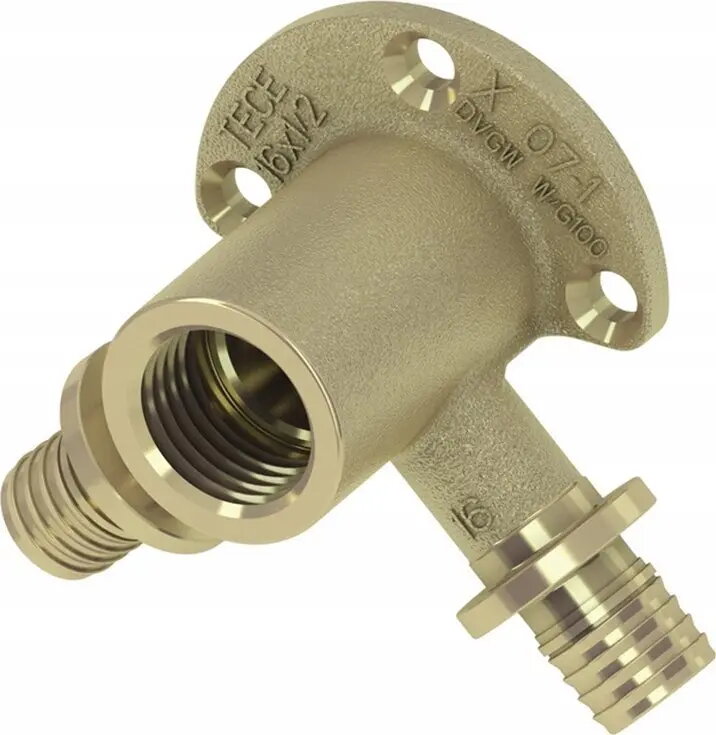

Angle elbow fitting TECE 16 x 1/2" wall-mounted double (model 708501)

TECE angle elbow fitting 16 x 1/2" wall-mounted double (model 708501) is a compact right-angle plumbing connector designed for installations that require two supply lines at a single wall connection. The fitting provides a 90° transition between 16 mm pipe systems and standard 1/2" fixtures, enabling tidy and reliable connections for sanitary and heating applications. Constructed for wall-mounted use, it allows two outlets to be routed neatly from the same mounting point.

Advantages

The double wall-mounted angle elbow offers a space-saving design that simplifies installation and reduces visible pipework. Compatibility with 16 mm pipe systems and 1/2" threaded fixtures ensures interoperability with common plumbing components. The right-angle form factor provides stable, leak-resistant connections when installed correctly, supporting both sanitary and heating system requirements.

Suitable for

• Connecting 16 mm supply pipes to 1/2" sanitary fittings such as faucets and mixer valves
• Wall-mounted installations where two supply lines share a single outlet point
• Compact bathroom and kitchen installations with limited wall space
• Heating system connections that require a 90° transition to 1/2" fixtures

Key specifications

• Connection types: 16 mm pipe interface to 1/2" threaded outlet
• Mounting style: wall-mounted, double outlet
• Flow orientation: 90° right-angle transition
• Application: sanitary and heating systems
• Design: compact double elbow for two supply lines

How to use

Install the fitting at the wall mounting point where two supply lines are required. Prepare and secure the 16 mm pipes according to the pipe system manufacturer's instructions, ensuring clean, deburred cuts and proper insertion depth. Attach the 1/2" fixtures or flexible hoses to the threaded outlets, using appropriate sealing methods recommended for the fixtures (e.g., PTFE tape or approved thread sealant) if required. Tighten connections to the torque values advised by the fixture and pipe manufacturers and check the assembly for leaks before closing walls or finishing surfaces.

Usage recommendations

Use this TECE double angle elbow in conjunction with compatible 16 mm pipe fittings and 1/2" fixtures. Verify material compatibility and pressure ratings for the overall system, and follow local plumbing codes. Perform a pressure test after installation and inspect all connections periodically to maintain leak-free operation.
