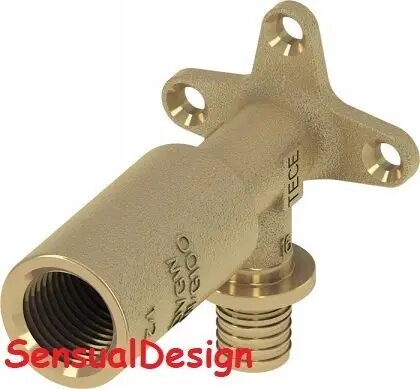

Angle fitting TECE TECEflex 16x1/2" female thread long elbow model 768502

TECE TECEflex long elbow angle fitting with a 16 mm push-fit connection and a 1/2" female thread (internal) is intended for plumbing installations that require a compact, angled transition between PE-X, PE-RT or metal-plastic pipes and a 1/2" threaded fixture or valve. The long elbow form provides additional reach and clearance in confined installation spaces, enabling connection to distribution manifolds, radiators, mixers or service valves while maintaining a sealed threaded interface.

Advantages

The long elbow design reduces stress on pipes and fittings by creating a smooth angled connection while allowing installation in tight or recessed areas. The compatibility with common plastic and composite pipe materials ensures broad applicability in modern plumbing systems. The integrated 1/2" female thread provides a standard, reliable threaded interface for fixtures and valves, simplifying assembly and maintenance.

Suitable for

• Connecting PE-X, PE-RT or metal-plastic (multilayer) pipes to 1/2" threaded fixtures and valves
• Use in distribution manifolds and service lines where an angled threaded connection is required
• Installations in confined spaces or behind panels where additional reach or offset is needed

Key specifications

• Pipe connection diameter: 16 mm push-fit compatible with PE-X, PE-RT and metal-plastic pipes
• Thread type: 1/2" female (internal) threaded connection to standard fixtures and valves
• Elbow form: long angle design for extended reach and clearance in tight spaces
• Material compatibility: suitable for use with common plumbing plastics and composite pipes
• Application area: potable water distribution, heating systems and service lines

How to use

Cut the pipe square and deburr the end before insertion. Ensure the pipe is clean and inserted fully into the 16 mm push-fit socket until it reaches the stop. Tighten the mating 1/2" threaded fixture or valve into the female thread using appropriate sealing (e.g., PTFE tape or thread sealant) as required by the installation practice. Verify alignment and support pipes to avoid strain on the connection; follow local plumbing codes and manufacturer recommendations for pressure testing and commissioning.

Usage recommendations

Use in systems operating within the rated temperature and pressure limits of the connected pipe materials and fittings. Provide appropriate mechanical support and avoid excessive bending or axial loads at the connection. When connecting to valves or fixtures, use proper thread sealant and torque to prevent leaks while protecting threads and sealing surfaces.
