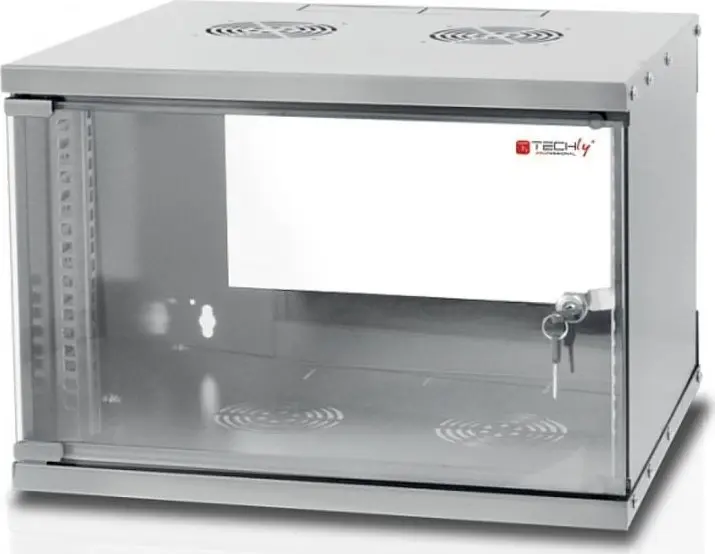

TECHLY 19" Wall Rack Cabinet 9U 450 mm

Name: Wall rack cabinet 19" 9U 023707
Brand: TECHLY
SKU: 7244553
Price: 135.49 EUR
Availability: InStock

Dreame – powerful cleaning with ease

Dreame vacuums for fast and efficient cleaning!

Wall rack cabinet 19" 9U TECHLY, depth 450 mm, IP20, key lock, 50 kg

TECHLY 19" Wall Rack Cabinet 9U 450 mm Photo 1

TECHLY 19" Wall Rack Cabinet 9U 450 mm Photo 2

TECHLY 19" Wall Rack Cabinet 9U 450 mm Photo 3

TECHLY 19" Wall Rack Cabinet 9U 450 mm Photo 4

TECHLY 19" Wall Rack Cabinet 9U 450 mm Photo 5

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

TECHLY wall-mounted 19" rack cabinet, 9U capacity and 450 mm profiled depth. Designed for networking and server equipment with a maximum load of 50 kg. Assembled grey cabinet with key lock and IP20 protection rating. Suitable for small server rooms, network closets and equipment mounting where compact, secure wall installation is required.

Available for order: 2 pcs.

Warranty: 2 Years

SKU: 7244553

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

22.09.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

22.09.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

25.09.2026 {{selectedOffer.courierDeliveryString}}

From 13.25 € (Weight: 16.80 kg)

More about delivery methods

pay in 3 equal parts

today

0 €

afterward

3 mth. х 45.16 €

overpayment

0 €

All payment Methods Hide details

All payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment

36 months installment: from 3.76 euros per month

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

TECHLY wall rack cabinet 19" 9U with 450 mm depth is a compact, wall-mounted enclosure designed to house networking and server equipment in restricted spaces. The cabinet arrives assembled in a grey finish and features a keyed lock and IP20 protection level, providing physical security and basic protection against solid objects. With a rated static load capacity of 50 kg and a 9U mounting height, this cabinet fits switches, patch panels, small servers and other 19" compatible devices where a space-efficient wall installation is required.

Advantages

The cabinet offers a space-saving wall-mount design that keeps equipment off the floor and reduces footprint in small server rooms or network closets. A keyed lock on the front door provides controlled access, while the 450 mm profiled depth supports standard 19" equipment with sufficient rear clearance for cable routing. Constructed for practical installation, the cabinet combines ready-to-use assembly with a durable finish and a defined load rating of 50 kg for secure mounting of active and passive components.

Suitable for

Small server rooms and telecommunications closets
Office network cabinets for switches, routers and patch panels
Retail or branch locations with limited floor space
Secure mounting of IP cameras, access control panels and related equipment

Key specifications

Rack format: 19" compliant, 9U usable height
Depth: 450 mm (profiled internal depth)
Protection rating: IP20 (protection against solid objects ≥12 mm)
Material and finish: assembled metal cabinet, grey finish
Locking: front door with key lock for physical access control
Maximum static load: 50 kg
Mounting: wall-mountable enclosure with appropriate fixing points

How to use

Mount the cabinet on a suitable load-bearing wall using appropriate fasteners and anchors that match the wall material and the cabinet's mounting holes. Install 19" equipment using the rack rails and secure devices with standard rack screws. Route power and network cabling through the cabinet openings while maintaining proper bend radii for cables and allowing ventilation space around heat-generating devices. Lock the front door with the supplied key to restrict access after installation.

Usage recommendations

For safe and reliable operation, distribute the equipment weight evenly across the mounting rails and avoid exceeding the 50 kg load rating. Leave space for airflow and access to connectors, and use cable management accessories to prevent strain on ports. Verify wall strength and fastening method before installation and follow local regulations for mounting and electrical connections.

Specifications

Maximum weight capacity: The maximum weight that the product is designed to hold/store.: 50 kg
Type: Characteristics of the device.: Wall mounted rack
Rack capacity: The spase that device fill in rack.: 9U

All features

Technical details

Sustainability certificates:: RoHS
Warranty period:: 15 year(s)

Packaging data

Grounding kit:: Yes
Plinth panel:: No

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.: 16.8 kg
Inner depth:: 360 mm
Height: The measurement of the product from head to foot or from base to top.: 480 mm
Depth: The distance from the front to the back of something.: 450 mm
Width: The measurement or extent of something from side to side.: 500 mm
Size (imperial): Physical dimension.: 19 "

Features

Certification:: ISO 9001
Cable entry point:: Yes
Reversible doors: The doors on the device can be moved so they can open from the right hand side (hinged on the left) or the left hand side (hinged on the right).: Yes
International Protection (IP) code: The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".: IP20
Assembly required:: No
Door opening angle:: 180 °
Dusting brush:: No
Locking points:: 1
Castor wheels: A castor (or caster) wheel is an undriven, single, double, or compound wheel that is designed to be mounted to the bottom of a larger object (the "vehicle") so as to enable that object to be easily moved. They are available in various sizes, and are commonly made of rubber, plastic, nylon, aluminum, or stainless steel. Castor wheels are found in numerous applications, including shopping carts, office chairs, and material handling equipment.: No
Front uprights:: Adjustable
Adjustable feet: The feet length (supports on the bottom of the device) can be adjusted.: No
Front door key lock:: Yes
Key lock:: Yes
Side panel style:: Blind
Front door style:: Glass door
Back door style:: Open
Removable side panels:: No
Removable front door:: No
Side panel construction:: Steel
Front door construction:: Glass
Frame type:: Closed
Material: The material from which a thing is or can be made e.g. wood, plastic.: Glass, Steel, Tempered glass
Product colour: The colour e.g. red, blue, green, black, white.: Grey
Maximum weight capacity: The maximum weight that the product is designed to hold/store.: 50 kg
Type: Characteristics of the device.: Wall mounted rack
Rack capacity: The spase that device fill in rack.: 9U
