Wall Mounted Rack Techly 19" ER-1009B60

Name: Wall Mounted Rack Techly 19" 101614
Brand: TECHLY
SKU: 10539047
Price: 161.99 EUR
Availability: InStock

Shop for gifts early

Save time and money with our discounts!

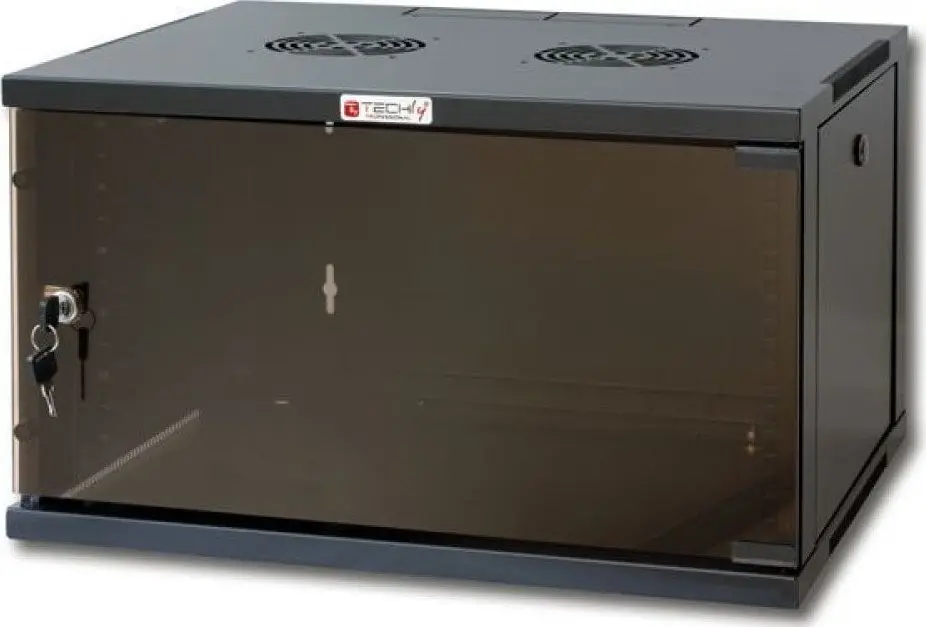

Wall Mounted Rack Techly 19" ER-1009B60 9U 600mm Black

Wall Mounted Rack Techly 19" ER-1009B60 Photo 1

Wall Mounted Rack Techly 19" ER-1009B60 Photo 2

Wall Mounted Rack Techly 19" ER-1009B60 Photo 3

Wall Mounted Rack Techly 19" ER-1009B60 Photo 4

Wall Mounted Rack Techly 19" ER-1009B60 Photo 5

Wall Mounted Rack Techly 19" ER-1009B60 Photo 6

Wall Mounted Rack Techly 19" ER-1009B60 Photo 7

Wall Mounted Rack Techly 19" ER-1009B60 Photo 8

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

The Techly 19" Wall Network Rack ER-1009B60 is a 9U rack with a depth of 600mm, designed for wall mounting. It supports a maximum weight of 50 kg and features adjustable feet and cable management. With an IP20 rating, it is suitable for indoor use. The rack weighs 24.7 kg and comes in black, making it a practical choice for organizing network equipment.

Available for order: 2 pcs.

Warranty: 2 Years

SKU: 10539047

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

28.09.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

28.09.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

01.10.2026 {{selectedOffer.courierDeliveryString}}

From 18.77 € (Weight: 24.68 kg)

More about delivery methods

pay in 3 equal parts

today

0 €

afterward

3 mth. х 54 €

overpayment

0 €

All payment Methods Hide details

All payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment

36 months installment: from 4.50 euros per month

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Techly 19" Wall Network Rack ER-1009B60 is a 9U wall-mounted network cabinet with a 600 mm outer depth and a black powder-coated finish. Intended for indoor installations, the rack provides a compact footprint (540 mm width, 450 mm height) and supports up to 50 kg of mounted equipment. Constructed from 1.0 mm cold rolled steel, it includes front and rear 19" mounting rails with unit markings, removable side panels, adjustable feet and provisions for cable entry and basic ventilation. The unit carries an IP20 protection rating suitable for protected indoor environments.

Advantages

The cabinet combines a robust steel structure with a compact wall-mounted design, allowing secure installation of network devices where floor space is limited. Adjustable mounting rails and pre-cut cable entry points simplify equipment installation and cable routing, while the lockable front door and removable panels provide controlled physical access. Its 50 kg static load capacity and 19" standard rails make it compatible with common network switches, patch panels and small servers.

Suitable for

Small office and retail network racks
Telecommunications closets and wall-mounted equipment in technical rooms
Home lab and structured cabling installations
Patch panel and switch mounting in confined spaces

Key specifications

Rack capacity: 9U
Outer depth: 600 mm
Maximum mounting depth: 455 mm
Width: 540 mm
Height: 450 mm
Static load capacity: up to 50 kg
Material: 1.0 mm cold rolled steel
Protection rating: IP20 (indoor use)
Colour: Black
Front and rear 19" mounting rails with unit scale
Removable side panels and lockable front door

How to use

Securely mount the cabinet to a suitable load-bearing wall using appropriate anchors and fixings for the wall material, ensuring the weight of installed equipment does not exceed 50 kg. Install equipment on the 19" rails, adjusting the mounting depth up to 455 mm as needed. Route cables through the pre-cut entry points in the top or base and use the available space for basic ventilation units if required. Keep removable side panels accessible for maintenance and use the door lock to control physical access.

Usage recommendations

Install in a dry, dust-controlled indoor environment consistent with IP20 protection. Distribute equipment weight evenly across the rails, leave clearance for airflow around active devices, and verify wall fixings periodically. For heavier or heat-producing equipment, consider a larger cabinet or additional ventilation to maintain reliable operation.

Specifications

Maximum weight capacity: The maximum weight that the product is designed to hold/store.: 50 kg
Type: Characteristics of the device.: Wall mounted rack
Rack capacity: The spase that device fill in rack.: 9U

All features

Technical details

Warranty period:: 15 year(s)

Packaging data

Mounting kit:: Yes
Grounding kit:: No
Plinth panel:: No
Number of nuts:: 10
Nuts included:: Yes

Weight & dimensions

Mounting depth (max):: 455 mm
Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.: 24.675 kg
Inner depth:: 455 mm
Height: The measurement of the product from head to foot or from base to top.: 450 mm
Depth: The distance from the front to the back of something.: 600 mm
Width: The measurement or extent of something from side to side.: 540 mm
Size (imperial): Physical dimension.: 19 "

Features

Certification:: ISO 9001:2008
Cable entry point:: Yes
Reversible doors: The doors on the device can be moved so they can open from the right hand side (hinged on the left) or the left hand side (hinged on the right).: Yes
International Protection (IP) code: The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".: IP20
Assembly required:: No
Door opening angle:: 180 °
Dusting brush:: No
Locking points:: 1
Castor wheels: A castor (or caster) wheel is an undriven, single, double, or compound wheel that is designed to be mounted to the bottom of a larger object (the "vehicle") so as to enable that object to be easily moved. They are available in various sizes, and are commonly made of rubber, plastic, nylon, aluminum, or stainless steel. Castor wheels are found in numerous applications, including shopping carts, office chairs, and material handling equipment.: No
Cable management: Description of improved cable management: Yes
Fan diameter: The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan.: 120 mm
Number of fans: The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).: 2 fan(s)
Cooling type: The method used to cool the device or to cool the air around the device.: Active
Front uprights:: Adjustable
Back uprights:: Adjustable
Adjustable feet: The feet length (supports on the bottom of the device) can be adjusted.: Yes
Adjustable mounting rails:: Yes
Side panel key lock:: Yes
Front door key lock:: Yes
Back door key lock:: No
Side panel style:: Blind
Front door style:: Glass door
Back door style:: Blind
Removable side panels:: Yes
Removable front door:: No
Removable back door:: No
Front door construction:: Glass
Material: The material from which a thing is or can be made e.g. wood, plastic.: Steel
Product colour: The colour e.g. red, blue, green, black, white.: Black
Maximum weight capacity: The maximum weight that the product is designed to hold/store.: 50 kg
Type: Characteristics of the device.: Wall mounted rack
Rack capacity: The spase that device fill in rack.: 9U
