Patch Panel Techly 24 Ports RJ45 Cat.6A Inclined Output 1U Black

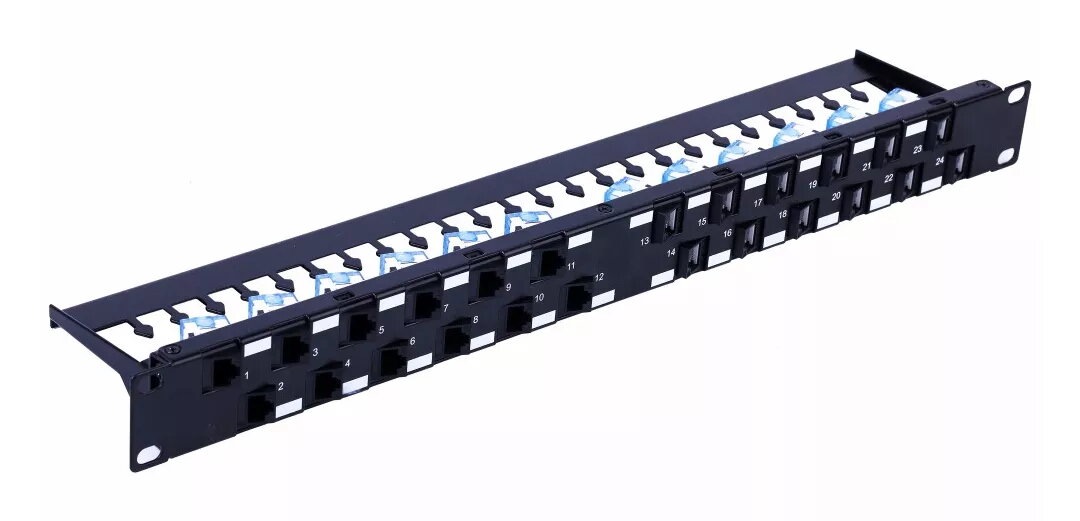

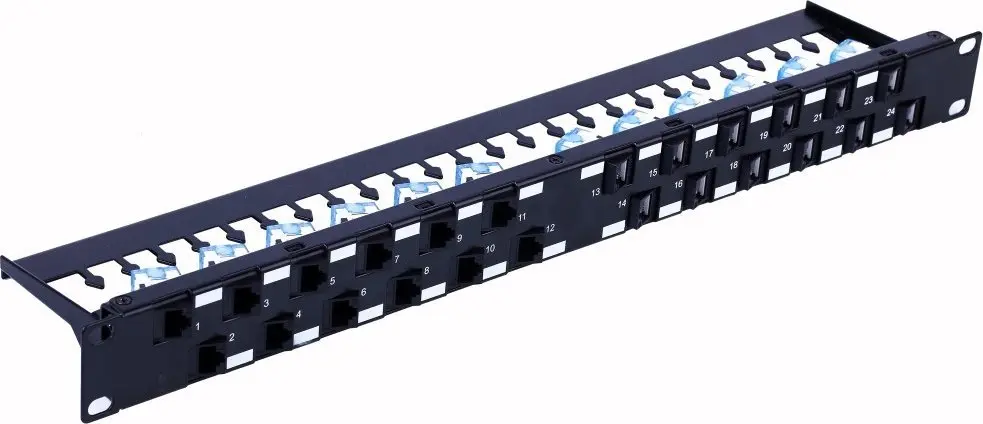

The Techly 24 Ports RJ45 Cat.6A inclined output patch panel is a 1U rack-mounted network component designed for structured cabling installations. It provides 24 RJ45 ports compatible with Cat.6A U/UTP cabling and is manufactured from durable SPCC steel in a black finish. The inclined rear output simplifies cable routing and helps maintain an organized rack environment while meeting CE and RoHS compliance for safety and environmental standards.

Advantages

This patch panel supports Cat.6A performance over 24 RJ45 connections, enabling high-speed data transmission and reduced interference when used with appropriate U/UTP cabling. The SPCC construction ensures mechanical robustness for repeated patching and rack mounting. An inclined output design improves cable management by directing cables downward or to the rear at an angle, reducing stress on connectors and making terminations more accessible. Compliance with CE and RoHS indicates adherence to common regulatory and environmental requirements.

Suitable for

• Server rooms and data closets where 1U rack space is required
• LAN installations requiring Cat.6A performance for 10 Gigabit Ethernet
• Telecommunications cabinets and patching panels in offices
• Structured cabling projects demanding neat cable routing and management

Key specifications

• Number of ports: 24 RJ45 connectors
• Cabling standard: Cat.6A (supports U/UTP)
• Form factor: 1U rack-mount
• Material: SPCC steel construction

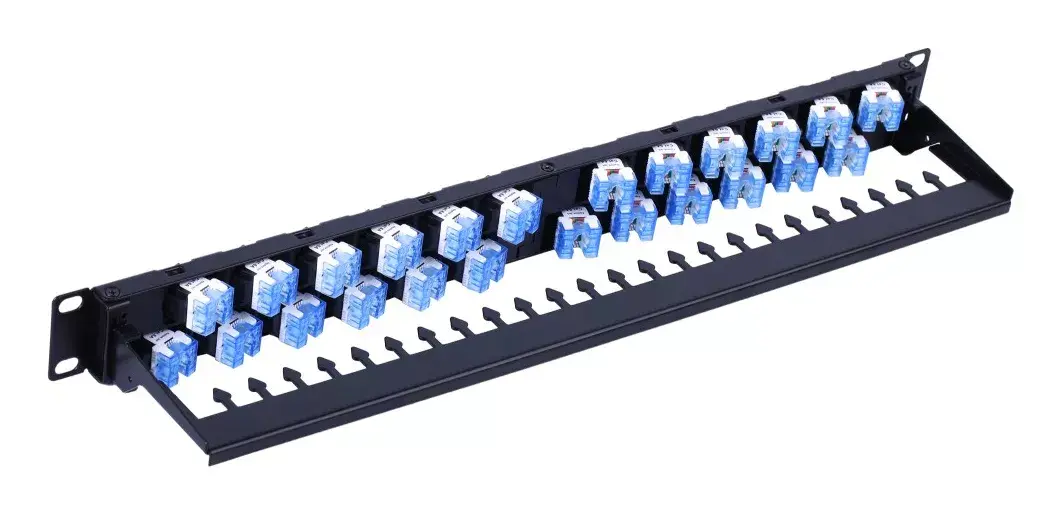

• Output orientation: inclined rear cable exit for improved management
• Colour: black
• Weight: approximately 0.924 kg
• Standards: CE and RoHS compliant

How to use

Mount the patch panel into a standard 19-inch rack occupying a single U of space. Terminate Cat.6A U/UTP cables to the rear IDC or punch-down points following the T568A or T568B wiring scheme as required by the installation. Route cables through the inclined output to minimize bend radius and connector strain, and secure cable bundles with appropriate ties or management accessories. Label ports on the front panel to reflect connected devices or switch ports for simplified maintenance.

Usage recommendations

For optimal performance, use Cat.6A-rated U/UTP cables and compatible RJ45 connectors, keep cable runs within recommended maximum lengths, and maintain proper separation from power lines to reduce electromagnetic interference. Regularly inspect terminations and cable management to ensure consistent network reliability.
