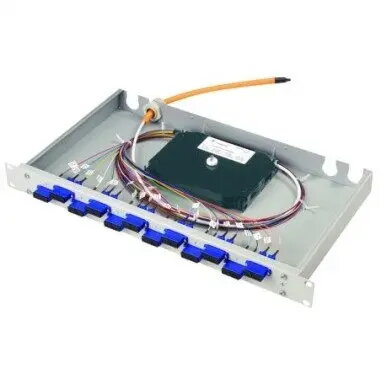

Fiber optic patch panel Telegärtner H02030B9009 1U duplex, rack-mount

Telegärtner H02030B9009 1U duplex rack-mount fiber optic patch panel offers a compact and organized solution for terminating and routing duplex fiber connections in standard 19-inch rack environments. Designed for front-facing duplex adapters, the panel supports structured cable management and protects fiber terminations within a 1U housing suitable for data centers, telecom cabinets and network distribution areas.

Advantages

The panel provides a space-efficient 1U form factor that fits standard 19-inch racks and enables high-density duplex terminations. Front-facing duplex adapters allow easy access for patching and testing without opening the rack, while internal routing and protection features reduce bend and handling stress on fiber cables. The metal housing gives mechanical protection and stable mounting for permanent or semi-permanent installations.

Подходит для

• терминализации и упорядочивания дуплексных оптических линий в стойках
• шасси серверных комнат и центров обработки данных
• телекоммуникационных шкафов и коммутационных зон
• обеспечения удобного доступа для обслуживания и тестирования волокон

Key specifications

• Form factor: 1U rack-mount for 19-inch racks
• Adapter orientation: front-facing duplex adapter panel
• Supported connector type: duplex fiber adapters (compatible with standard duplex connectors)
• Material: metal housing for mechanical protection
• Cable management: internal routing and protection to limit bend radius
• Mounting: fixed rack mounting with standard mounting holes

How to use

Install the patch panel into a standard 19-inch rack occupying a single rack unit (1U). Route incoming and outgoing duplex fiber cables into the rear of the panel, secure them with strain relief or cable ties as appropriate, and terminate or install duplex adapters at the front. Connect patch cords to the front-facing duplex adapters for cross-connects or equipment links. Ensure fiber bend radius limits are observed and that connectors are clean before making connections to maintain signal integrity.

Рекомендации по использованию

Для надежной работы используйте подходящие кабельные хомуты и организаторы на задней панели, очищайте разъемы перед подключением и избегайте резких изгибов волокон. При установке в плотных стойках учитывайте доступ для обслуживания и оставляйте место для тестового оборудования.
