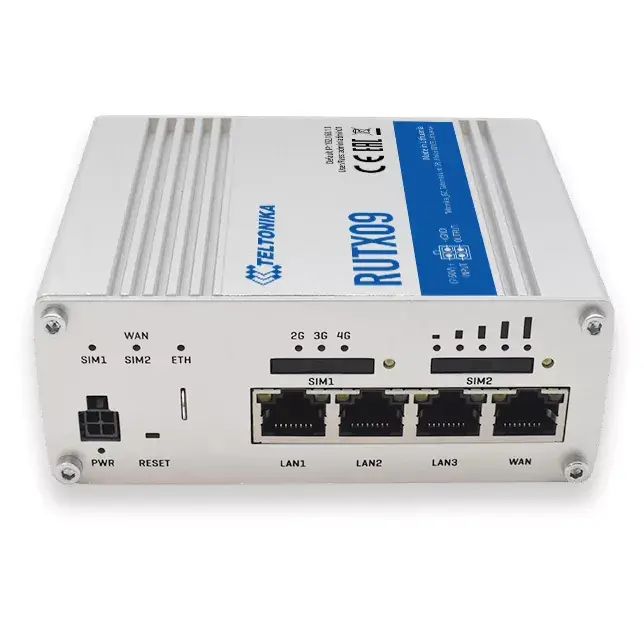

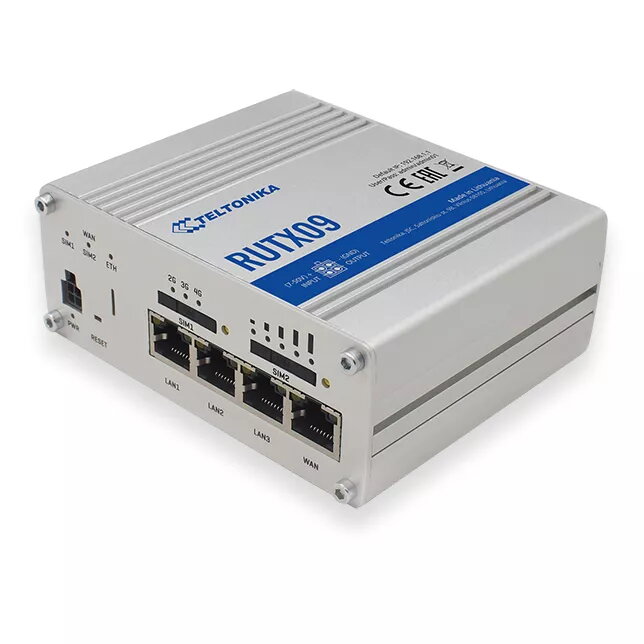

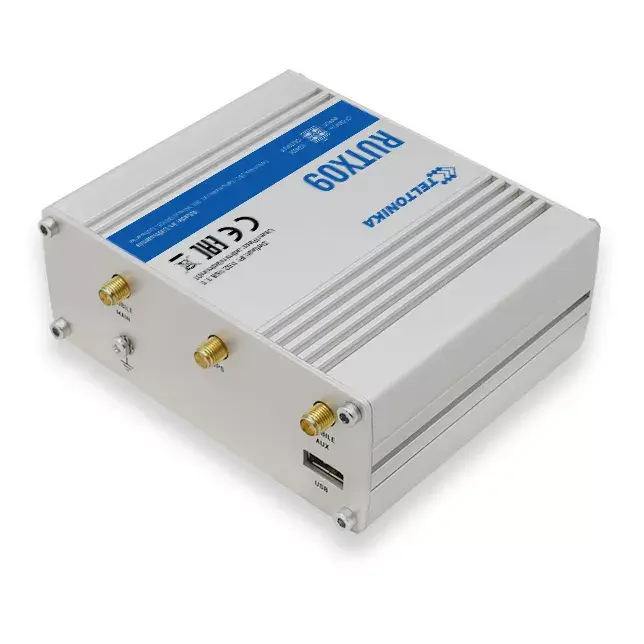

Cellular network router Teltonika RUTX09

Device type: Type or category of the device.

Cellular network router

GPS (satellite): Global Positioning System (GPS) is a space-based satellite navigation system that provides location and time information in all weather conditions, anywhere on or near the Earth where there is an unobstructed line of sight to four or more GPS satellites. The system provides critical capabilities to military, civil and commercial users around the world. It is maintained by the United States government and is freely accessible to anyone with a GPS receiver.

Yes

IP routing:

Yes

Number of simultaneous SIM cards:

2

USB port: The device features a socket into which a USB cable can be plugged.

Yes

Other features

Wi-Fi: Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.

No

Logistics data

Harmonized System (HS) code:

85176990

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

0.456 kg

Height: The measurement of the product from head to foot or from base to top.

44 mm

Depth: The distance from the front to the back of something.

95 mm

Width: The measurement or extent of something from side to side.

115 mm

Operational conditions

Operating relative humidity (H-H):

10 - 90

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

-40 - 75

Design

LED indicators:

Y

Product colour: The colour e.g. red, blue, green, black, white.

Grey

Security

Network address translation (NAT):

Yes

Firewall:

Yes

Security algorithms: Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.

SSH, SNMP, DES, 256-bit AES, 192-bit AES, 128-bit AES, 3DES

Protocols

DMZ support:

Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports: Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

4

Management features

Reset button:

Yes

Web-based management: Using a website/web application to manage something.

Yes

Mobile network

Data network: Telecommunications network that allows computers to exchange data.

HSDPA, HSUPA, LTE, WCDMA, 4G, 3G

Short Message Service (SMS):

Yes

UMTS bands supported:

2100

Network

Auto MDI/MDI-X: A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.

Yes

Port forwarding:

Yes

Ethernet LAN data rates: The different speed levels of the Ethernet LAN connection.

1000, 100, 10

Ethernet LAN: An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.

Yes
