Enclosure TIBOX MCB Box 440×450×115 mm with 2×16P DIN rail positions, IP54 surface-mount

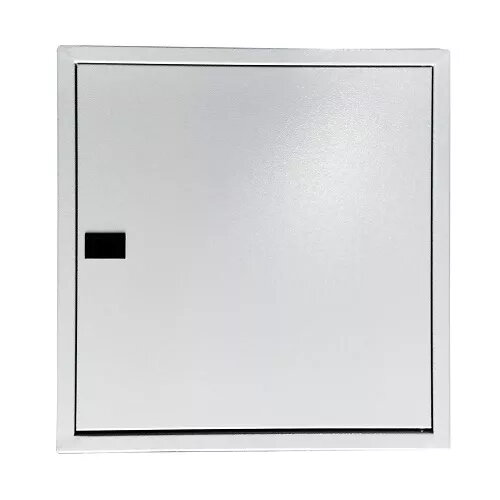

TIBOX MCB Box 440×450×115 mm is a surface-mount metal enclosure designed to accommodate miniature circuit breakers on two DIN rails with 16 poles each (2×16P). The cabinet is intended for use in residential, commercial or light industrial electrical installations where protection of distribution circuits and neat cable routing are required. The enclosure is finished in textured epoxy polyester powder coat in RAL 7035 (light gray) and rated IP54 for protection against dust and splashing water.

Advantages

The metal body with a front frame and knock-outs on all sides allows tidy routing and concealment of incoming and outgoing cables. The package includes the box body, door with lock system, two DIN rails and a front frame with cutouts for breakers, enabling straightforward assembly. The IP54 safety rating provides resistance to dust ingress and splashing water, and the epoxy polyester textured finish increases surface durability.

Suitable for

• Surface-mounted distribution of circuit breakers in apartments and houses
• Small commercial or office switchboard installations
• Light industrial or workshop electrical panels where IP54 protection is sufficient
• Retrofit projects requiring a surface-mounted enclosure

Key specifications

• Model: TIBOX MCB Box AS216
• Dimensions (HxWxD): 450 × 440 × 115 mm
• DIN rail positions: 2 rows × 16 poles (2×16P)
• Material: sheet steel (metal)
• Mounting type: surface mount
• Protection rating: IP54
• Color: RAL 7035 (light gray)
• Wall and door thickness: 1.2 mm

How to use

Mount the enclosure to a suitable flat surface using appropriate fasteners for the substrate. Install the supplied DIN rails inside the box and mount miniature circuit breakers onto the rails according to their manufacturer instructions. Route incoming and outgoing cables through the provided knock-outs, secure connections on terminal points, close the front frame, and lock the door using the supplied lock system. Verify the enclosure is properly sealed after installation to maintain the IP54 rating.

Usage recommendations

Use the TIBOX MCB Box in environments where IP54 protection is adequate; avoid exposure to heavy water jets or full immersion. Select breaker sizes and wiring that conform to local electrical codes and standards. For installations in harsher environments, consider a higher IP-rated enclosure.
