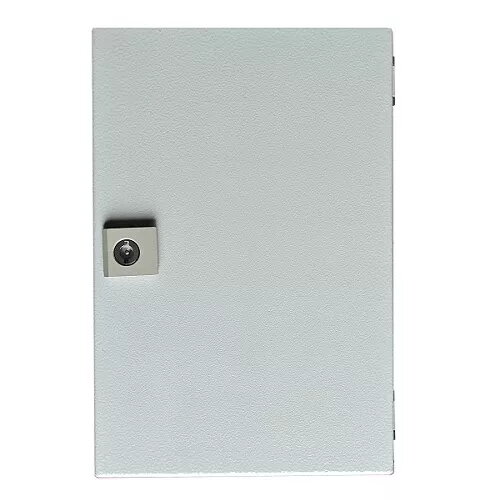

Terminal Box TIBOX TB20308 surface-mount steel enclosure 300×200×80 mm

Terminal Box TIBOX TB20308 is a single-door, wall-mount steel enclosure sized 300×200×80 mm designed to house wiring, terminals and small electrical devices. The enclosure provides protection in indoor and protected outdoor locations with IP66 dust and water resistance and IK10 impact resistance. The package includes the enclosure with a locking system, gland holes for a device mounting plate, sealing gasket and mounting accessories. The mounting plate is sold separately. The enclosure is finished with a textured epoxy polyester powder coating in RAL 7035 light gray and features 180° hinges for convenient access.

Advantages

The sheet-steel construction offers mechanical robustness and long-term durability. IP66 and IK10 ratings ensure protection against moisture, dust and mechanical impacts for both residential and industrial applications. A single lock and 180° hinges provide secure closure and full door opening for maintenance. Preformed gland holes and included mounting accessories simplify installation.

Suitable for

• Distribution and junctions for wiring in residential buildings
• Small control or terminal points in industrial premises
• Protected outdoor installations requiring IP66 and IK10 protection
• Surface-mount applications on walls

Key specifications

• Brand: TIBOX, Model: TB20308
• Dimensions (H×W×D): 300 × 200 × 80 mm
• Material: sheet steel, body and door thickness 1.2 mm
• Mounting: wall mount (surface-mount)
• Protection class: IP66 (dust and water) and IK10 (impact)
• Color: RAL 7035 (light gray)
• Hinges: 180°; Number of locks: 1

How to use

Mount the enclosure on a suitable flat wall surface using the supplied mounting accessories. Install the separately purchased mounting plate into the gland holes if required, then route and secure cables through the provided gland openings. Place terminals or small devices inside the enclosure and fasten them to the mounting plate. Close the door and engage the locking system to maintain IP66 protection. For outdoor use ensure correct sealing and appropriate cable glands rated for the environment.

Usage recommendations

For reliable performance, use compatible mounting plates and cable glands, verify that seals are seated correctly after installation, and avoid placing heat-generating equipment inside a tightly sealed enclosure without ventilation or external cooling.
