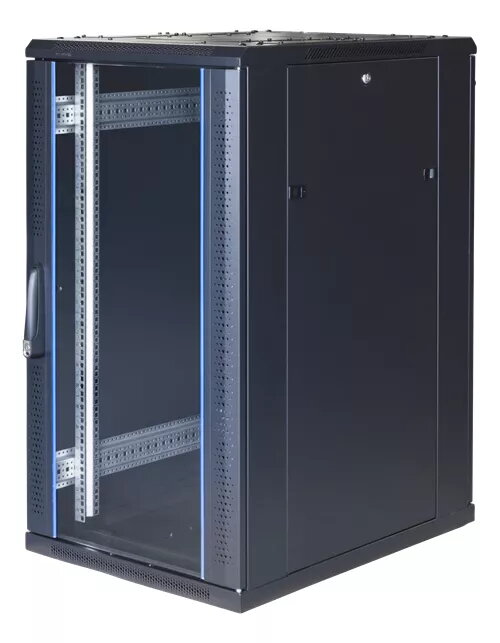

19" cabinet TOTEN 19-G6822GM 22U with glass front door, 600x800 mm

TOTEN 19-G6822GM is a 19-inch, 22U floor cabinet with a tempered glass front door and metal rear door, sized 600x800 mm and finished in black. The cabinet is factory-assembled with laser-cut parts, hydraulic turret punching and robot welding for consistent precision. Mounting columns are made from a patented zinc alloy, adjustable in 25 mm increments; the inner mounting width is 487 mm. The outer casing is powder-coated SPCC steel (1.2 mm, RAL9004) and the cabinet has an IP20 protection rating. The enclosure is supplied with feet fitted and includes wheels, cage nuts with screws, keys and mounting hardware.

Advantages

The TOTEN 19-G6822GM features high manufacturing accuracy achieved through automated cutting and welding processes and a durable powder-coated finish. Zinc-alloy mounting columns reduce electrostatic risk and withstand repeated installations; adjustable columns allow flexible positioning of 19" equipment. The tempered glass front door provides visibility of mounted devices while the lockable metal rear door and removable, lockable side panels offer physical security.

Suitable for

• Server rooms and data racks
• Network closets and telecommunication cabinets
• Small to medium IT installations requiring organized 19" rack mounting
• Environments where device visibility and physical protection are needed

Key specifications

• Model: TOTEN 19-G6822GM
• Form factor: 19" cabinet, 22U
• External dimensions (W×D×H): 600 × 800 × 1166 mm
• Inner mounting width: 487 mm
• Mounting columns: 2 mm zinc alloy, adjustable in 25 mm steps
• Outer casing: 1.2 mm powder-coated SPCC steel (RAL9004)
• Front door: tempered glass, right-hinged with lock
• Rear door: metal, right-hinged with lock
• Side panels: removable and lockable
• Protection rating: IP20
• Load capacity: up to 800 kg
• Included accessories: wheels, cage nuts with screws, keys, mounting hardware
• EAN: 7333048024381
• Country of origin: CN

How to use

Place the assembled cabinet on a level surface and, if required, fit the supplied wheels for mobility. Adjust the front and back mounting columns in 25 mm increments to suit the rack equipment. Mount 19" devices using the supplied cage nuts and screws, route cables through appropriate openings and secure side panels and doors. Lock doors with the provided keys after installation to secure equipment.

Usage recommendations

Always inspect the cabinet for transport damage before signing the delivery note; record and report any damage to the carrier immediately. Install the cabinet in a ventilated environment and ensure load distribution does not exceed the rated 800 kg capacity.
