Mercusys AX1500 Wi-Fi 6 Range Extender ME60X Network Repeater with Gigabit Ethernet Port and Dual-Band Support

The Mercusys AX1500 Wi-Fi 6 Range Extender ME60X network repeater is designed to eliminate wireless dead zones and expand network coverage throughout large homes or offices. Utilizing advanced Wi-Fi 6 technology, this device improves network speed, efficiency, and capacity while remaining backward compatible with previous generation wireless standards. It offers high-speed dual-band connectivity with data transfer rates up to 1500 Mbps, ensuring stable and reliable internet access for multiple connected devices simultaneously.

Advantages

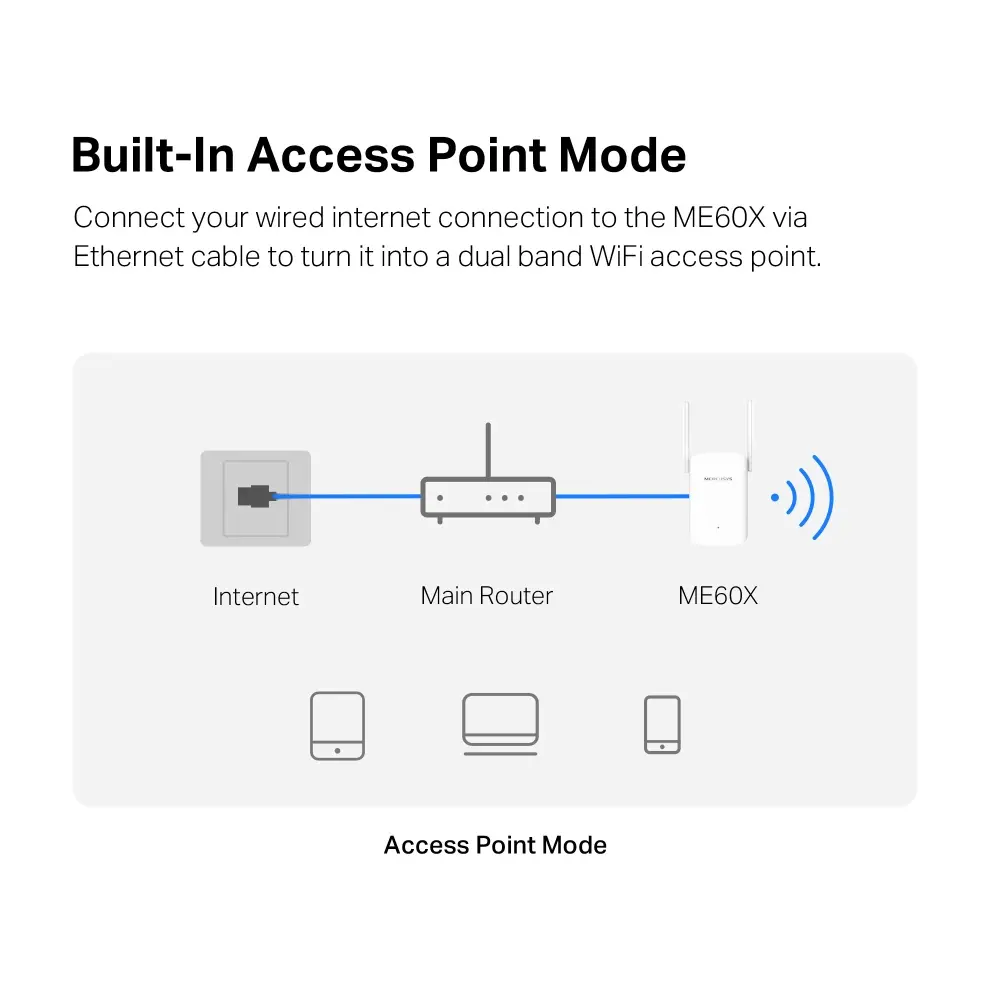

This network repeater features dual-band operation providing up to 1201 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band. Equipped with Wi-Fi 6 technology, it enhances overall network performance and capacity. The inclusion of a gigabit Ethernet port allows for fast wired connections for desktop computers, smart televisions, and gaming consoles. Adaptive Path Selection and High Speed Mode automatically optimize connection paths to maintain top speed. Additionally, the built-in access point mode transforms the device into a dual-band wireless access point when connected via an Ethernet cable.

Suitable for

• Expanding wireless coverage in large homes or multi-story buildings
• Eliminating Wi-Fi dead zones in hard-to-reach areas
• Connecting wired devices such as game consoles and smart TVs via Ethernet
• Enabling seamless HD video streaming and online gaming
• Setting up a whole-home mesh network using EasyMesh compatibility

This device may not be suitable for very small studio apartments where the main router already provides complete coverage in every corner without signal degradation. It is also not designed to function as a standalone primary router without an existing internet source or router setup.

Key specifications

• Network repeater type with dual-band support at 2.4 GHz and 5 GHz
• Data transfer rate up to 1000 Mbit/s and wireless speeds up to 1500 Mbps
• Supported networking standards include IEEE 802.11a, 802.11b, 802.11g, Wi-Fi 4, Wi-Fi 5, and Wi-Fi 6
• 10/100/1000Base-T(X) Ethernet LAN port
• Typical power consumption of 10 W
• Dimensions: 84.7 mm width, 39 mm depth, 112 mm height
• Color: White

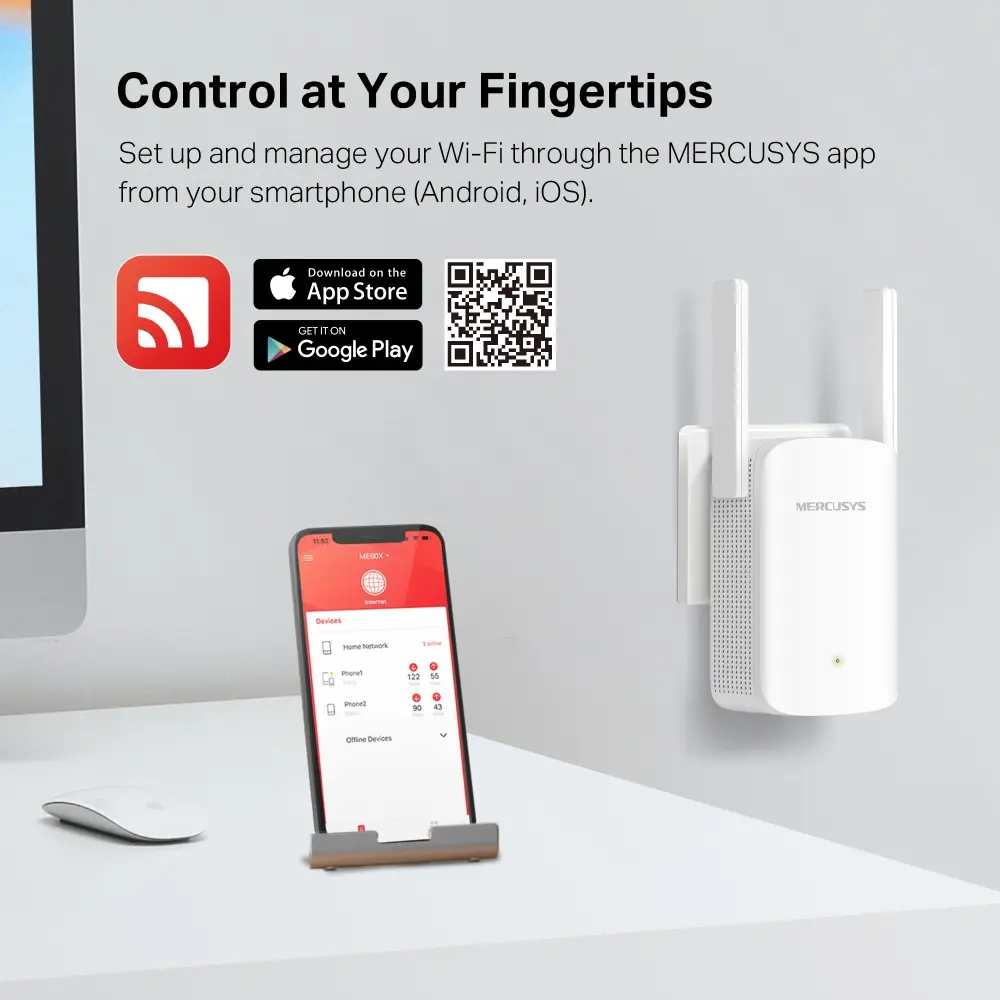

To use the device, plug it into a power outlet near your existing wireless router and press the WPS button on both units for quick pairing. Alternatively, initial setup and network management can be performed using the mobile application available for iOS and Android devices. Once configured, reposition the repeater between your router and the area with weak signal coverage to achieve optimal performance.

What to consider before purchase

• Compatibility with your current wireless router and internet service provider equipment
• Physical placement options and availability of power outlets between the router and the target coverage area
• Whether your network requires a wireless range extender or a wired access point setup
• Support for mobile application management using a compatible smartphone

Usage recommendations: Place the network repeater in an open area halfway between your main router and the zone with poor reception to ensure a strong input signal and maximum coverage extension. Avoid placing the device near large metal objects, thick concrete walls, or appliances that generate electromagnetic interference.
