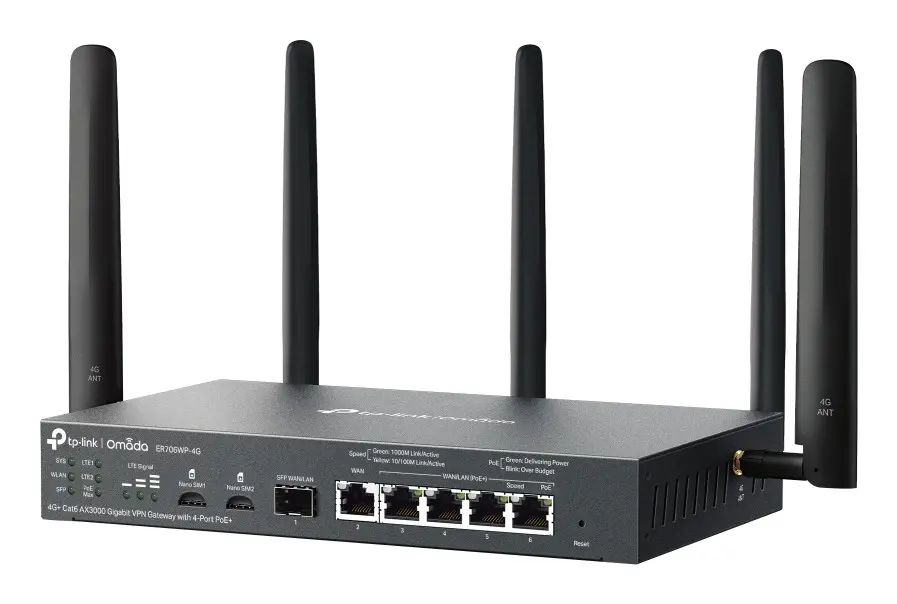

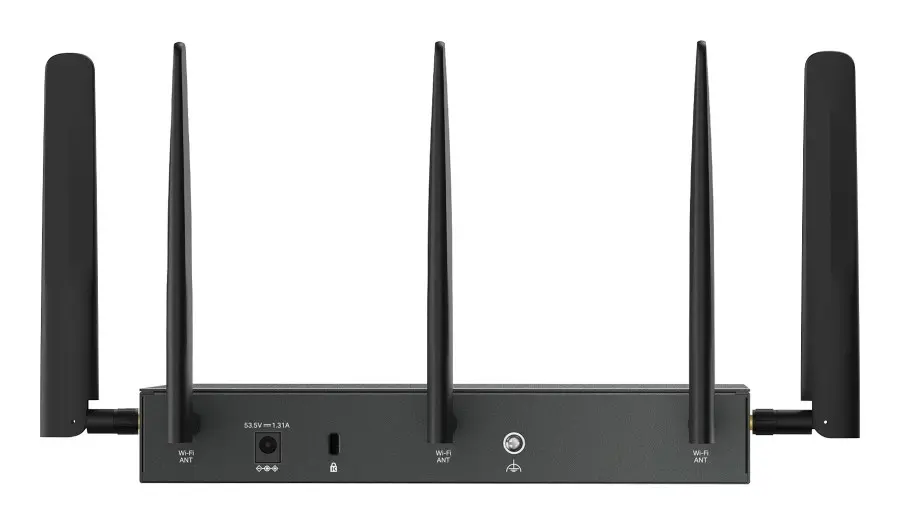

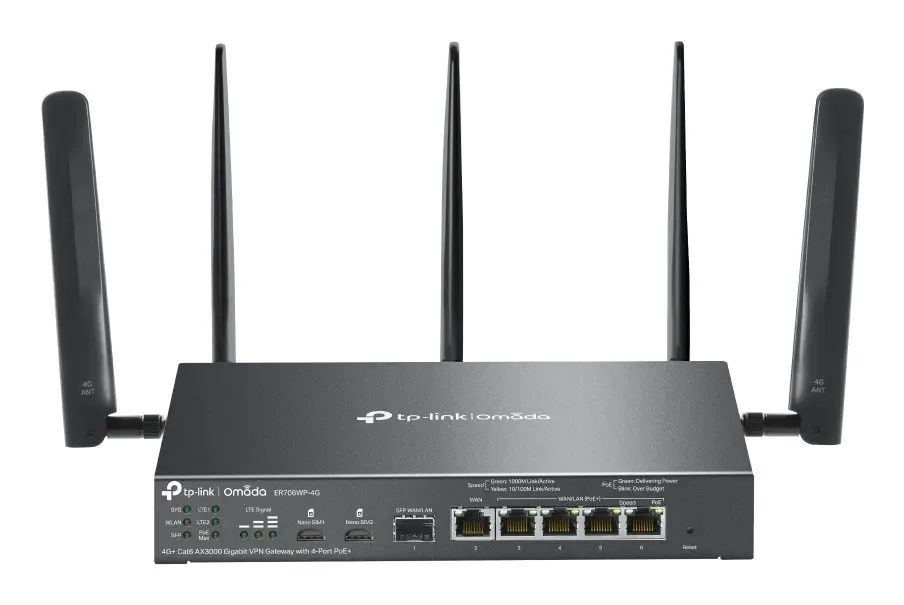

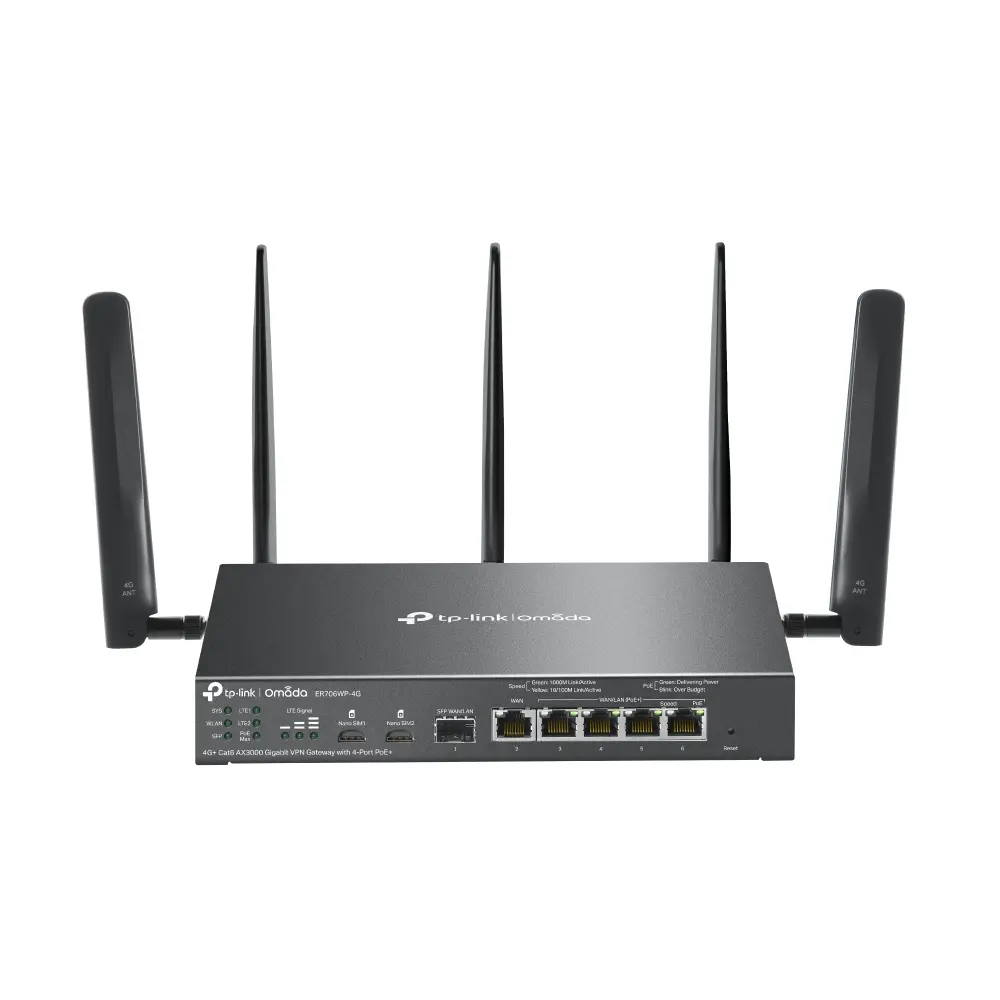

Wireless Router TP-Link ER706WP-4G Dual-band Gigabit Ethernet

Ethernet LAN: An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.

Yes

Modulation: Modulation is the process of varying one or more properties of a periodic waveform, called the carrier signal (High Frequency Signal), with a modulating signal which typically contains information to be transmitted. The aim of digital modulation is to transfer a digital bit stream over an analog bandpass channel, for example over the public switched telephone network (where a bandpass filter limits the frequency range to between 300 and 3400 Hz), or over a limited radio frequency band. The aim of analog modulation is to transfer an analog baseband (or lowpass) signal, for example an audio signal or TV signal, over an analog bandpass channel at a different frequency, for example over a limited radio frequency band or a cable TV network channel.

OFDMA

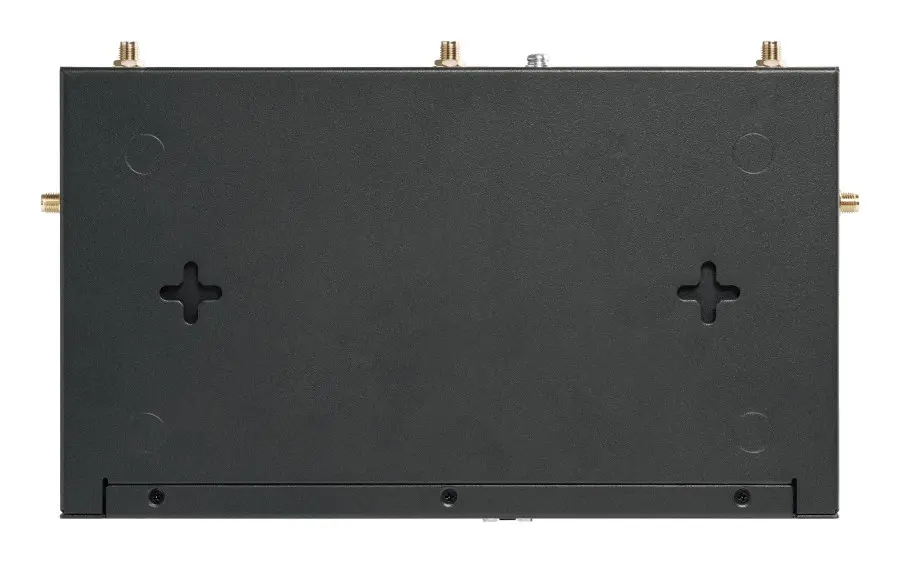

Wall mountable: The product can be mounted on (attached to ) a wall.

Yes

Product colour: The colour e.g. red, blue, green, black, white.

Black

Short Message Service (SMS):

No

Power over Ethernet (PoE): The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.

Yes

NAT functionality:

DHCP, PPPoE, L2TP, PPTP

Network address translation (NAT):

Yes

Dual SIM support: Two SIM cards can be used in the phone.

Yes

Power source type: What the power source is.

PoE, DC

SIM card type:

NanoSIM

Antenna included: An antenna (aerial) is built into the product or comes with it.

Yes

Product type: The sub-category of the product.

Desktop/pole router

4G bands supported:

3500, 3400, 2600, 2500, 2400, 3600, 2300, 2000, 1900, 1800, 1700, 800, 850, 900, 1500, 3700

WAN connection type:

RJ-45

USB port: The device features a socket into which a USB cable can be plugged.

Yes

Filtering:

Yes

Ethernet LAN interface type: The characteristics of the Ethernet LAN interface.

Gigabit Ethernet

DSL WAN: Whether or not the product features a DSL WAN (Wide Area Network) connection option.

Yes

Ethernet WAN:

Yes

3G/4G USB modem compatibility:

Yes

WLAN data transfer rate (max):

300 Mbit/s

SSID-based VLAN assignment:

Yes

VPN Passthrough:

Yes

Antenna direction type:

Directional

MU-MIMO technology:

Yes

Intelligent Mesh technology:

Yes

Weight & dimensions

Height: The measurement of the product from head to foot or from base to top.

35 mm

Depth: The distance from the front to the back of something.

131 mm

Width: The measurement or extent of something from side to side.

226 mm

Operational conditions

Storage relative humidity (H-H):

5 - 90

Operating relative humidity (H-H):

10 - 90

Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.

-40 - 70

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

0 - 40

Storage

Flash memory:

256 MB

Ports & interfaces

Ethernet LAN data rates: The different speed levels of the Ethernet LAN connection.

1000, 100, 10

Ethernet LAN (RJ-45) ports: Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

5

Management features

Web-based management: Using a website/web application to manage something.

Yes

URL filtering:

Yes

LED indicators:

LTE, WLAN, System, Status, Power

Security

VPN support:

IPsec VPN PPTP VPN L2TP VPN OpenVPN WireGuard VPN

Security algorithms: Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.

WPA3-Personal, WPA2, WPA, SNMPv3, SNMPv2, SNMP, IPSec

Network

DHCP client: Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network.

Yes

DHCP server: A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one.

Yes

Port forwarding:

Yes

Wi-Fi band: The frequency bands the product features.

Dual-band (2.4 GHz / 5 GHz)

Dynamic DNS (DDNS):

Yes

Static route:

Yes

VPN tunnels quantity:

50

Performance

Reset button:

Yes

Antenna gain level (max): Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction.

4.5 dBi

Antennas quantity:

5

Detachable antenna(s):

Yes

SIM card slot: Whether the device features a SIM card slot.

Yes

Mobile network generation:

4G

Antenna design:

External

Internal memory: The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.

512 MB

Internal memory type: The type of internal memory such as RAM, GDDR5.

DDR4
